UT240-610
POWER + 10 PORTS + AV DISTRIBUTION PLATE, 1U
- 1U high, full rack wide
- Black finish
- Three AC sockets (12 amps total)
- 3 ft. input power cable
- Ten (10) Keystone type ports
- All ports are XLR compatible
- Eight blank covers for unused ports
- Two port USB charger with US plug
- One 2.0 charging USB A/A Keystone couplers
- One 2.0 charging USB C/A Keystone cable
- One USB A-M to USB A-M (1 ft.) cable
- Custom labels available with additional cost
- Rack mounting hardware included
- UL listed
UT240-610 Overview
The UT240-610 is a 1U high power/charging rack-mounted plate with customizable ports. The plate offers three power sockets with a total capacity of 12A. Two are located on the front and one on the back with a single power cord. The UT240-610 features two USB charging ports that are easily set up using the included dual-output USB charger (5V, total 3.4A) and provided cables. Eight customizable ports support XLR connectors or Keystone snap-in adapters. Also included are a repositionable labeling system with 20 blank labels, and 10-32 screws and washers for easy rack mounting.
Summary

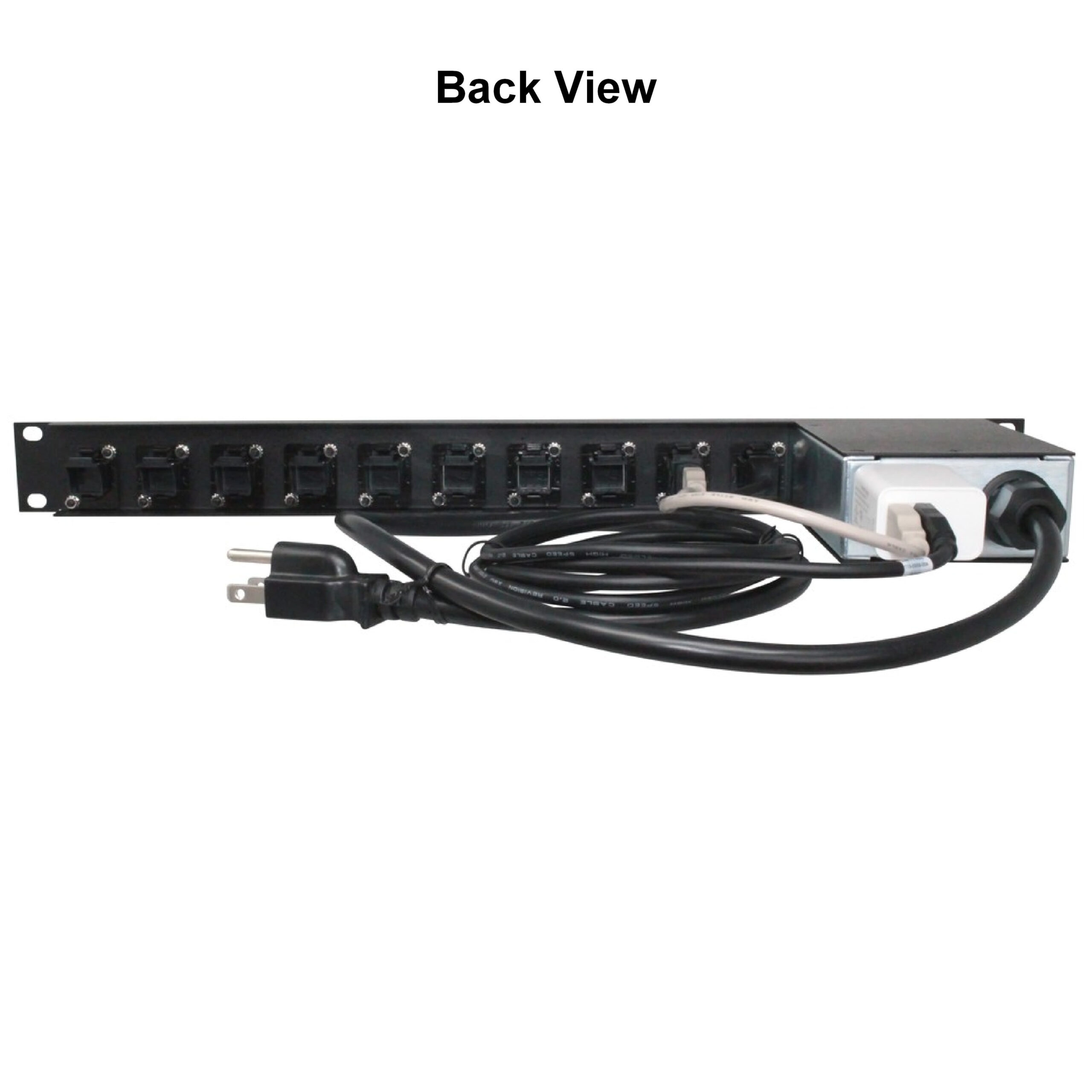

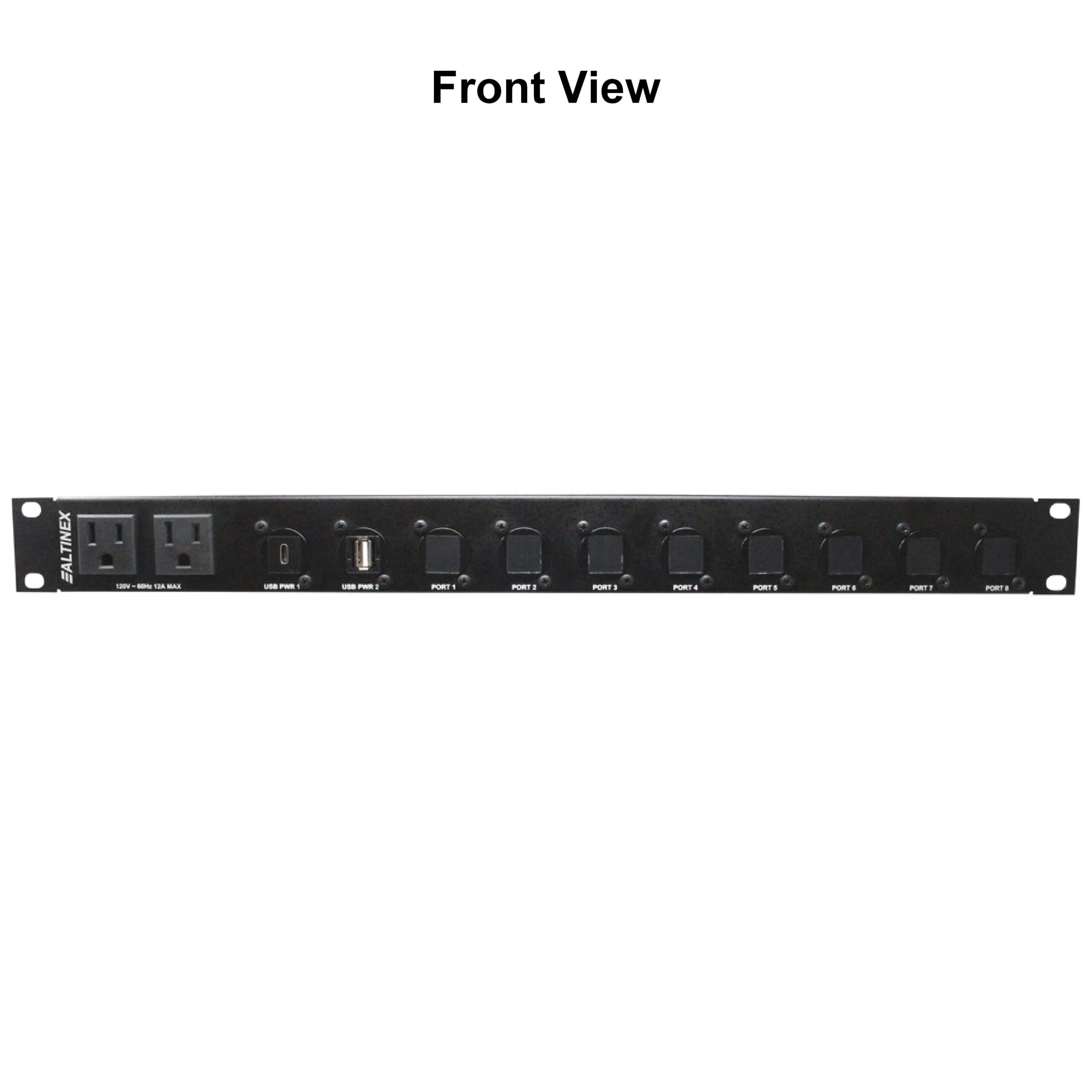

The UT240-610 is a 1U high full rack wide power/charging plate for AV racks. There are three power sockets providing up to 12A total power. Two power sockets are located on the front side of plate for convenient access. One power socket and a single power cord are located on the back side of the plate.

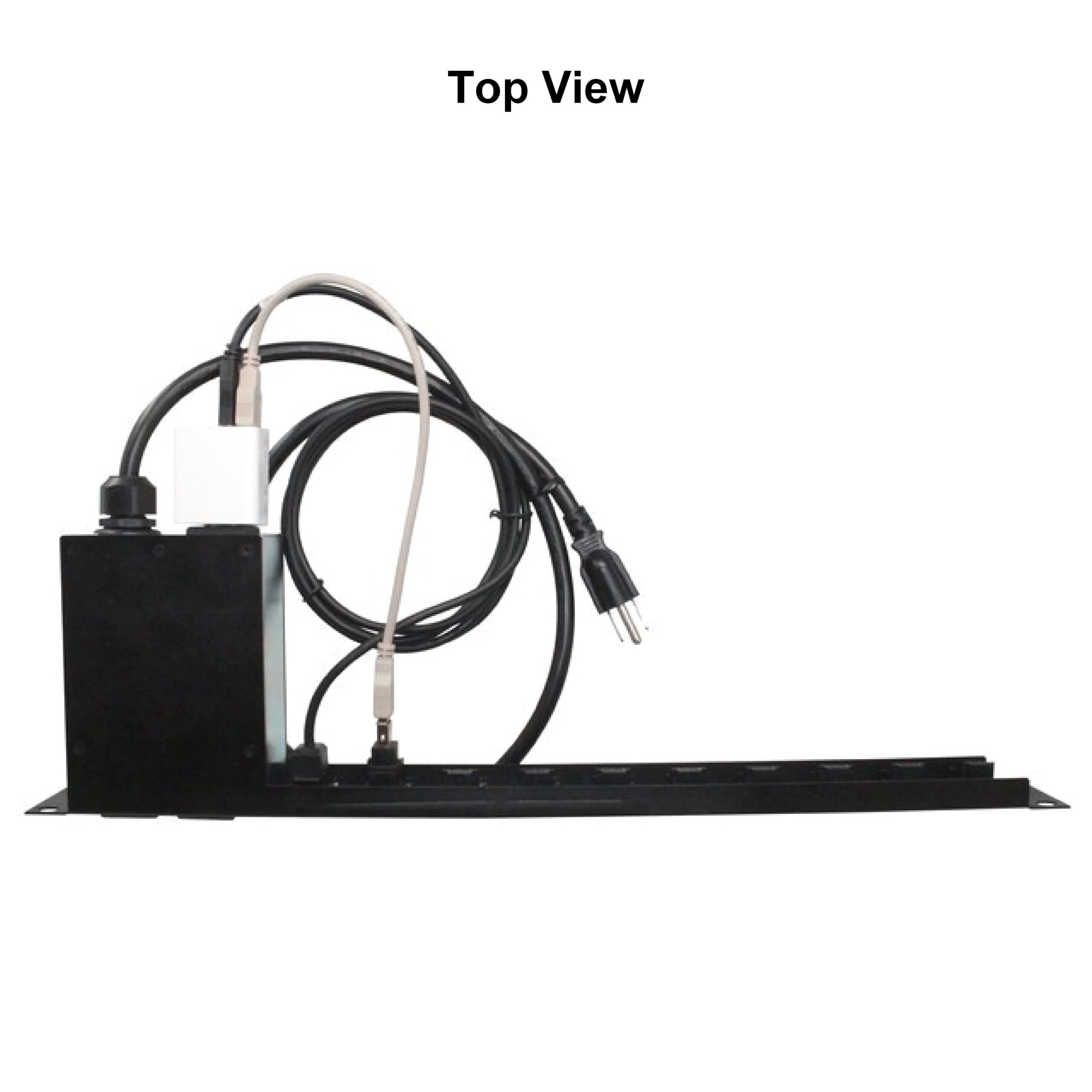

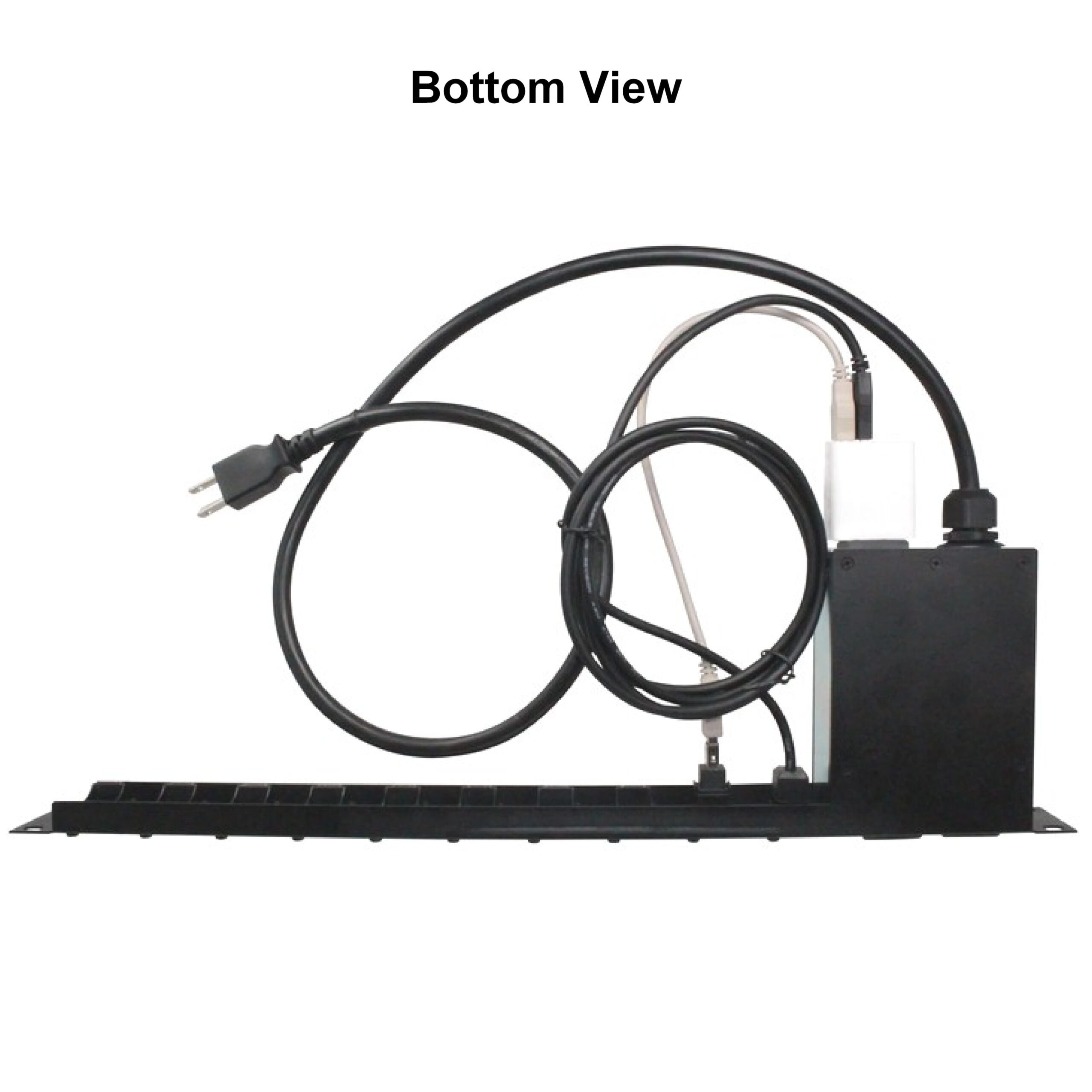

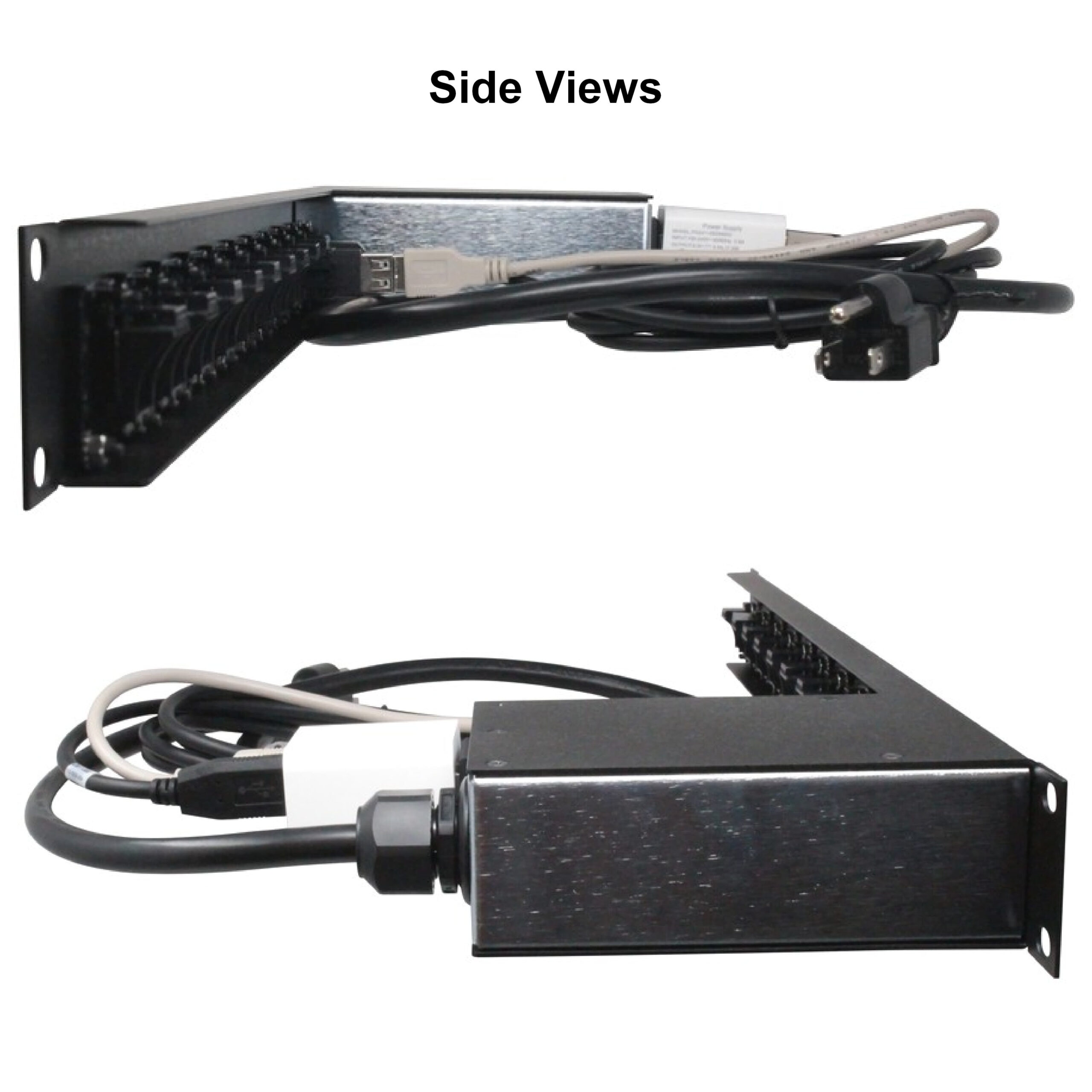

Two of the ten customizable ports are designed as USB charging ports. Just install the dual output USB charger (5V, Total 3.4A) provided with the unit into the rear AC socket. Then, connect USB 2.0 A type coupler to the USB charger using the USB cable (USB A-M to USB-M) provided with the unit. And connect USB C-A cable from the second USB port to the charger.
All eight ports can be easily customized in the field using different types of connectors and/or cables. Simply remove the blank covers and then install Keystone ports. All port openings are compatible with XLR type connectors or Keystone snap-in connectors.

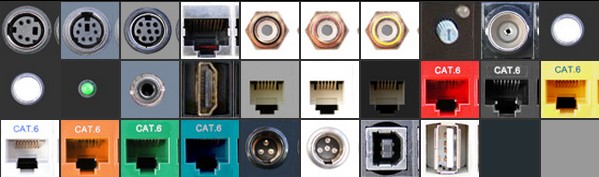

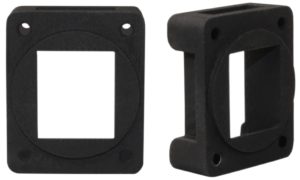

For XLR connectors, remove a keystone adapter connector installed in one the port openings. To do this, remove M3 nuts and screws (two per each port) from the back side of the plate. The removed hardware can be used for installation of XLR connectors.
The UT240-610’s unique design allows users to reposition or remove custom labels. There are 20 blank labels provided with the unit. Write the name of your custom port on the label. Apply labels above the snap-in ports. Preprinted custom labels are available at an additional cost.
For your convenience, UT240-610 accessories include 4 size 10-32 screws and 4 size 10-32 washers for rack mounting the unit.
Technical Specifications
Table 1 UT240-610 General
|
Features/Description |
UT240-610 |
|
Pass-Through (front to back) |
|
| AC Power | 3x NEMA Receptacle to plug 3 ft (0.9 m) cord |
| USB | 2.0 USB bulkhead, F-F connector (1 pc) |
| Audio/Video | Eight empty ports for custom cable/connectors |
| UL/CUL Listed | File E254082 |
|
Accessories Included |
|
|---|---|
| USB Wall Adapter | Dual USB out charger (5V, Total 3.4A) |
| USB Cable | 2.0 USB A-M to A-M (1 ft) (1pc) 2.0 USB C-F to USB A-M Keystone Type (6 ft) (1pc) |
| Custom Label | Blank labels |
| Cover | Blank black snap-in cover (8pcs) |
| Mounting Hardware | 10-32 Screws (4pcs) #10 Washer (4pcs) |
Table 2 UT240-610 Mechanical
|
MECHANICAL |
UT240-610 Series |
| Material | Steel |
| Finish | Black |
| Dimensions (W x D x H) | 19 x 5.1 x 1.75 in (483 x 130 x 44 mm) |
| Shipping Weight | 2.1 lb. (0.95 kg) |
| T° Operating [T° Maximum] | 10°C-35°C [50°C] |
| Humidity | 90% non-condensing |
Table 3 UT240-610 Electrical
|
ELECTRICAL |
UT240-610 Series |
| Pass-Through AC | 12 A max. (total through all 3 receptacles) |

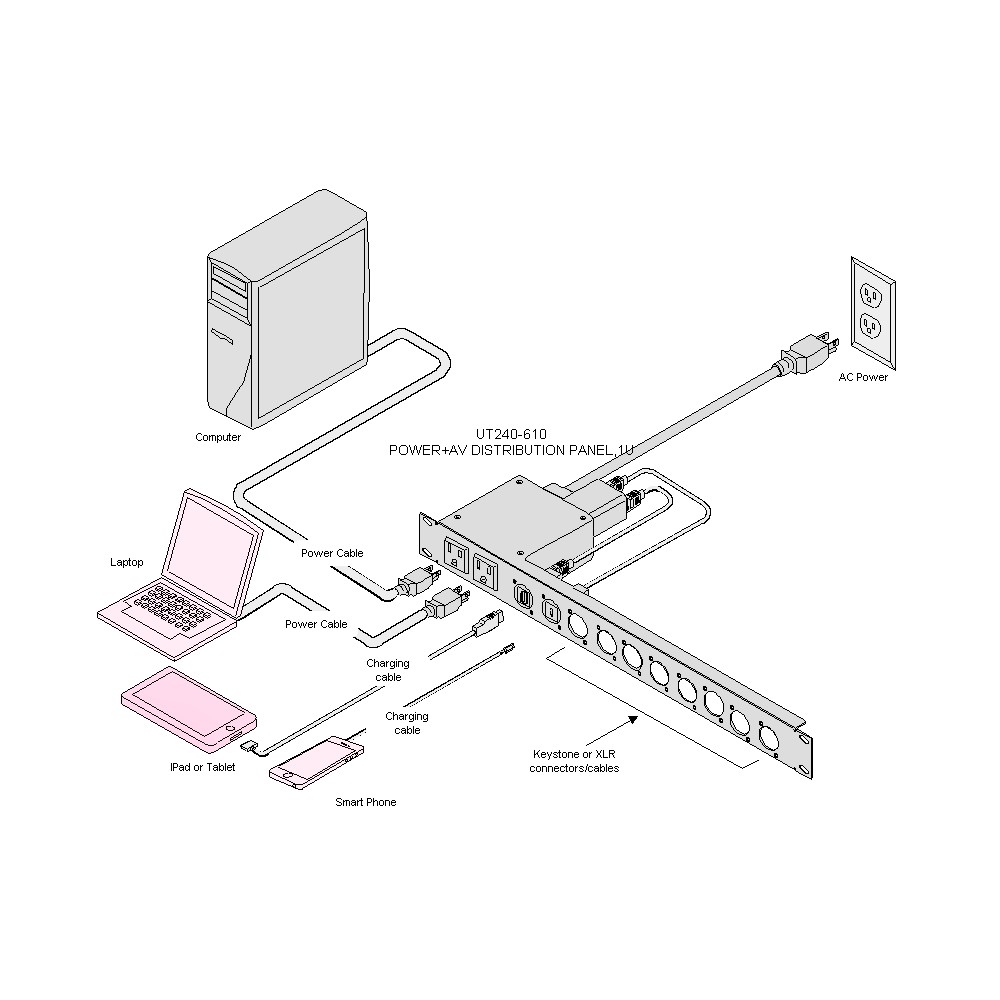

Application Diagram

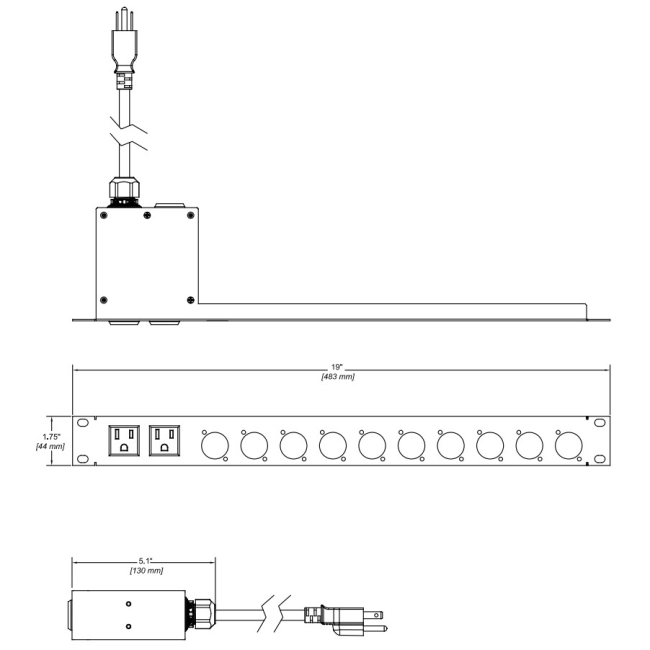

Dimensions
