UT240-328S
UNDER TABLE. HYBRID. HDMI, VGA, AUDIO, RJ45, POWER
- Easily installs under a table or inside a podium
- Convenient access to power, AV and network connectors
- Wide range of snap-in connectors available
- Single power cord
- Table cutting is not required
- Low profile design
- UL listed
- Comparable to UT240-278 but with Hybrid (Analog and Digital) Connectivity
- 12 Amp current capability
- As seen in the Altinex Table Top Interconnect Guide
- Ten year warranty
UT240-328S Overview
The UT240-328S is a next generation under table interconnect unit providing users a Hybrid connection station to Analog and Digital AV equipment and two 12 amp power sockets that can be used to power multiple laptops or other devices.
Summary
The UT240-328S is an under table multimedia interconnect unit designed for mounting against a surface, usually under a table or inside a podium.
The front of the UT240-328S offers the following pass-through connectors:
- 2 standard AC receptacles
- 1 gender changer for HDMI® Digital Video (F/F)
- 1 gender changer for VGA Video
- 2 3.5mm Audio Jacks for Computer/MP3 Audio
- 2 Network (RJ-45) snap-in connectors
- 2 additional (blanked out) snap in locations. A wide range of snap in connectors are available from Altinex
The Under Table series from ALTINEX offer a wide variety of options for routing computer audiovisual signals, network connections, and AC power in a cost-effective way. They are easily installed under a table, inside a lectern or on the side of a lectern or a table leg. For a simple and cost effective installation, the UT Series from Altinex provides unparalleled ease of use and flexibility.
ALTINEX products are protected by the following patents: D581871, D581361, D580865, D579875, D579874, D583762, D579873, D580358, D585379, D581360, D579415, D579872, D581359, D580357
Technical Specifications
|
Features/Description |
UT240-300 Series |
Pass-Through (front to back) |
|
| AC Power | NEMA Receptacle to plug 9-10 ft. (2.7-3.0 m) cord |
| Audio, Stereo Cable | 3.5 mm F-F 8 in (200 mm) cable |
| Audio, Stereo TB | 3.5 mm F to Term Block |
| Audio, Stereo RCA | RCA bulkhead F-F |
| Network (CAT-6) | Snap-in RJ-45 connector (no cable) |
| Modem/phone | Snap-in RJ-11 connector (no cable) |
| Video, Analog | 15-pin HD bulkhead F-F |
| Video, Digital | 19-pin HDMI bulkhead, F-F |
| Video | BNC bulkhead F-F |
| Communication | USB Type A F-F |
| UT240-328S (U.S.) | CAT-6 (RJ-45) F (2) Digital Vid (HDMI) F-F (1) AC Power (2) 15-pin HD F-F (1) 3.5 mm Stereo Cable (2) |
|
Mechanical |
UT240-300 Series |
| Dimensions | See Application Diagrams |
| Maximum Shipping Weight | 3.5 lb. (1.6 kg) |
| T° Operating [T° Maximum] | 10°C-35°C [50°C] |
| Humidity | 90% non-condensing |
|
Electrical |
UT240-300 Series |
| Pass-Through Signals | All standard audio, video, network, and modern signals are acceptable |
| Pass-Through AC | 12 A, 1440 W max. (total through all receptacles) |

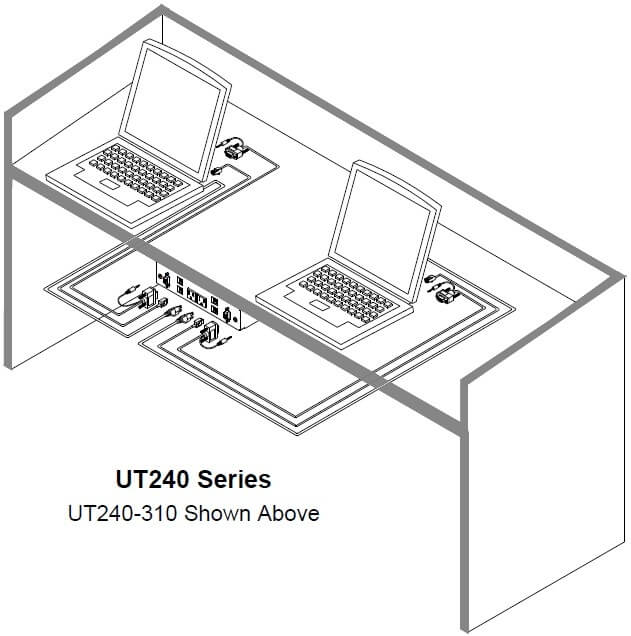

Application Diagram

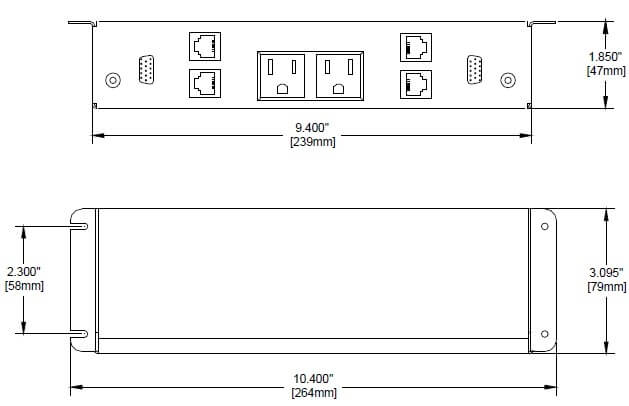

Dimensions
