TNP530

TILT ’N PLUG, US POWER, 2 RETRACT: VGA+HDMI, AUDIO, RJ45, 2XUSB

  • Leaf-spring for long service life (10 years warranty)
  • 2 AC sockets, 12 Amp
  • Pop-up dampening for smooth operation
  • Simple, drop-in installation
  • Includes convenient, easy to install cable retractors for HDMI and VGA cables
  • Standard high –quality black matte finish
  • UL/cUL listed
  • UL listed for installation in kitchens, bathrooms and countertops (US only)
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • Ten year warranty
SKU: TNP530 Category:

  TNP530 Overview

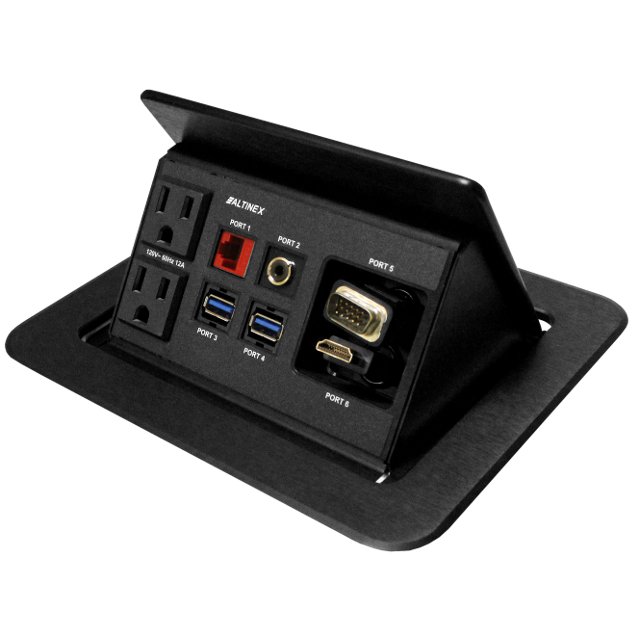

The TNP530 is a pre-configured, compact hybrid interconnect solution with retractable Digital (HDMI) and Analog (VGA) cables, along with snap-in ports for audio, network and USB connectors. It is designed for mounting into tables, podiums, or other furniture as part of a presentation system.

  Summary

The TNP530 is a compact interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system. Inputs are accessed by pushing down on the top cover allowing TNP530 to “tilt” open. The inputs are hidden by pressing down on the top cover until the latching mechanism engages. In the closed position, the top cover lays almost flush with the tabletop.

The TNP530 is a “hybrid package” that covers the needs of many users and includes the following connectivity:

  • 2pcs. – U.S. power receptacles (12 Amps)
  • 1pc. – Digital video –HDMI retract (RT300-125)
  • 1pc. – Computer video (15-pin HD)- VGA retract (RT300-121)
  • 1pc. – Audio (3.5mm) (CM11316)
  • 1pc. – Network (RJ-45), (CM11351)
  • 2pcs. – USB (Type A) (CM11370)

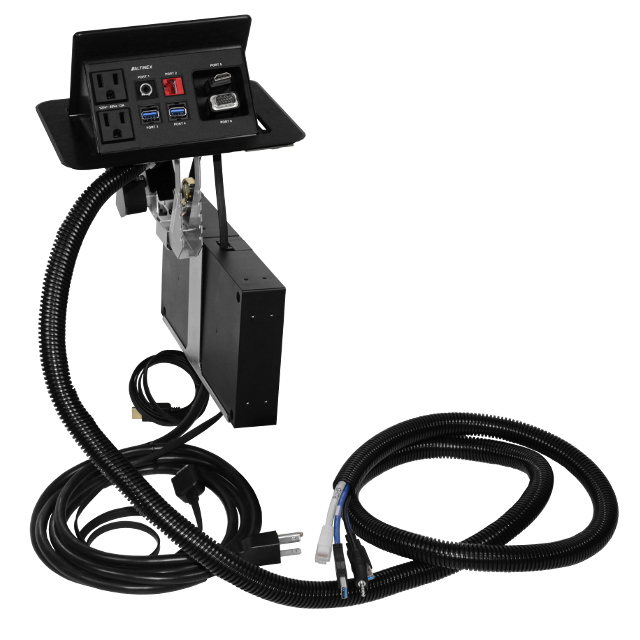

tnp530-cables



All connectors are passive and have 6 ft (2m) cables that pass through to the bottom of unit. HDMI and VGA retracts offers 4 ft of retract cable and 4 ft fixed under table cable.



  Videos

  Technical Specifications

FEATURES/DESCRIPTION

TNP530

Audio, Communication

6 ft. (2 m)

Computer Audio3.5mm F-M (1)
NetworkCAT-6 (RJ-45) F-M (1)
USBType A F-M (2)
Video4 ft (1.2m) retract above table
4 ft (1.2m) fixed cable under table
Video (VGA)15-pin HD M-M (1)
Video (HDMI)HDMI M-M (1)
Pass-Through AC Power9-10 ft. (2.7-3.0 m)
120 VAC, 60 Hz, 12 ANEMA F-M

Agency Approval

UL/C-UL ListedFile E254082

Accessories Included

Hardware-Mounting screws/brackets
-Cable clamps/screws
-Fastener Tool
-Retracts
-Mounting bracket/screws

Mechanical (TNP530)

Max. Table Thickness2.50 in (64 mm)
Height, opened12.5 in (318 mm)
Width9.7 in (246 mm)
Depth6.53 in (166 mm)
Finish

TNP530:
TNP530S:


Matte Black
Brushed Aluminum (Stain Proof Coating)
Weight (approx.)

TNP530


5.1 lb (2.31 kg)
Shipping Weight6.2 lb (2.81 kg)
T° Operating10°C-35°C
T° Maximum40°C
Humidity90% non-condensing

Electrical (Single Outlet Panel) for TNP530

Power Rating (pass-through AC power)120VAC, 60Hz, 12A total current

  Application Diagram

  Dimensions
