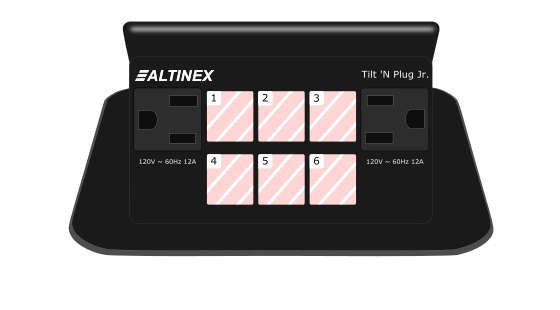

TNP327C
TILT ‘N PLUG TABLETOP INTERCONNECT BOX, 2 PWR, 6 SNAP-IN
- Fully customizable
- Dual AC sockets rated for up to 12A from one power cord
- Simple, drop-in installation
- Gas spring for smooth operation
- UL listed
- 8-10 day lead time (5 pieces or less)
- The price of the unit includes all connectors
TNP327C Overview
The TNP327C is a compact, customizable interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system.
Summary
The TNP327C is a compact, customizable interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system. Inputs are accessed by pushing down on the top cover, allowing the unit to tilt open. The inputs are hidden by pressing down on the top cover until the latching mechanism engages. In the closed position, the top cover lays almost flush with the tabletop.

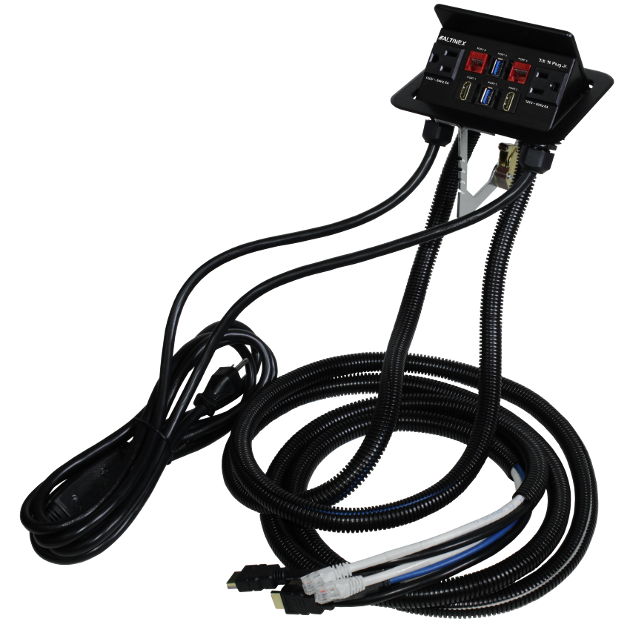

This tabletop solution offers up to dual 12 Amps from the AC sockets with six snap ins to be used as computer video/audio, HDMI, network, and USB pass through cables. The passive cables are 6ft and are bundled together for organized cable management. The power cable is split to deliver power to both outlets on the tabletop from one AC plug.
The TNP327C is one of many solutions available in the TNP product line that can be customized with many different connectivity options by selecting the “Customize” button above.
Technical Specifications
Table 1: TNP327 General Specifications
|
Features/Description |
TNP327/327C |
| Pass-Through AC Power | 9ft. (3.0 m) |
| 120 VAC,60 Hz, 12A | NEMA Socket-Plug |
Agency Approval |
|
| UL/C-UL Listed | File E254082 |
| Audio, Video, Communication | 6 ft. (2 m) |
| HDMI | HDMI F-M (2) |
| Network | CAT-6 (RJ-45) F-M (2) |
| USB | USB Type A F-M (2) |
Accessories Included |
|
| Hardware | -Mounting screws/brackets -Cable clamps/screws |
Table 2: TNP327 Mechanical Specifications
|
Mechanical |
TNP327 |
| Max. Table Thickness | 2.25 in (57 mm) |
| Height, opened | 6.4 in (163 mm) |
| Width | 5.7 in (145 mm) |
| Depth | 5.2 in (132 mm) |
| Finish Standard: | Matte Black |
| Weight (approx.) | 2.75 lb. (1.25 kg) |
| Shipping Weight | 5.5 lb. (2.5 kg) |
| T° Operating | 10°C - 35°C |
| T° Maximum | 40°C |
| Humidity | 90° non-condensing |
Table 3: TNP327 Electrical Specifications
|
Electrical |
TNP327 |
| Power Rating (pass-through AC power) | 120VAC, 60Hz, Up to 12A total |
Application Diagram
Dimensions
