TNP150C

FACTORY CONFIGURED, CUSTOMIZED TILT ‘N PLUG JR. 2+2

SKU: TNP150C

TNP150C Overview

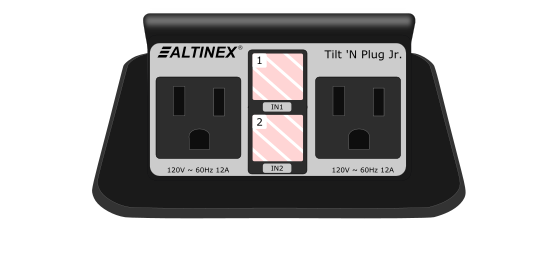

The Tilt ‘N Plug Jr. model TNP150C is one member of compact interconnect solutions designed for installation into a table in a presentation system. The TNP150C provides a single input plate with cutouts for 2 snap-in connectors. It also provides an AC Power connection in 9-10 ft (2.7-3.0m) suitable for use throughout the U.S. and Canada.

Summary

The Tilt ‘N Plug Jr. model TNP150C is one member of compact interconnect solutions designed for installation into a table in a presentation system. The TNP150C provides access to computer network and AC power connections when needed, and hides them when not.



The input plate on the TNP150C is accessed by pushing down on the top panel, which tilts into view with help from a pneumatic spring inside. Once opened, the input plate remains securely in place. The input plate is hidden by pressing down on the top panel, which closes the lid. In its closed position, the top panel lies flush with the table top, held in place by a mechanical latching mechanism.



The TNP150C provides a single input plate with cutouts for 2 snap-in connectors. It also provides an AC Power connection in 9-10 ft (2.7-3.0m) suitable for use throughout the U.S. and Canada.



All Tilt ‘N Plug Jr. Signal Management Solutions come with a standard top and bezel offering a high quality matte black finish. Other finishes or special bezel configurations are available upon request.



The network signals are passed through the unit with connection to the network system being made under the table. No signal processing or buffering takes place.



ALTINEX products are protected by the following patents:

6802577, D437827, D556139, D457137, D466868, D455716, D455123, D454541, D449819

Technical Specifications

GENERAL

ELECTRICAL

AC Power: NEMA 5-15 (2 female to 1 male) Dual Outlet Panel Power Rating (pass-through AC power): 110VAC60Hz,12A
Snap-in cutouts: 2
UL Listed: File E254082

MECHANICAL

ACCESSORIES

AC Power Cord: 10ft (3m) Included: Mounting screws, cable clamps
Max Table Thickness: 2.25in (57mm) Replacement Gas Spring: AC401-302
Height, opened: 5.5in (140mm)
Width: 4.6in (117mm)
Depth: 4.9in (124mm)
Weight (approx.): 2.8lb (1.3kg)
Shipping Weight: 4.5lb (2.0kg)
Finish: Black or Clear Brushed Aluminum

T° Operating: 10°C-35°C

T° Maximum: 40°C
Humidity: 90% non-condensing

WARRANTY

CERTIFICATIONS
3 year warranty  UL, CUL, CE, RoHS, FCC
1 year warranty on gas-spring
