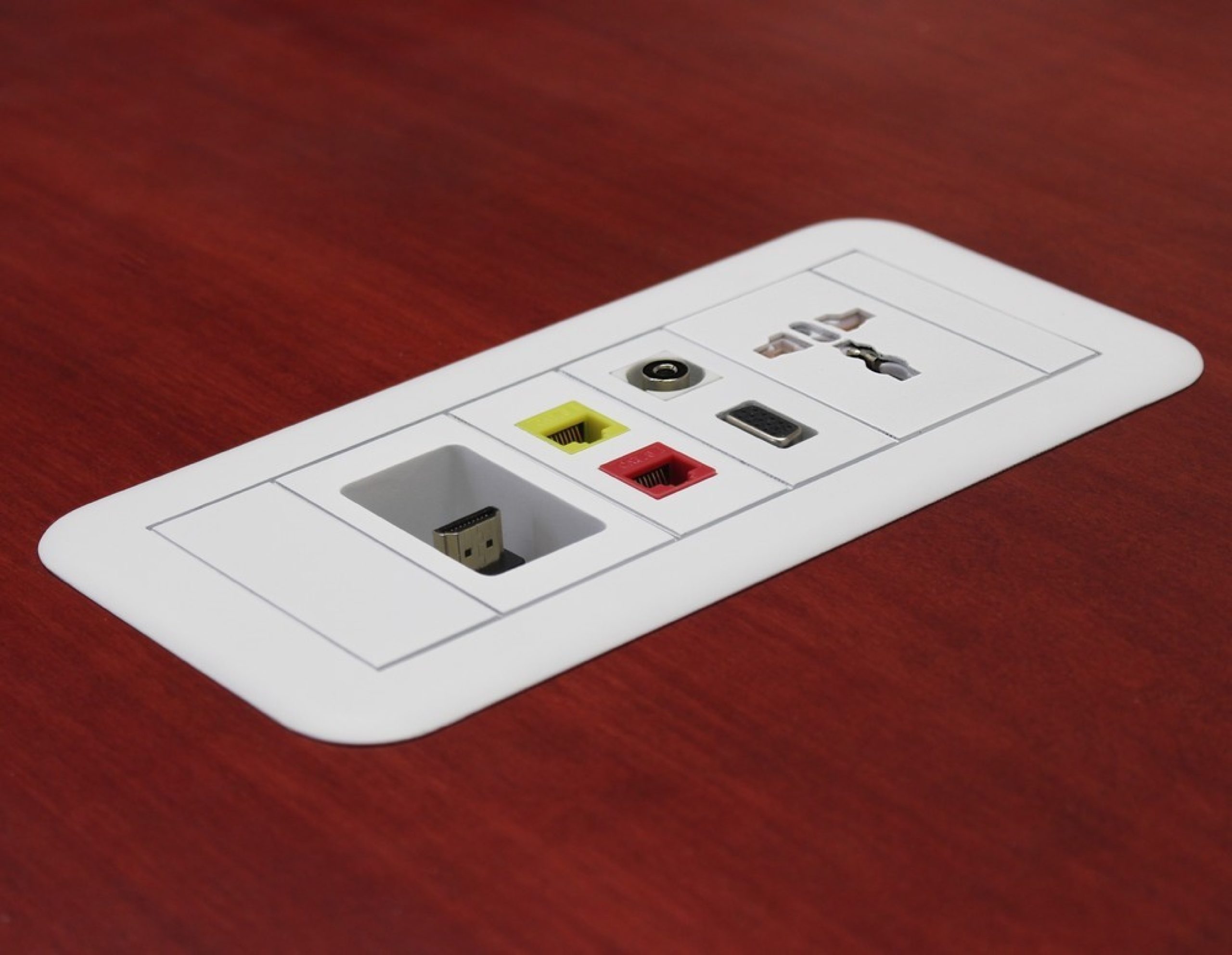

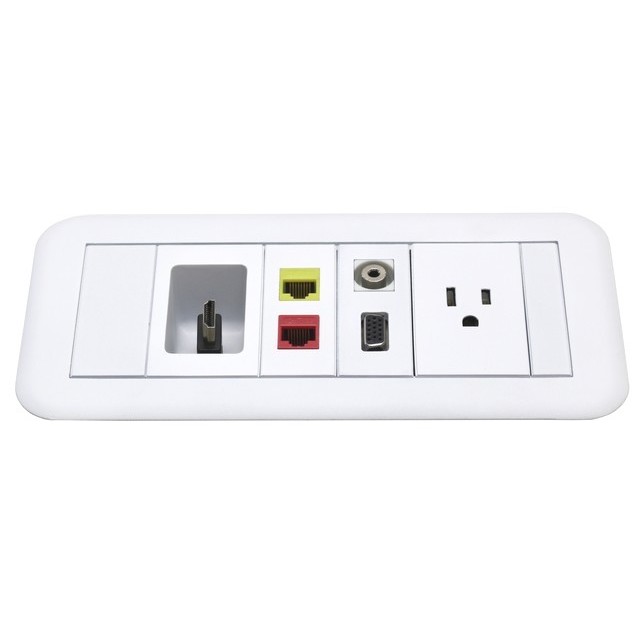

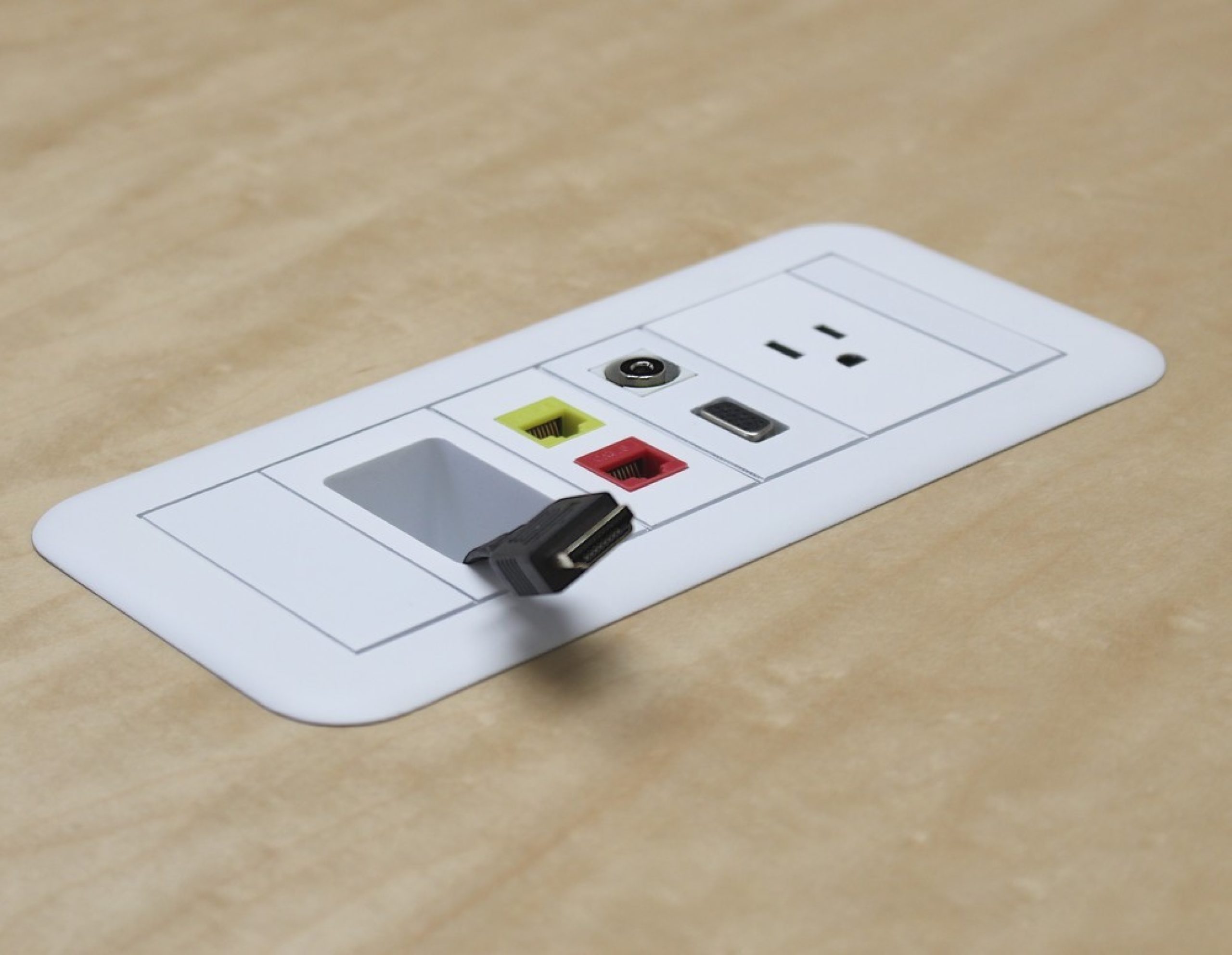

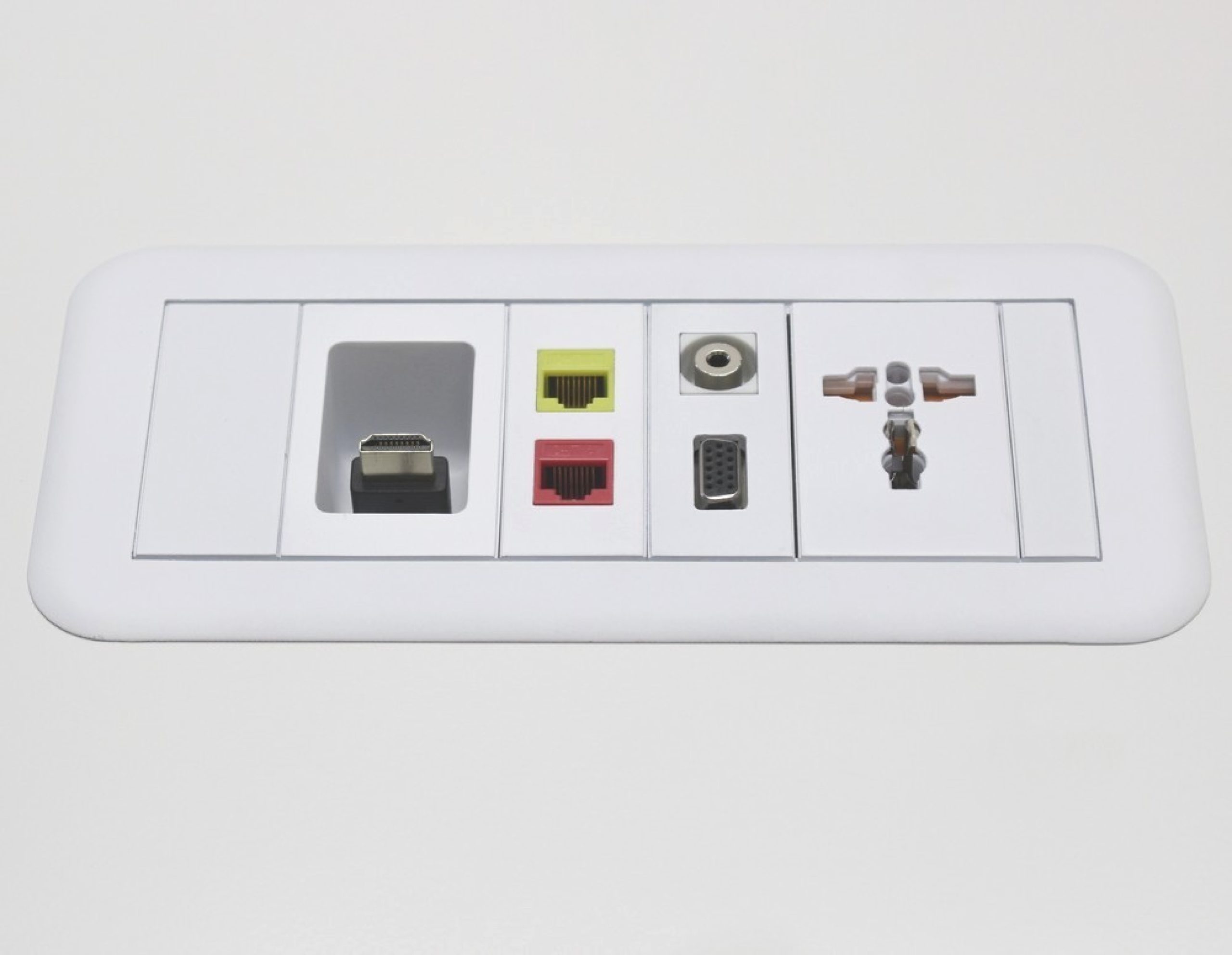

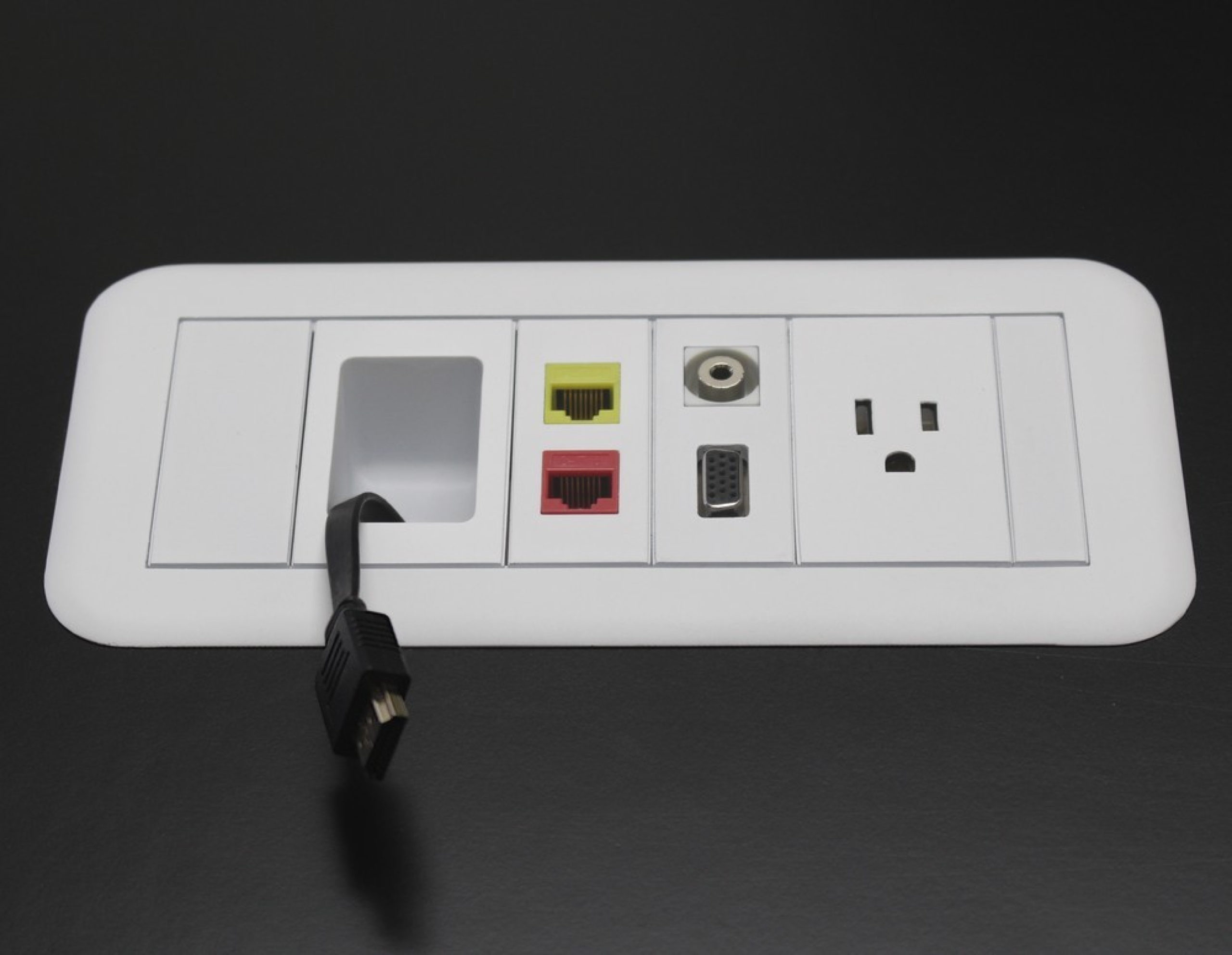

TB100-101C
CUSTOMIZABLE MODULAR UNIT – WHITE
- Customizable with any Table Buddy snap-in modules and connectors
- Price includes all connectors
- Simple, cost-effective interconnect solution
- Installs into tabletop
- Designed with dual locks that easily secures the unit to the surface without any tooling
- Convenient access to connect cables via snap-in modules
- Pre-configured unit available as TB100-101
- Also available in Black and Silver
- Downloadable cutout template available
TB100-101C Overview
The TB100-101C is a customizable interconnect unit, designed for boardroom and conference rooms. Cables for a presentation system are connected to the connectors on the snap-in modules, enabling the user easy access for connections of AC power, video, audio, and the other media sources from the top of the table.
Summary
The TB100-101C is a customizable modular interconnect unit. Unlike the pre-configured TB100-101, users can install any Table Buddy snap-in modules and connectors that best suits their connectivity needs in the TB100-101C unit.
The snap-in module options for the TB100-101C allow diverse connector configurations. These modules include combinations of audio, video, computer, and AC power connectors that provide extensive flexibility in a convenient package. The snap-in modules are flush with the surface of the unit coupler connectors, allowing cables to connect to the presentation system underneath the surface and have easy user access to connectors on the table’s surface.
The TB100-101C is designed for use with tables ranging from 0.75 inch to 1.6 inch in thickness. It comes in a standard matte white frame, while other finishes are also available: Standard silver matte color (TB100-002) and standard matte black (TB100-003).
The TB100-101C can be customized in various ways as shown:
Technical Specifications
Table 1 TB100-101 General Specifications
FEATURES/DESCRIPTION - TABLE BUDDY |
|
|---|---|
TB100-101 |
Pass-Through |
| Number of slots | Depends on customer configuration | Compatibility* |
| AC Power (United States) | TB110-X01 |
| AC Power (International) | TB110-X02 |
| Audio, Video | TB120-102, TB120-103 |
| Blank Slot Covers | TB130-101, TB130-102 and TB130-103 |
| Customizable | TB120-X01, TB120-X04 | Accessories Included |
| Mounting Hardware | Mounting brackets two types (4pcs of each) #8-1-1/2 Screws (4pcs) |
Table 2 TB100-101 Mechanical Specifications
MECHANICAL |
TB100-101 |
| Max Table Thickness | 2 in (50 mm) |
| Length | 9.5 in (241 mm) |
| Width | 4.1 in (104 mm) |
| Depth below the table | 2.3 in (59 mm) |
| Material | Plastic |
| TB100 Weight (approx.) | 0.23 lb. (0.1 kg) |
| T° Operating | 10°C-35°C |
| T° Maximum | 50°C |
| Humidity | 90% non-condensing |
| MTBF (calc.) | 40,000 hrs. |
Application Diagram
Dimensions
