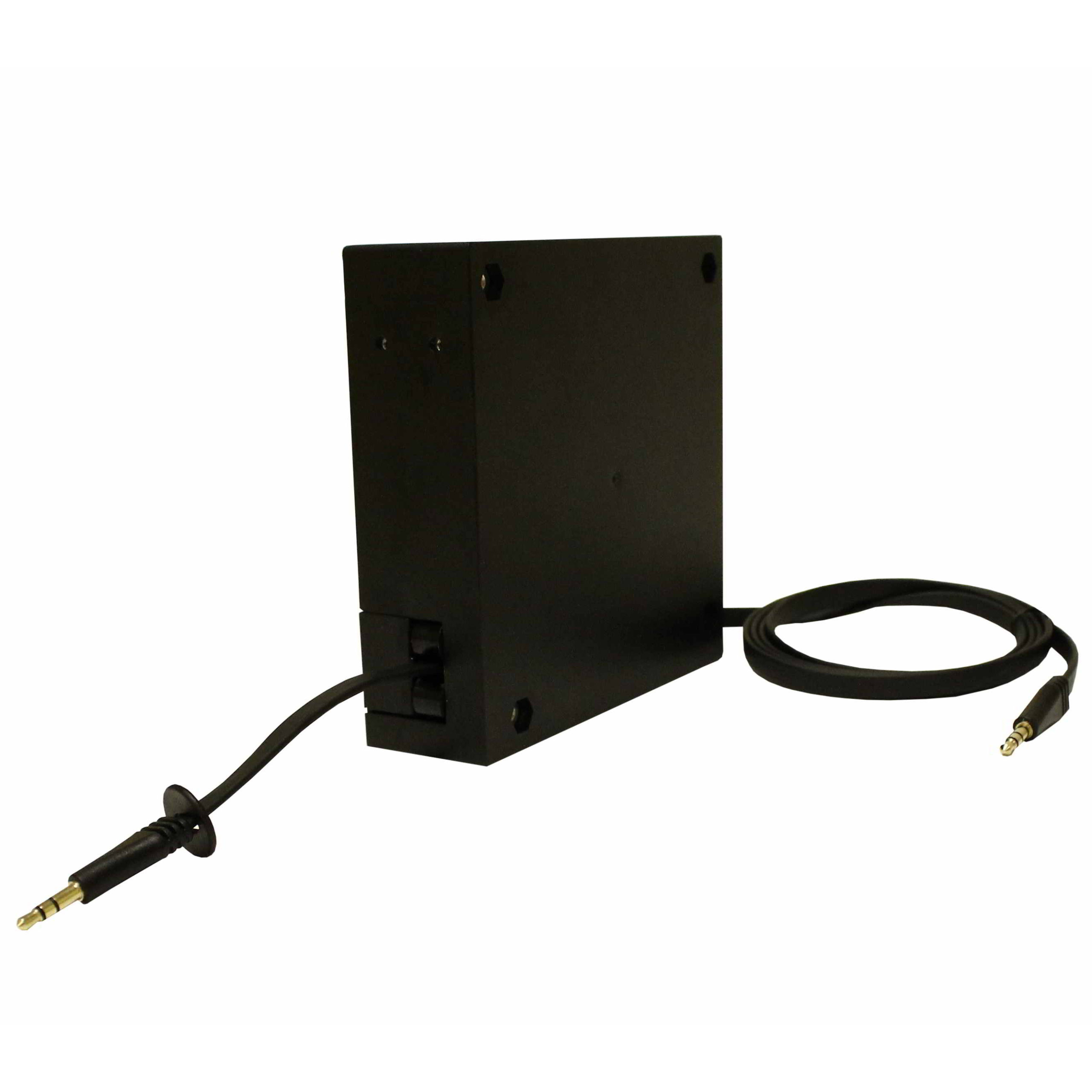

RT300-134
3.5MM (M-M) AUDIO RETRACTABLE CABLE
- Convenient, easy to install cable retraction system for CNK200 and CNK221 interconnect box and stand alone
- Simple operation for AV connectivity
- CNK200 supports four (4) MINI-ME RT300-134 units
- CNK221 supports two (2) MINI-ME RT300-134 units
- Tested to 10,000 retracts
- Mounting hardware included
- One (1) year warranty
RT300-134 Overview
The RT300-134 offers a solution for managing audio cables. The cable assembly was designed to deliver audio to a switcher or a display.
Summary
The RT300-134 offers a solution for managing audio cables. The cable assembly was designed to deliver audio to a switcher or a display. The RT300-134 has 4.0 ft of retractable cable and 4 ft of the fixed length cable. The cable and the retractor has been tested to over 10,000 extensions/retractions. The mounting hardware for securely mounting the cable retractor to the surface is provided with the RT300-134.
Videos
Technical Specifications
FEATURES/DESCRIPTION |
Inputs |
Audio | 3.5 mm stereo audio |
Outputs |
|
Audio | 3.5 mm stereo audio |
Compatibility |
|
Tabletop enclosures | CNK200 & CNK221 |
Standalone mounting | Mounting holes with 4x40 threads are provided |
Additional Accessories |
|
Mounting Hardware Included | - Mounting bracket - Mounting screws (2 pcs) |
MECHANICAL |
Dimensions |
Height | 4.8 in (122 mm) |
Width | 4.8 in. (122 mm) |
Depth | 1.4 in. (37 mm) | Other |
Normal Pull force | 0.3 lb. (+/- 0.1) |
End of cable pull force | Max 10 lb. (+2 lb.) (Damage may occur if customer forces retract past the end of cable) |
Weight | 0.78 lbs. (0.353 kg.) |
Color | Black |
Material | Plastic |
T° Operating | 10°C-35°C |
T° Maximum | 50°C |
Humidity | 90% non-condensing |
MTBF (tested) | 10,000 retractions |
ELECTRICAL |
RT300-134 audio |
Cable Gauge | 30 AWG/26 AWG 1PAIR/2 conductor |
Voltage Rating for Cable | 30V |
Power | none |
Amplifier | none |
