PNP515

CUSTOMIZABLE POP ‘N PLUG TOWER CUSTOM SURFACE TABLE TOP

  • Customizable to almost any table top
  • Several standard international configurations
  • Smooth new look on all sides
  • Cutout always matches table surface
  • Simple, slide-in installation
  • Opens/closes by pressing on top
  • Gas spring lift mechanism
  • NOT AVAILABLE FOR SALE IN CANADA
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • Ten year warranty

SKU: PNP515 Category:

  PNP515 Overview

The PNP515 is an empty dual-sided tower interconnect box that uses a custom cut-out tabletop surface and is configurable with sectional plates to meet your A/V requirements.

  Summary

The PNP515 dual-sided Pop ‘N Plug tabletop unit uses a custom tabletop cutout surface where underneath it, hardware is attached. When closed, the PNP515 lays flat and matches the grain on your table. The PNP515 design allows the connector panels to be easily installed. Just remove the top and slide the connector panels into place. In the open position, the PNP515 is functional yet maintains a smooth, clean appearance. A simple press on the lid closes the unit flush with the tabletop.

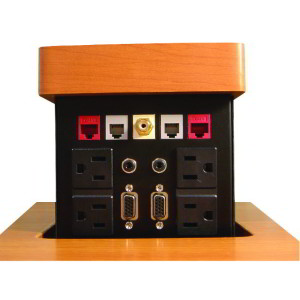

The PNP515 offers a pre-defined model that is customizable with various D-Sub, snap-in and audio connectors, the PNP517C. The AC power receptacles on the PNP517C face plates are US connections.

All connectors on the face plates are female receptacles. Each signal connector is connected via a 6-foot cable to its corresponding male plug at the opposite end. The AC power cables are 9-foot cords terminated with standard NEMA plugs for the US version or with the applicable plug for international versions.

ALTINEX products are protected by the following patents: D534495, D475016, D580357, D446188, D442143

  Technical Specifications

Table 1: PNP Mechanical

Mechanical

PNP

Minimum Table Thickness0.750 in (19 mm)
Maximum Table Thickness1.125 in (29 mm)
Maximum weight of custom top22 oz (0.624 kg)
Width5.65 in (144 mm)
Depth5.45 in (138 mm)
Height, opened5.10 in (130 mm)
Height (below tabletop)8.75 in (222 mm)
Width (below tabletop)8.50 in (216 mm)
Depth (below tabletop)6.125 in (156 mm)
Finish

Matte Black
T° Operating10°C-35°C
T° Maximum40°C
Humidity90% non-condensing

Table 2: PNP Electrical

Electrical

PNP

Power Rating
(pass-through AC power)
120 VAC, 60 Hz, 5 A

  Application Diagram

  Dimensions

  Related Products

PNP515 Accessories

The PNP515 is an empty enclosure. Sectional plates are sold separately.

See a list of the sectional plates and related product below.

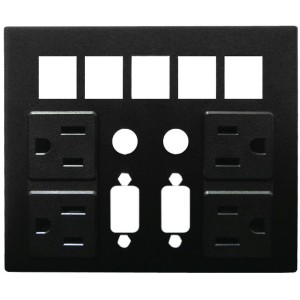

DS901-131

2 POWER ENTRY RECEPTACLE 110V 5 SNAP-IN
