PNP402C

CUSTOMIZABLE POP-N-PLUG DUAL-SIDED INTERCONNECT BOX

  • Dual-sided connectivity
  • Gas-spring technology enables smooth operation
  • Craftsman-milled edges create ultra-flat surface when closed
  • Ships with 6 ft. pre-terminated cables for quick installations

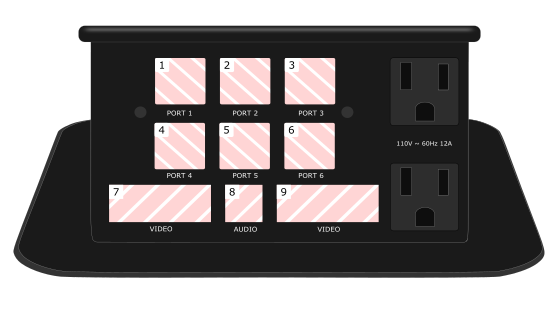

  • Customizable connectors and finish
  • 8-10 day lead time (5 pieces or less)
  • NOT AVAILABLE FOR SALE IN CANADA
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • The price of the unit includes all connectors
  • Ten year warranty
SKU: PNP402C Category:

  PNP402 Overview

The PNP402C is a customizable Pop ‘N Plug unit that covers the basic needs of many users. It is a dual-sided interconnect tabletop solution designed for installation into a conference room table.

  Summary

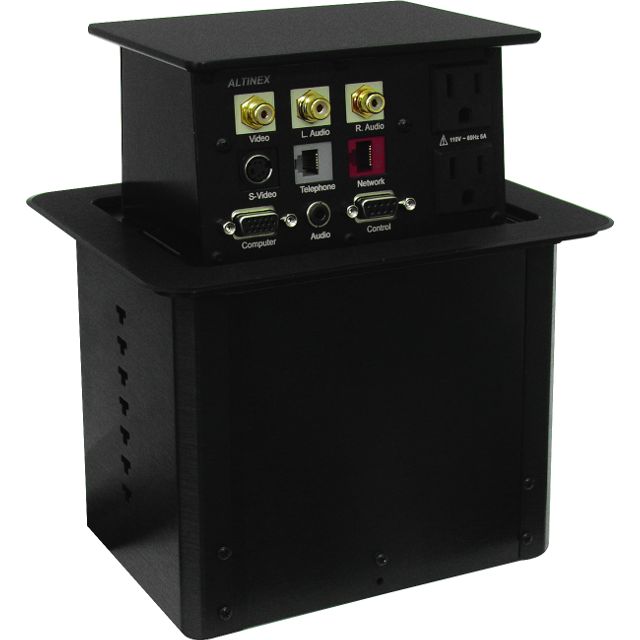

The PNP402C is a package of parts that ships as a completely assembled product made up of one (1) PNP400 and two (2) sectional plates. It is a customizable Pop ‘N Plug unit where each plate includes the following connectors: two (2) standard U.S. power receptacles, Computer Video (15-pin HD), COM Port/RS-232 (9-pin D), Composite Video (RCA), S-video (4-pin mini-Din), Audio (2 RCAs), Computer Audio (3.5 mm Stereo Mini), Modem (RJ11), and Network (RJ45) input connectors. All connectors have 6 ft. cables attached that feed through to the bottom of the unit. The connectors and their labels may be customized for a fee.

ALTINEX products are protected by the following patents: D534495, D475016, D580357, D446188, D442143

  Technical Specifications

GENERAL

ELECTRICAL

AC Power: NEMA 5-15 (4 female to 2 male)Power Rating (pass-through power): 90-140 VAC, 5 A max.
Computer Video: (2) 15-PIN HD F-M
Stereo Audio: (2) 3.5mm F-M
Network: (2) CAT6 RJ-45 F-M
Telecom: (2) RJ-11 F-M
S-Video: (2) 4-PIN Mini DIN F-M
Composite Video: (2) Yellow RCA F-F
Control: (2) DB-9 F-M
Audio Left Channel: (2) Black RCA F-F
Audio Right Channel: (2) Red RCA F-F

MECHANICAL

ACCESSORIES

AC Power Cord: 10ft (3mIncluded: Mounting screws, cable clamps
Audio, Video, and Commnication: 6ft (2m)
Maximum Table Thickness: 4.00in (102mm)
Minimum Table Thickness: 0.25in (6mm)
Height Above Table (open): 2.909in (74mm)
Height Below Table Surface: 5.760in (146mm)
Base Width: 6.674in (170mm)
Base Depth: 4.840in (123mm)
Finish: Black
T° Operating: 10°C-35°C
T° Maximum: 50°C
Humidity: 90% non-condensing

WARRANTY

3 year warranty

1 year warranty on gas spring
