MT315-102

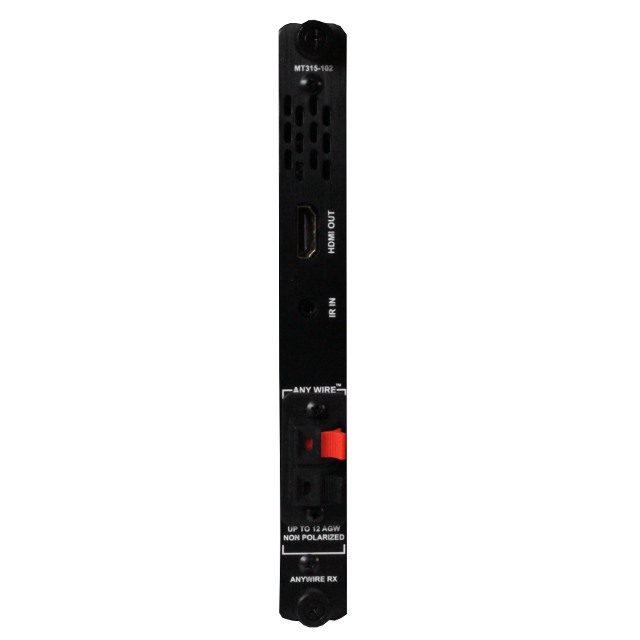

HDMI OVER ANY WIRE, RX CARD
- HDMI over 2-conductor cable
- Automatic input/receiver detection
- Transmission up to 300 m
- IR pass-through control
- Local monitor output
- Signal/power LEDs
- HDMI resolutions: 720p, 1080i, 1080p
- Lifetime warranty
MT315-102 Overview
The MT315-102 HDMI over Anywire® receiver allows the receipt of 1080P HDMI signals up to 984 ft. (300 m) using a simple 2-conductor cable.
Summary
With the MT315-102, a single transmitter drives up to 4 receivers using either 4 individual wire pairs over 300 m each, or by daisy chaining the receivers. The only restriction being the wire pair from the transmitter to each receiver cannot be bundled together as crosstalk will occur.
The MT315-102 is an economical solution for many audiovisual installations. The 2-wire solution makes installation easy without the need to cut and splice wires and install expensive connectors or purchase costly cables. Simply route your wires, cut and trim the installation and connect to the terminals. That’s it!
The unique design of the Anywire Receiver provides stable video over greater distances than other designs. IR pass-through for receiver side to transmitter side control is provided without corrupting the HDMI signal during transmission of IR signals.
Operation does not require any user control or interaction. Simply connect the Anywire input and when the transmitter detects the receiver the receiver begins video transmission to the display.
Technical Specifications
Table 1: MT315-102 General
|
Features/Description |
MT315–102 |
Input Connectors |
|
| Anywire Video | Terminal Strip Push Connector F (2) |
| IR Receiver | 3.5 mm Audio F (1) |
Output Connectors |
|
| HDMI Video | HDMI F, Type A (1) |
Compatibility |
|
| Signal types | HDMI |
| Signal resolution | 720p, 1080i, and 1080p |
| Cable length | 984 ft. (300 m) |
| Transmitter | MT315-101 TP315-101 |
Table 2: MT315-102 Mechanical
|
Mechanical |
MT315–102 |
| Slots | 1 |
| Material | Aluminum |
| Color | Black |
| Weight | 0.76 lbs. (0.35 kg) |
| Connector Panel | Black Anodized |
| T° Operating | 10°C-45°C |
| Humidity | 90% non-condensing |
| MTBF (calc.) | 38,000 hrs. |
Table 3: MT315-102 Electrical
|
Electrical |
MT315–102 |
Video Input Signals |
| Digital Video + Audio | Altinex Standard | Video Output Signals |
| Digital Video + Audio | HDMI Standard | Power |
| +12V | 0. 5 A (6 W) max. |
