MT305-804
8 X 4 HDMI MATRIX SWITCHER
- HDMI input/outputs
- HDCP compliant
- Signal Status LEDs
- Full matrix
- 400mA Output Current
- Lifetime warranty
MT305-804 Overview

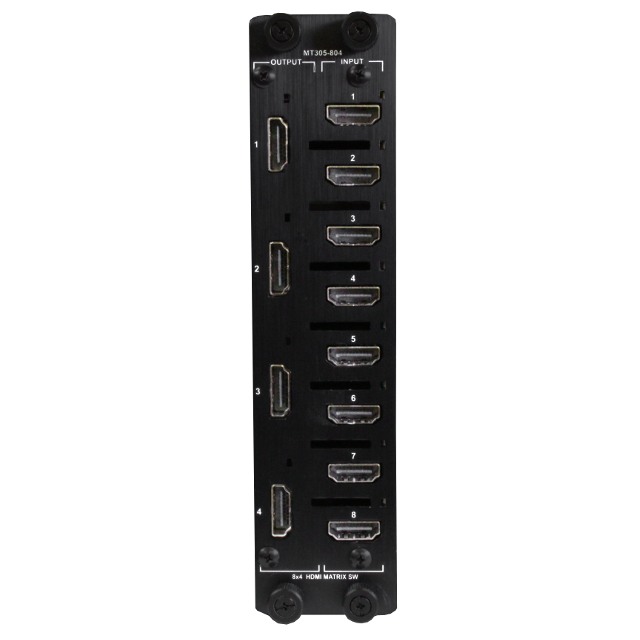

The MT305-804 is a 8 X 4 HDMI matrix switcher card for the MultiTasker enclosure.
Summary
The MT305-804 has many advanced remote control capabilities when used in the MultiTasker enclosure. These capabilities are accessible through standard RS232 or TCP/IP communication. The actual controlling can be accomplished through a computer control system or any other device capable of sending commands.
Technical Specifications
Table 1: MT305-804 General
Features/Description |
MT305-804 |
Input Connectors |
Digital Video + Audio | HDMI F, Type A (8) |
Output Connectors |
|
Digital Video + Audio | HDMI F, Type A (4) |
Compatibility |
|
Signal types | HDMI |
Signal resolution | HD Resolutions up to 1080p |
Table 2: MT305-804 Mechanical
Mechanical |
MT305-804 |
Slots | 2 |
Weight | 1.0 lb. (0.45 kg) |
Connector Panel | Black Anodized |
T° Operating | 10°C-45°C |
Humidity | 90% non-condensing |
MTBF (calc.) | 38,000 hrs. |
Table 3: MT305-804 Electrical
Electrical |
MT305-804 |
Video Input Signals |
Digital Video + Audio | HDMI Standard | Video Output Signals |
Digital Video + Audio | HDMI Standard | Power |
+12V Bus Power | 2.0 A (24 W) max. |
