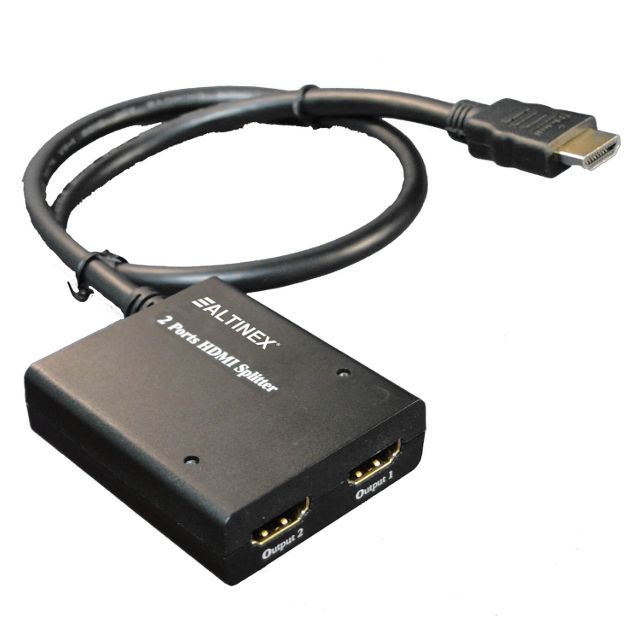

DA103-302
HDMI 1 X 2 DA W/BUILT-IN INPUT CABLE
- HDMI input with HDCP
- Computer resolutions to 1920 X 1080
- Video Resolution HDTV 480p – 1080p
- Supports Deep Color Video and Digital Audio
- Self-Powered or external power supply
- 20 inch (0.5 m) input cable
- Three (3) year warranty available
DA103-302 Overview

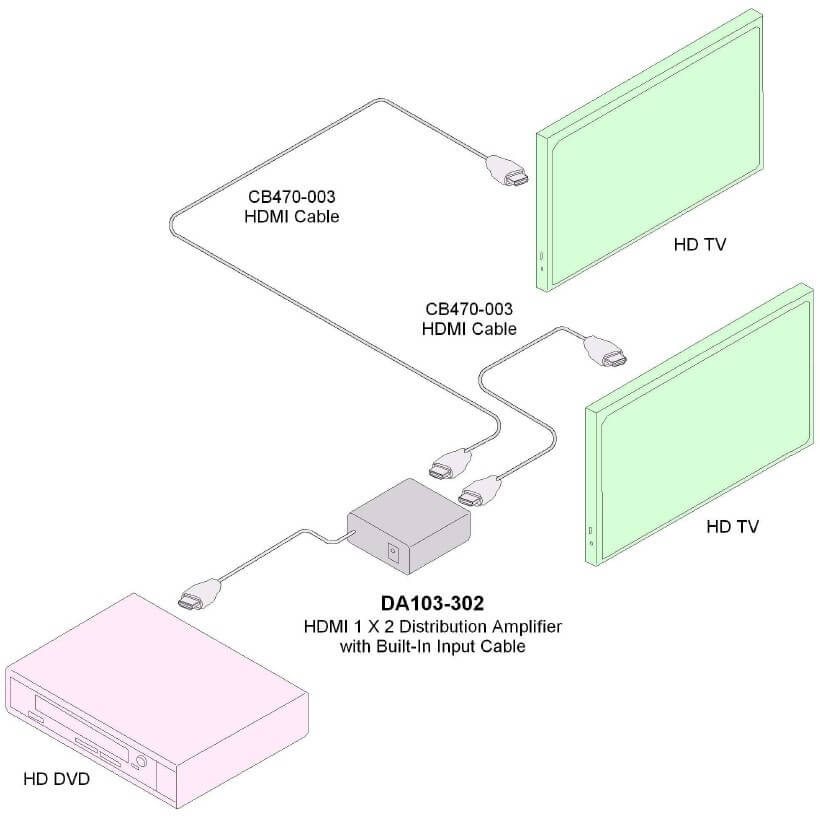

The DA103-302 HDMI DittoAmp™ 1-In 2-Out distribution amplifier with the built-in HDMI input cable takes a single HDMI signal and sends it to two displays. The built-in input cable makes the installation quicker and easier.
Summary
The DA103-302 is fully HDMI and HDCP compliant and provides clean and sharp image.

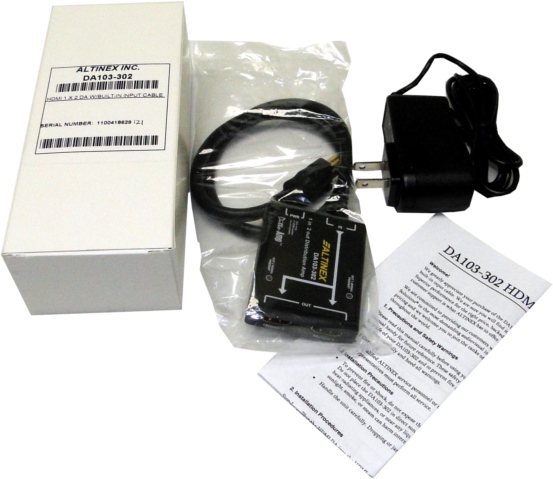

The DA103-302 comes with all items shown on the picture below. Typically the DA103-302 is powered by an HDMI device. In case when the power is not available, an external power adapter is provided.
The DA103-302 can handle computer resolutions up to 1920 X 1080 and HDTV video formats 480p to 1080p at distances up to 60 feet on each output. The DA103-302 handles DHCP keys automatically to provide proper content protection. Output #1 detects EDID information from connected monitor and provides it to the HDMI sources. The same information is propagated to output #2. The DA103-302 Supports HDMI Deep Color and Digital Audio formats LPCM, Dolby AC3, DTS 7.1, and DSD.
Technical Specifications
GENERAL | ELECTRICAL |
Connectors | Input Signals |
Input Connector: (1) HDMI M, 20in (508mm) | Input DDC Signal: 5Vp-p max. (TTL) |
Output Connectors: (2) HDMI F | Maximum Single Link Range: 1920 x 1080p |
Power: DC Round, TRS | Output Signals |
Compatibility | Output Video: HDMI, HDCP |
Computer Resolutions: 1920 x 1080 | Operating Frequency |
HDTV Resolutions: 480p, 576p, 720p, 1080i, 1080p | Vertical Frequency Range: 50/60 Hz |
Digital Audio: LPCM, Dolby-AC3, DTS 7.1, DSD | Video Amplifier Bandwidth: 225 MHz |
Content: HDCP | Date Rate: 6.75 Gbps (2.25 Gbps x 3) |
Output Cable Length: 60ft (18m) max. | Resolutions (HDTV) |
Agency Approvals | Interlaced (50&60Hz): 480i, 576i, 1080i |
1x2 DA: FCC, CE, UL | Progressive (50&60Hz): 480p, 576p, 720p, 1080p |
Power Consumption (from HDMI source) | |
+5VDC: 0.5A max. | |
Total Power: 2.5W max. | |
MECHANICAL |
ACCESSORIES |
Color: Black | Optional |
Height: 0.7in (18mm) | Power adapter +5VDC, 2A |
Width: 2.5in (63mm) | PS5558SA: for South Africa |
Depth: 2.1in (54mm) | PS5528Au: for Australia |
Weight, DA: 0.18lb (0.08kg) | PS5538GR: for Germany |
Weight, Adapter: 0.24lb (0.11kg) | PS5548JP: for Japan |
Shipping Weight (approx): 0.5lb (0.2kg) | PS5518UK: for UK |
T° Operating: 10°C to 50°C | CB470-006: HDMI M/M Cable, 6ft (2m) |
T° Maximum: 75°C | CB470-010: HDMI M/M Cable, 10ft (3m) |
Humidity: 10-85% non-condensing | CB470-015: HDMI M/M Cable, 15ft (5m) |
MTBF (calc.): 38,000hrs | Included |
PS5508US: Power Adapter +5VDC, 2A |
