CNK600
EMPTY CABLE-NOOK® INTERCONNECT BOX (BLACK)
- Installs into tabletop
- Convenient mounting from top of table
- Easy access to cable ends or fixed connectors
- Black brushed aluminum finish
- Simple, cost-effective interconnect solution
- Sold as an empty unit
- Pre-configured customizable plates available: SP2116SC
- As seen in the Altinex Table Top Interconnect Guide
- Ten year warranty
CNK600 Overview
The CNK600 is a simple, effective way of hiding/storing multimedia cables and connectors when not in use. It is designed for boardrooms and conference rooms. Cables remain connected to a presentation system enabling the user to access connections to AC power, video, audio, and other media sources.
Summary

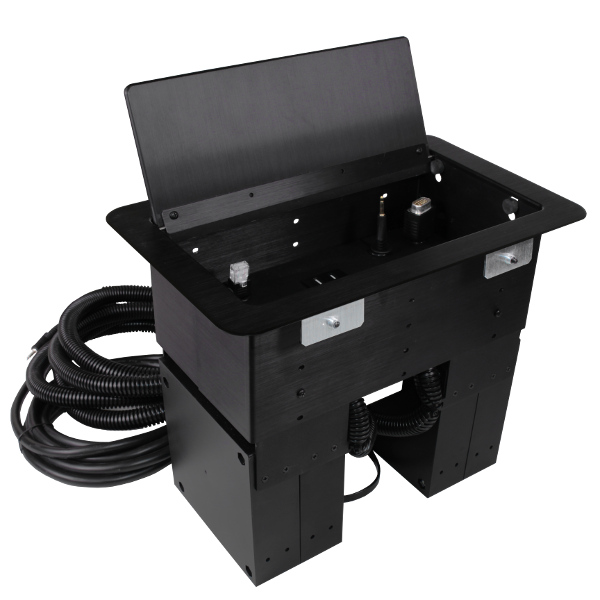

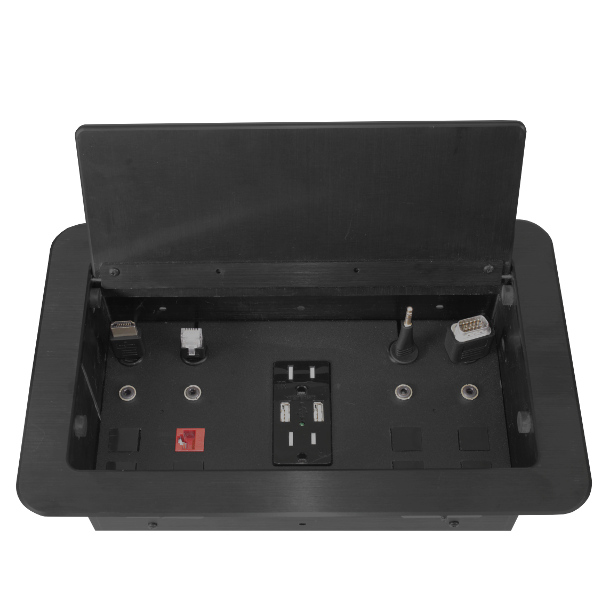

The modular Cable Nook uses a trapdoor type lid that remains flush with the table when not in use. To access the cables or connectors, simply lift the lid and pull the cable ends out, or plug cables into fixed connectors. The closed lid has an opening that allows cables to be used with the lid closed. After the presentation, the cable ends are returned to the Cable Nook for safe storage.
Cables feed through the Cable Nook to the underside of the table, enabling connection to the presentation system.
The CNK600 has convenient mounting that can be done from the top of the table using the hex‑L‑key provided. The CNK600 may be ordered with the all‑purpose, pre‑configured customizable plate, SP2116SC.

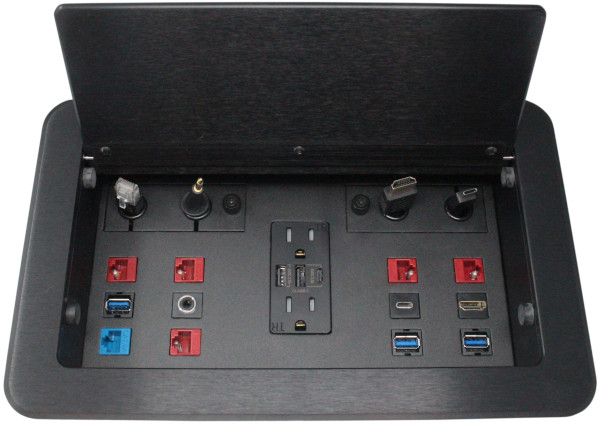

The SP2116SC plate offers dual 12 Amp AC sockets along with 2 USB ports that deliver up to 3A of charging power. The USB charger has an LED to indicate power availability. The plate also has 12 ports for snap in cables that can be customized based on the customer’s requirements. In addition, the SP2116SC plate is designed to be used with up to 4 of any combination of Altinex retractable cables.
The CNK600 is designed so that retractable cables can be mounted directly to the unit without any additional mounting brackets. The body of the CNK600 has thumb screws for retract connections, eliminating the need for additional tools.
Videos
Technical Specifications
Table 1: CNK600 General
|
Features/Description |
CNK600 |
Inputs |
|
| Video/Audio | N/A |
Outputs |
|
| Video/Audio | N/A |
Compatibility |
|
| Cable Nook Standard and Customizable Plates | SP2116SC |
| Snap-In Connectors | All ALTINEX Snap-In Connectors |
Accessories Included |
|
| Mounting Hardware | Screws (4), Mounting Brackets (4) attached to the unit |
Table 2: CNK600 Mechanical
|
Mechanical |
CNK600 |
| Minimum Table Thickness | 0.5 in (13 mm) |
| Maximum Table Thickness | 3.5 in (89 mm) |
Housing Dimensions |
|
| Height | 5.8 in (147 mm) |
| Width | 9.3 in (236 mm) |
| Depth | 5.1 in (130 mm) |
Bezel Dimensions (surface) |
|
| Width | 11.2 in (284 mm) |
| Depth | 6.99 in (178 mm) |
| Color | Black |
| Material | Aluminum |
| T° Operating | 10°C-35°C |
| T° Maximum | 50°C |
| Humidity | 90% non-condensing |
| MTBF (calculations) | 40,000 hrs (min.) |
