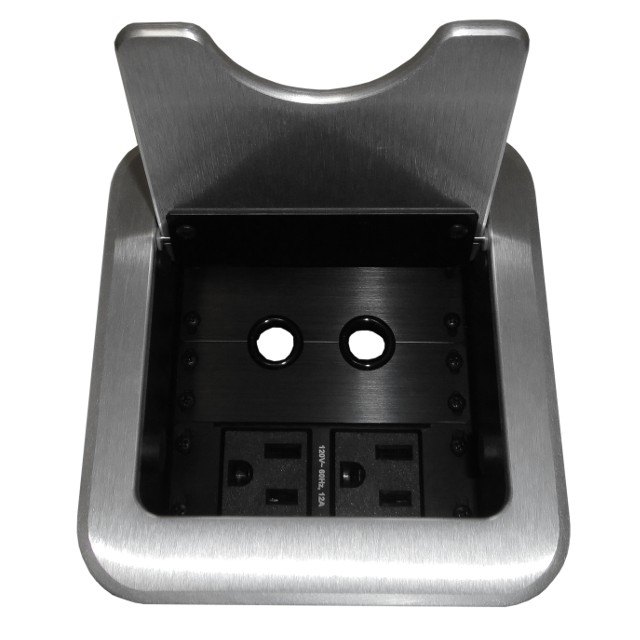

CNK261S
CABLE-NOOK JR. WITH US AC POWER & GROMMETS (SILVER)
- Clear brushed aluminum finish
- Compact enclosure installs into tabletop
- Convenient access to cable ends or fixed connectors
- Modular configuration: more room for additional connectors
- Simple, cost-effective interconnect solution
- Allows 2 x ½” holes with nylon bushings
- Includes plugs for unused holes.
- CN5102US is UL and cUL listed
- As seen in the Altinex Table Top Interconnect Guide
- Downloadable cutout template available
- Ten year warranty
CNK261S Overview
The CNK261S Cable-Nook Jr. provides a simple yet effective way of hiding and storing multimedia cables and fixed connectors. The cables remain connected to a presentation system, enabling the user easy access to them and for connection to video, audio, and other media sources needed. It allows 2 x ½” holes with nylon bushings for easy cable access and includes plugs for unused holes.
Summary
This package covers the basic usage needs of many Cable-Nook Jr. users as it supplies power receptacles and retaining grommets to hold cable ends. Some assembly required.
Includes the CNK221S Cable-Nook Jr., the CN5102US dual AC power insert plate, and CN5120RG set of retaining grommets.

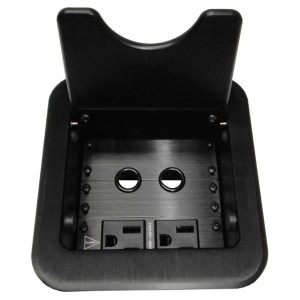

Also available with a Black brushed aluminum finish as the CNK261.
Also available is our full range of retractable cables designed specifically for the Cable-Nook® and Cable-Nook Jr.®
ALTINEX products are protected by the following patents: D465201.
Technical Specifications
CNK261S |
|
| Interior Brackets | 4-40, 0.25" spacing (x13) |
| Retaining Grommet | 0.45" I.D. (x2) |
| Pass-through AC 9-10 ft. (2.7-3.0 m) | NEMA F (2) to M (1) |
Mechanical |
CNK Jr. |
All CNK Jr.'s |
|
| Maximum Table Thickness | 3.0 in (76 mm) |
| Height (above surface) | 2.7 in (67 mm) |
| Height (below surface) | 4.8 in (121 mm) |
Standard CNK Jr.'s |
|
| Bezel Width CNK221/241/261 | 4.6 in (117 mm) 5.4 in (137 mm) |
| Bezel Depth | 4.9 in (124 mm) |
Custom Round Bezel |
|
| Bezel Diameter | 5.8 in (146 mm) |
Stackable Option |
|
| Stackable Bezel Depth | 4.40 in (112 mm) |
| Stackable Bezel Width | 4.10 in (104 mm) |
| Frame Depth | 5.12 in (130 mm) |
| Frame Width, 2-Up | 9.18 in (233 mm) |
| Frame Width, 3-Up | 13.55 in (344 mm) |
| Frame Width, 4-Up | 17.91 in (455 mm) |
All CNK Jr.'s |
|
| Standard Finish | Matte Black |
| Alternative Finish | Brushed Aluminum |
| T° Operating | 10°C-35°C |
| T° Maximum | 50°C |
| Humidity | 90% non-condensing |
Electrical |
CNK241/261 |
| Power Rating (pass-through AC power) | 120VAC, 60Hz, 12A Total Current |
Application Diagram
Dimensions
Related Products
|
CNK Optional Accessories The Cable Nook Jr. has 13 slots available for power, retaining brackets, grommets or Altinex CNK-IP Plates. Each module comes with retaining screws. For more space, the larger CNK200 has 23 slots available. |
||||||||||||||||||||||||||
|
