CNK222
COMPLETE CNK202 CABLE NOOK®, BLACK BRUSHED ALUMINUM FINISH WITH CNK-IP-210, 2X CNK-IP-200, 1X CNK-IP-217, 2X SN1318-RJ45-B
- Installs into tabletop
- Convenient access to cable ends or fixed connectors
- Modular configuration: more room for additional connectors
- Black brushed aluminum finish
- Simple, cost-effective interconnect solution
- UL/cUL Listed CNK-IP-200 power module:
- 12 Amp AC capacity
- Six (6) USB ports: Four (4) type A 2.0 and two (2) type C (3.3 A)
- Comes with 9.5 ft. (2.9 m) power cable terminated with a single male plug
- As seen in the Altinex Table Top Interconnect Guide
- Downloadable cutout template available
- Ten year warranty available
CNK222 Overview
The CNK222 provides a simple, effective way of hiding/storing multimedia cables and connectors and is designed for boardrooms and conference rooms with an on-rails lid. The cables remain connected to a presentation system, enabling the user to access connections to AC power, USB charging, HDMI, network, and other media sources.
Summary
The CNK222 provides a simple, effective way of hiding/storing multimedia cables and connectors and is designed for boardrooms and conference rooms with an on-rails lid. The cables remain connected to a presentation system, enabling the user to access connections to AC power, USB charging HDMI, network, and other media sources.

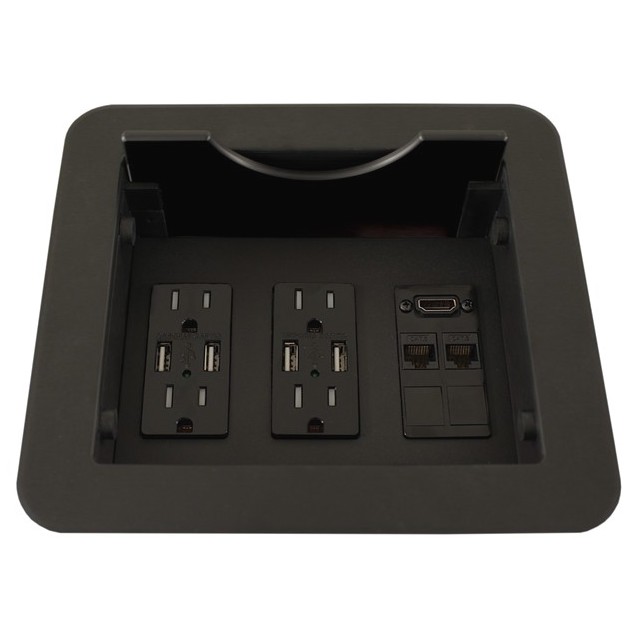

This product includes the CNK202 Cable-Nook Modular Tabletop Interconnect Box with folding cover, and the CNK‑IP‑210 faceplate. The faceplate is pre‑configured with two CNK-IP-200 modules and one CNK‑IP‑217 HDMI module. The CNK-IP-200 modules each have dual AC power, dual USB type A 2.0, and a USB type C (3.3 A) charging ports. The CNK‑IP‑217 HDMI plus snap-in plate has one HDMI pass‑through connector and four blank snap‑in ports that can be customized by Altinex or you can use your own snap‑in assemblies.
The assembled unit provides 4 AC power receptacles, 6 USB charging ports, one connector for digital video, and four snap‑in ports. Two of the four snap‑in ports are pre‑populated with black RJ45 F/F connectors (SN1318-RJ45-B). The remaining two are populated with blank covers (CM11301). The blank covers as well as a wide variety of snap‑ins may be purchased from Altinex.
The HDMI and snap-in connectors are bulkhead style connectors. The bottom (or inside) connectors can connect to off‑the‑shelf cables which connect permanently to the presentation system.
Technical Specifications
|
Mechanical |
CNK222 |
| Hole Sets | 23 |
| Minimum Table Thickness | 0.5 in (13 mm) |
| Maximum Table Thickness | 3.5 in (89 mm) |
Housing Dimensions |
|
| Height | 4.7 in (119 mm) |
| Width | 6.2 in (157 mm) |
| Depth | 5.4 in (137 mm) |
Bezel Dimensions (surface) |
|
| Width | 7.9 in (200 mm) |
| Depth | 7.1 in (179 mm) |
| Color: CNK202 | Black Brushed Aluminum |
| Material | Aluminum |
| T° Operating | 10°C-35°C |
| T° Maximum | 50°C |
| Humidity | 90% non-condensing |
| MTBF (calculations) | 40,000 hrs (min.) |
