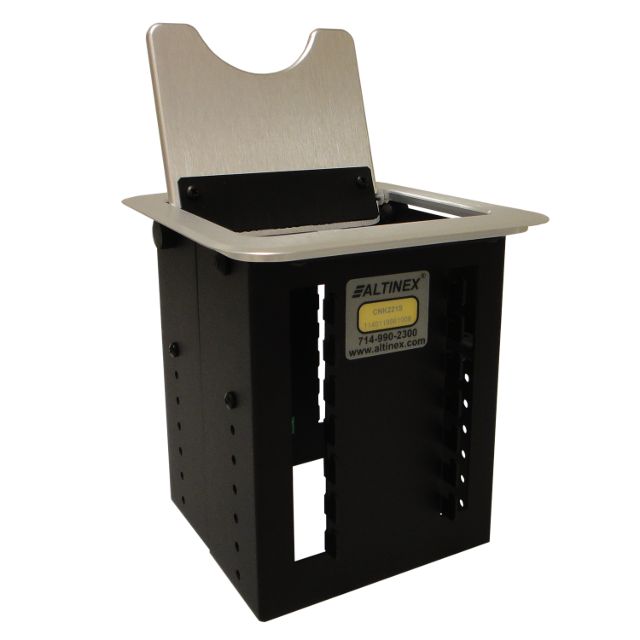

CNK221S
EMPTY CABLE-NOOK JR. INTERCONNECT BOX (SILVER)
- Compact enclosure installs into tabletop
- Convenient access to cable ends or fixed connectors
- Clear brushed aluminum finish (“Silver”)
- Optional retaining bracket adjusts for range of cable types
- Modular configuration allows room for additional connectors
- Simple, cost-effective interconnect solution
- 13 Slots available for Power, grommets, retaining brackets or Altinex CNK-IP Insert Plates. See “Related Items” tab below.
- As seen in the Altinex Table Top Interconnect Guide
- Downloadable cutout template available
- Ten year warranty
CNK221S Overview
The compact CNK221S Cable-Nook Jr. interconnect box is designed for installation into a conference room or boardroom table for connecting audio, video, and other sources. A wide range of Insert Plates (CNK-IP), along with power, brackets and grommets are available to customize the base unit.
The CNK221S comes standard with a mounting bezel. One CNK Jr. is installed in one table cutout. If more CNK Jr.’s are needed in a limited space, stackable bezels come in 2, 3, and 4-up options. A single cutout is required for the stackable bezel. The stackable CNK Jr.’s ship with a flat bezel that drops easily in to the bezel.
Summary
The CNK221S Tabletop Cable-Nook Jr. Interconnect Box is designed for installation into a conference room or boardroom table. The Cable-Nook Jr. provides a means of connecting audio, video, and other multimedia sources into a presentation system. It is ideal for use with ALTINEX computer video interfaces or distribution amplifiers.
The Tabletop Cable-Nook Jr. Interconnect Box provides a simple yet effective way of storing and hiding cables, eliminating the obstruction. The cables can remain connected to a presentation system, enabling the user to connect them to different media sources needed for a presentation. After the presentation, the cables may be returned to the Cable-Nook Jr. for safe storage.
The Tabletop Cable-Nook Jr. Interconnect Box is designed for use with tabletops up to three inches thick. Optional insert plates are available to secure the cable ends or to add connections for a variety of multimedia and power cables. The insert plates can be adjusted to fit a variety of cable sizes. The height of the insert plates can be adjusted by changing the height of the interior bracket mounts in the Cable-Nook Jr.

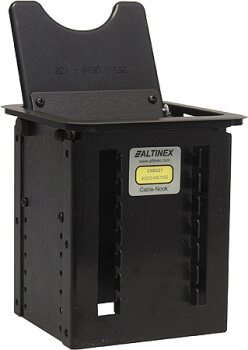

Also available with a black brushed aluminum finish as the CNK221:
For a larger unit with more space, check out the Cable-Nook® CNK200. Available in black and silver.
Also available is our full range of retractable cables designed specifically for the Cable-Nook® and Cable-Nook Jr.®
ALTINEX products are protected by the following patents: D465201
Technical Specifications
|
Features/Description |
CNK Jr. |
CNK221 |
|
| Interior Mounting Brackets | 4-40, 0.25" spacing (x13) |
Mechanical |
CNK Jr. |
All CNK Jr.'s |
|
| Maximum Table Thickness | 3.0 in (76 mm) |
| Height (above surface) | 2.7 in (67 mm) |
| Height (below surface) | 4.8 in (121 mm) |
Standard CNK Jr.'s |
|
| Bezel Width CNK221/241/261 | 4.6 in (117 mm) 5.4 in (137 mm) |
| Bezel Depth | 4.9 in (124 mm) |
Custom Round Bezel |
|
| Bezel Diameter | 5.8 in (146 mm) |
Stackable Option |
|
| Stackable Bezel Depth | 4.40 in (112 mm) |
| Stackable Bezel Width | 4.10 in (104 mm) |
| Frame Depth | 5.12 in (130 mm) |
| Frame Width, 2-Up | 9.18 in (233 mm) |
| Frame Width, 3-Up | 13.55 in (344 mm) |
| Frame Width, 4-Up | 17.91 in (455 mm) |
All CNK Jr.'s |
|
| Standard Finish | Matte Black |
| Alternative Finish | Brushed Aluminum |
| T° Operating | 10°C-35°C |
| T° Maximum | 50°C |
| Humidity | 90% non-condensing |
Electrical |
CNK241/261 |
| Power Rating (pass-through AC power) | 120VAC, 60Hz, 12A Total Current |
Application Diagram
Dimensions
Related Products
|
CNK Optional Accessories The Cable Nook Jr. has 13 slots available for power, retaining brackets, grommets or Altinex CNK-IP Plates. Each module comes with retaining screws. For more space, the larger CNK200 has 23 slots available. |
||||||||||||||||||||||||||||
|
