CNK221C

CABLE-NOOK JR.® TABLETOP INTERCONNECT BOX (BLACK)

  • Compact enclosure installs into tabletop
  • Convenient access to cable ends or fixed connectors
  • Black brushed aluminum finish
  • Optional retaining bracket adjusts for range of cable types
  • Modular configuration allows room for additional connectors
  • Simple, cost-effective interconnect solution
  • 8-10 day lead time (5 pieces or less)
  • 13 Slots available for Power, grommets, retaining brackets or Altinex CNK-IP Insert Plates. See “Related Items” tab below.
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • Ten year warranty
Category:

  CNK221C Overview

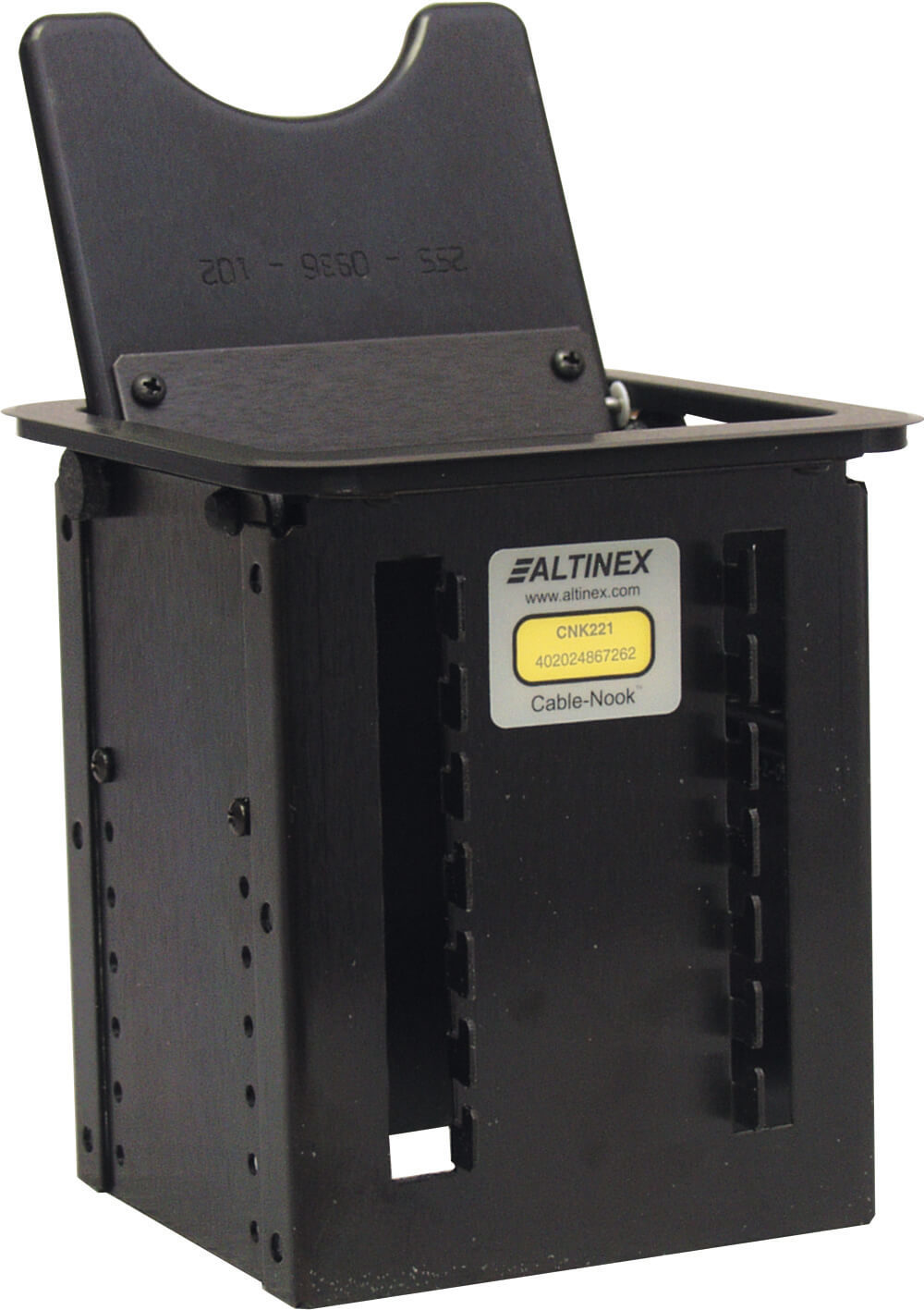

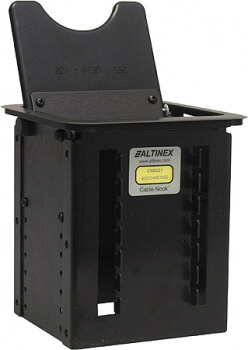

The compact CNK221C Cable-Nook Jr. interconnect box is designed for installation into a conference room or boardroom table for connecting audio, video, and other sources. A wide range of Insert Plates (CNK-IP), along with power, brackets and grommets are available to customize the base unit.

The CNK221C comes standard with a mounting bezel. One CNK Jr. is installed in one table cutout. If more CNK Jr.’s are needed in a limited space, stackable bezels come in 2, 3, and 4-up options. A single cutout is required for the stackable bezel. The stackable CNK Jr.’s ship with a flat bezel that drops easily in to the bezel.

  Summary

The Cable-Nook Jr. provides a simple yet effective way of storing or hiding cables, eliminating obstruction.  The cables can remain connected to a presentation system, enabling the user to connect them to different media sources needed for a presentation.  After the presentation, the cables may be returned to the Cable-Nook Jr. for safe storage.

The Tabletop Cable-Nook Jr. Interconnect Box is designed for use with tabletops up to three inches thick.  Optional insert plates (CNK-IP) are available to secure the cable ends or to add connections for a variety of multimedia and power cables and can be found on the related items tab.  The insert plates can be adjusted to fit a variety of cable sizes and the height can be adjusted to suit users needs.

13 slots available for power, retaining brackets, grommets or Altinex CNK-IP Insert Plates.

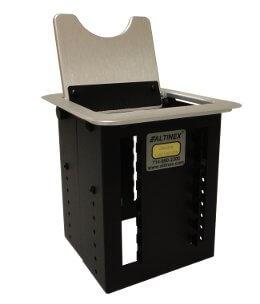

Also available with a clear brushed aluminum finish (“Silver”) as the CNK221S.

CNK221S_main
For a larger unit with more space, check out the Cable-Nook® CNK200. Available in black and silver.

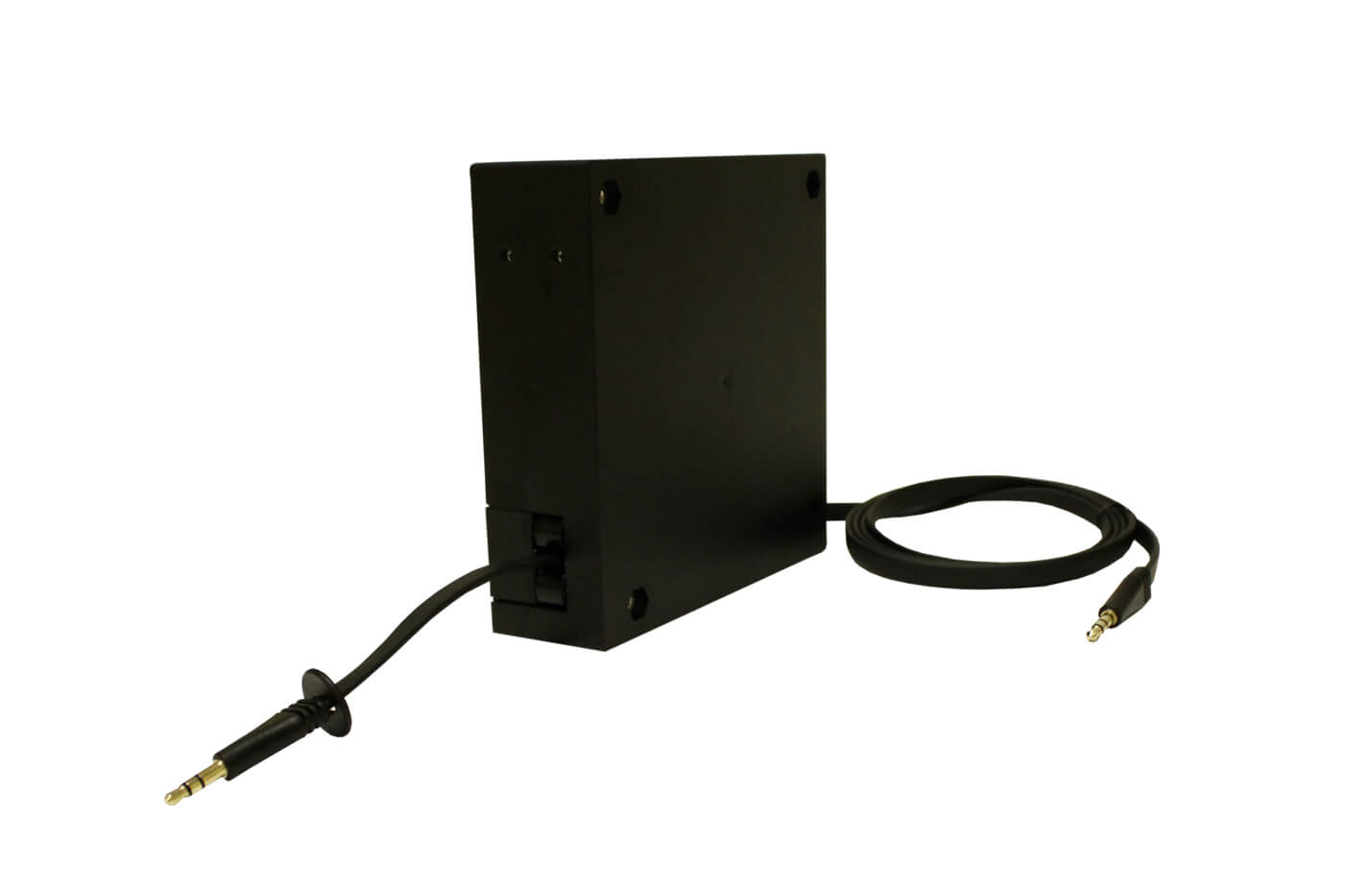

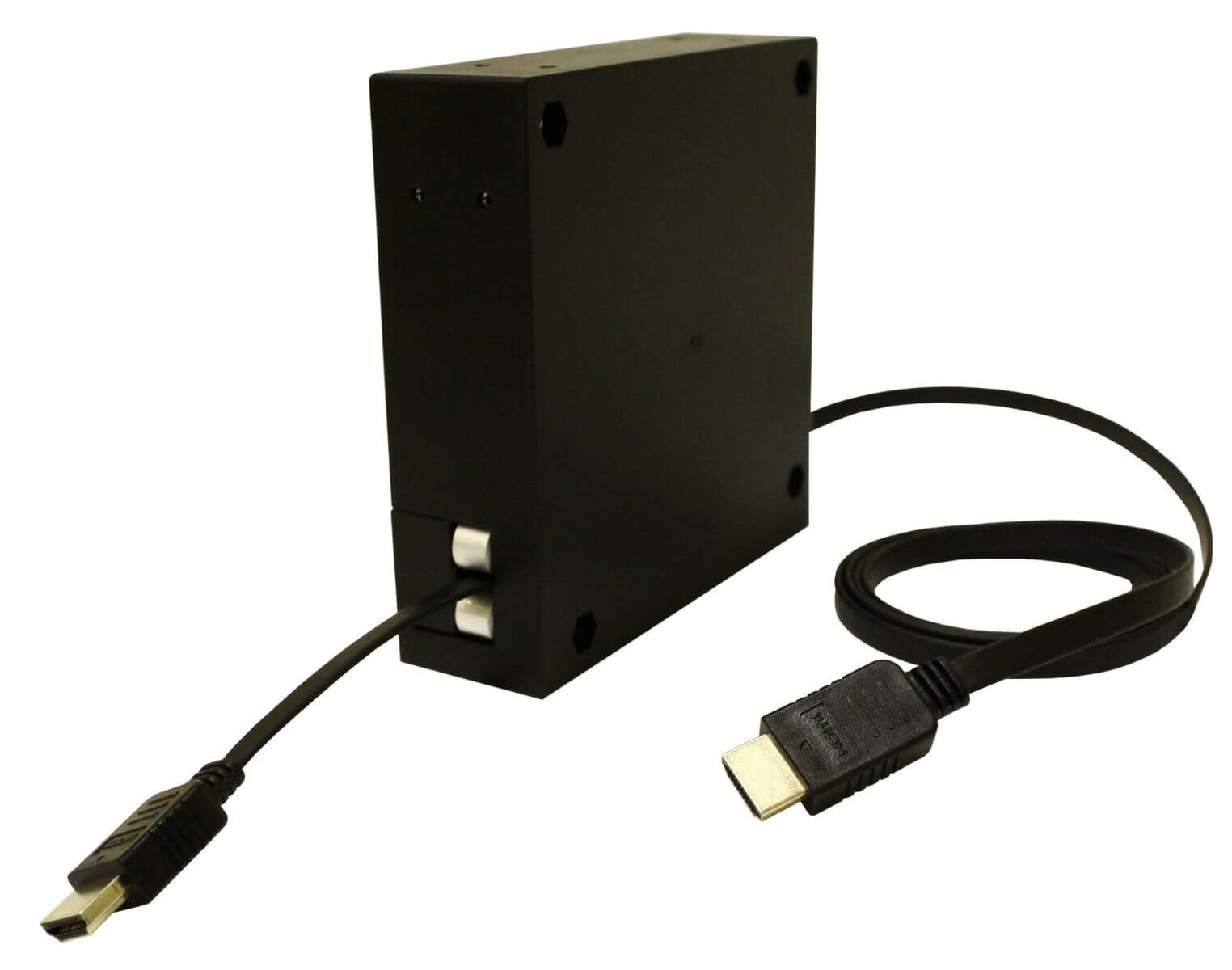

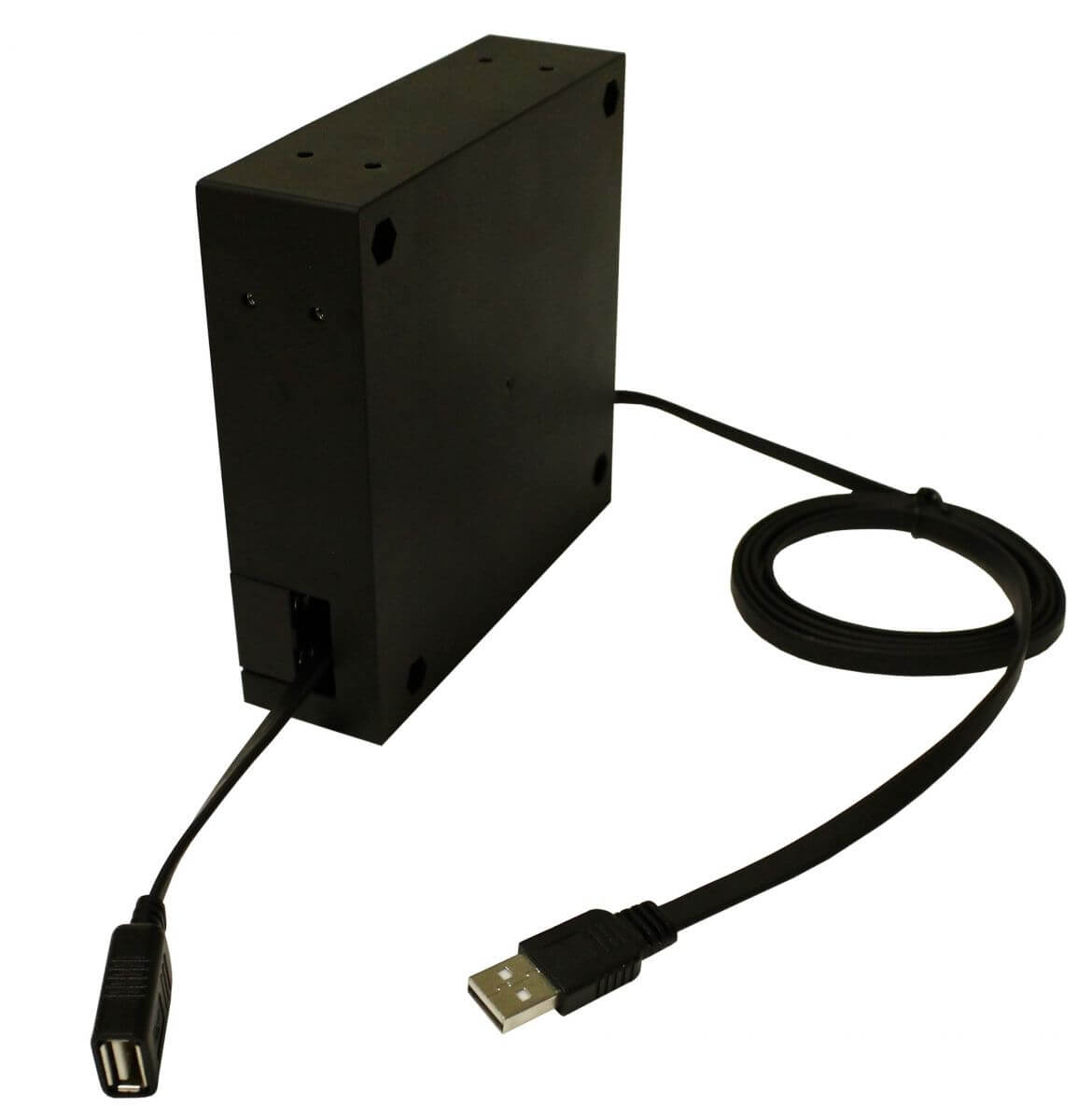

Also available is our full range of retractable cables designed specifically for the Cable-Nook® and Cable-Nook Jr.®

ALTINEX products are protected by the following patent: D465201



  Videos

  Technical Specifications

Features/Description

CNK Jr.

CNK221

Interior Mounting Brackets4-40, 0.25" spacing (x13)

Mechanical

CNK Jr.

All CNK Jr.'s

Maximum Table Thickness3.0 in (76 mm)
Height (above surface)2.7 in (67 mm)
Height (below surface)4.8 in (121 mm)

Standard CNK Jr.'s

Bezel Width

CNK221/241/261
CNK241/261


4.6 in (117 mm)
5.4 in (137 mm)
Bezel Depth4.9 in (124 mm)

Custom Round Bezel

Bezel Diameter5.8 in (146 mm)

Stackable Option
(not available with Display Select)

Stackable Bezel Depth4.40 in (112 mm)
Stackable Bezel Width4.10 in (104 mm)
Frame Depth5.12 in (130 mm)
Frame Width, 2-Up9.18 in (233 mm)
Frame Width, 3-Up13.55 in (344 mm)
Frame Width, 4-Up17.91 in (455 mm)

All CNK Jr.'s

Standard FinishMatte Black
Alternative FinishBrushed Aluminum
T° Operating10°C-35°C
T° Maximum50°C
Humidity90% non-condensing

Electrical
(dual outlet module)

CNK241/261

Power Rating
(pass-through AC power)
120VAC, 60Hz,
12A Total Current

  Application Diagram

  Dimensions

  Related Products

CNK Optional Accessories

The Cable Nook Jr. has 13 slots available for power, retaining brackets, grommets or Altinex CNK-IP Plates. Each module comes with retaining screws. For more space, the larger CNK200 has 23 slots available.

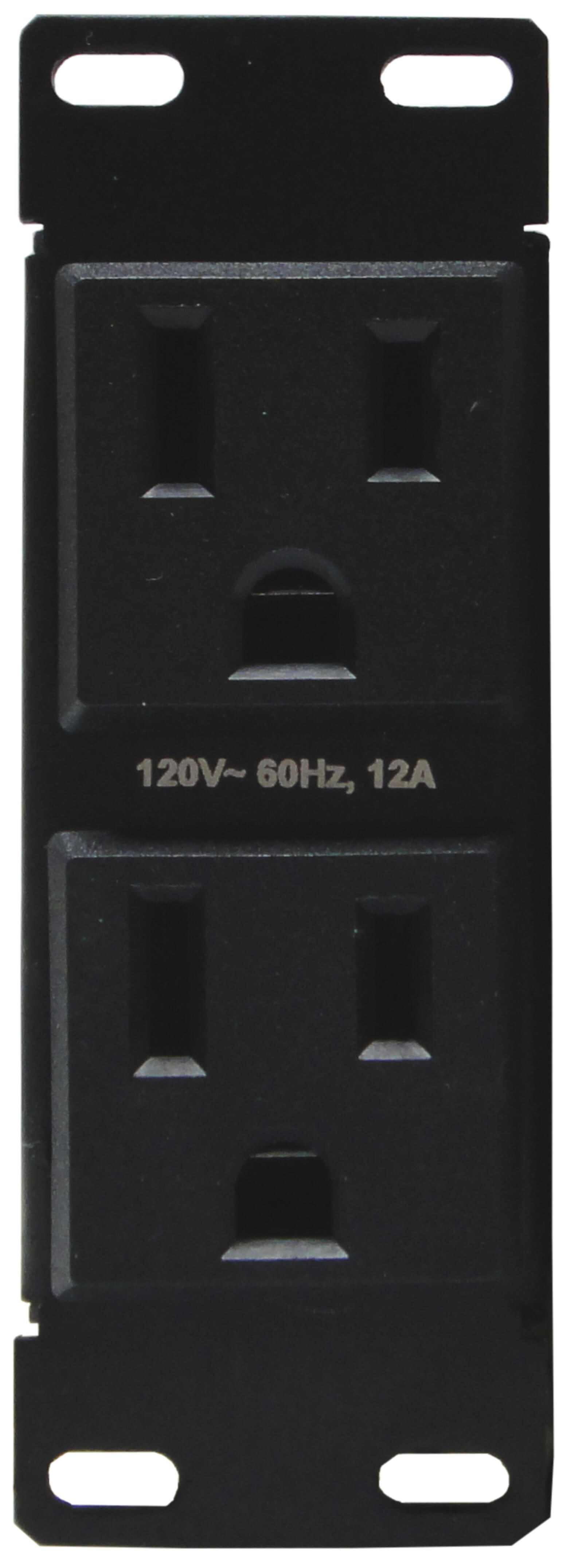

CN5102US

This dual AC power insert plate comes with an attached six-foot cord terminated with a male plug, and provides two standard AC power receptacles for usage in the U.S., Canada and Mexico.

CN5102US is UL and cUL listed

Covers 5 slots.

CN5110RB

These brackets can be added to the Cable-Nook Jr., and adjusted to “catch” cable ends of varying widths. The shelf itself can be adjusted to different depths inside the box. Comes with five brackets and ten retaining screws.

Each bracket covers approximately 1 ½ slots.

CN5120RG

This grommet plate is designed to provide easy cable retention for 2 cables. Contains 2 plates, 2 bushings for smooth, snag free cable movement and screws for connection into the CNK unit. Blank plugs are also included in case one hole is unused.

Covers 8 slots.

CNK-IP-105

Insert plate with (2) empty ports for Snap-In connectors. See Snap-In Connectors for list of available connectors.

Covers 5 slots.

CNK-IP-111

Insert plate with VGA 15-Pin HD female passive pass-through connector with 3.5mm Analog Audio jack.

VGA female to male cable, 6′ (1.83m) with 15-pin HD connector. Analog audio 3.5mm female jack to terminal block.

2 empty ports for snap-in connectors. Covers included. See Snap-In Connector Assemblies for a full list of available connectors.
Covers 8 slots.

CNK-IP-112

Insert plate with digital HDMI female passive pass-through connector with 3.5mm Analog Audio jack.

HDMI female to male cable, 6′ (1.83m). Analog audio 3.5mm female jack to terminal block.

2 empty ports for snap-in connectors. Covers included. See Snap-In Connector Assemblies for a full list of available connectors.
Covers 8 slots.

CNK-IP-113

Insert plate with digital HDMI female passive pass-through connector with 3.5mm Analog Audio jack.

HDMI female to male cable, 6′ (1.83m). Analog audio 3.5mm female jack to terminal block.

Covers 5 slots.

CNK221

Cable Nook Jr. 13 Slots.

CNK221S

Identical to the CNK221 but with a clear brushed aluminum finish (“Silver”)

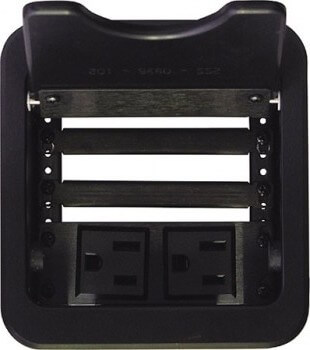

CNK241

Pre-configured CNK221 Cable-Nook Jr. with US Power module (CN5102US) and Retaining Brackets (CN5110RB).

CNK241S

Pre-configured CNK221S Cable-Nook Jr. with US Power module (CN5102US) and Retaining Brackets (CN5110RB).

CNK261

Pre-configured CNK221 Cable-Nook Jr. with US Power module (CN5102US) and Retaining Grommets (CN5120RG).

CNK261S

Pre-configured CNK221S Cable-Nook Jr. with US Power module (CN5102US) and Retaining Grommets (CN5120RG).

CNK200

Need more room? The CNK200 is a much larger, full size Cable Nook with 23 slots available
