CNK220
COMPLETE CNK202 CABLE NOOK WITH SP3504SC (BLACK)
- Installs into tabletop
- Convenient access to cable ends or fixed connectors
- Modular configuration: more room for additional connectors
- Black brushed aluminum finish
- Simple, cost-effective interconnect solution

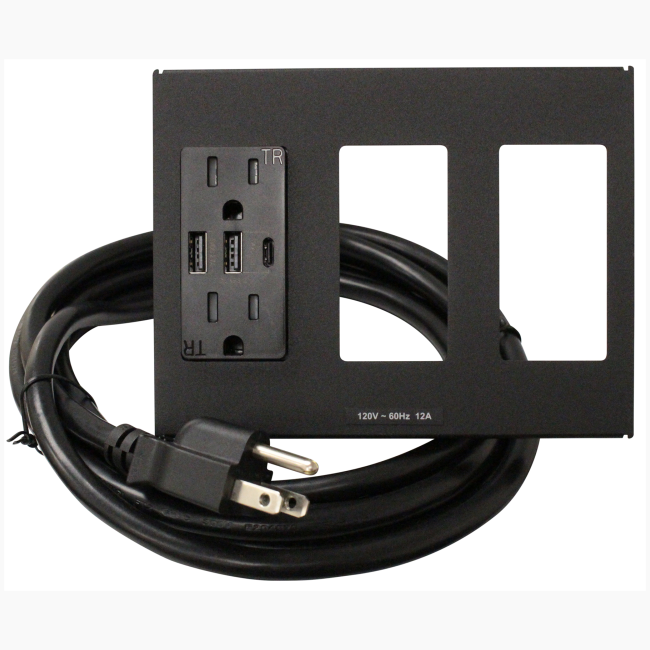

- UL/cUL Listed CNK-IP-200 power module:
- 12 Amp AC capacity
- Three (3) USB ports (2 USB-A, 1 USB-C) 16.5W total (per dual outlet module)
- Comes with 9.5 ft. (2.9 m) power cable terminated with a single male plug
- As seen in the Altinex Table Top Interconnect Guide
- Downloadable cutout template available
- Ten year warranty available

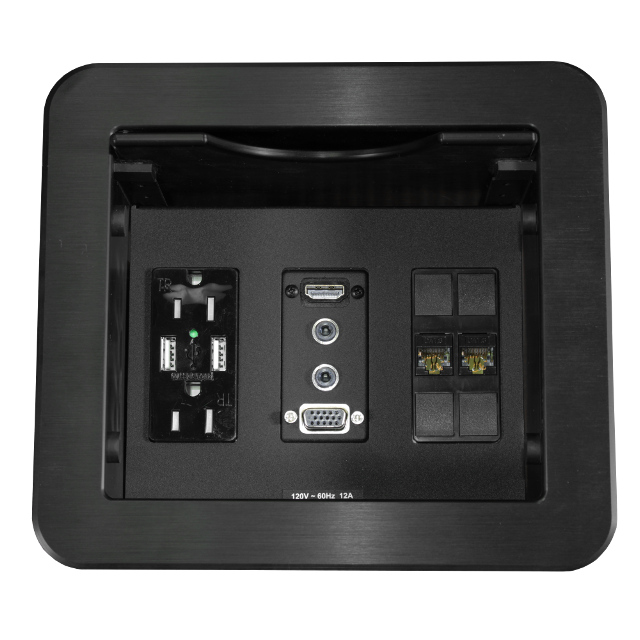

CNK220 Overview
The CNK220 provides a simple, effective way of hiding/storing multimedia cables and connectors and is designed for boardrooms and conference rooms with an on-rails lid. The cables remain connected to a presentation system, enabling the user to access connections to AC power, USB charging, HDMI, network, and other media sources.
Summary
The CNK220 provides a simple, effective way of hiding/storing multimedia cables and connectors and is designed for boardrooms and conference rooms with an on-rails lid. The cables remain connected to a presentation system, enabling the user to access connections to AC power, USB charging HDMI, network, and other media sources.

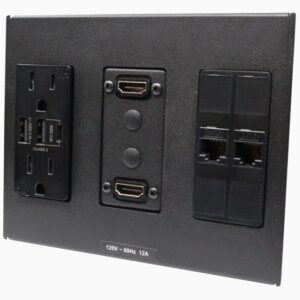

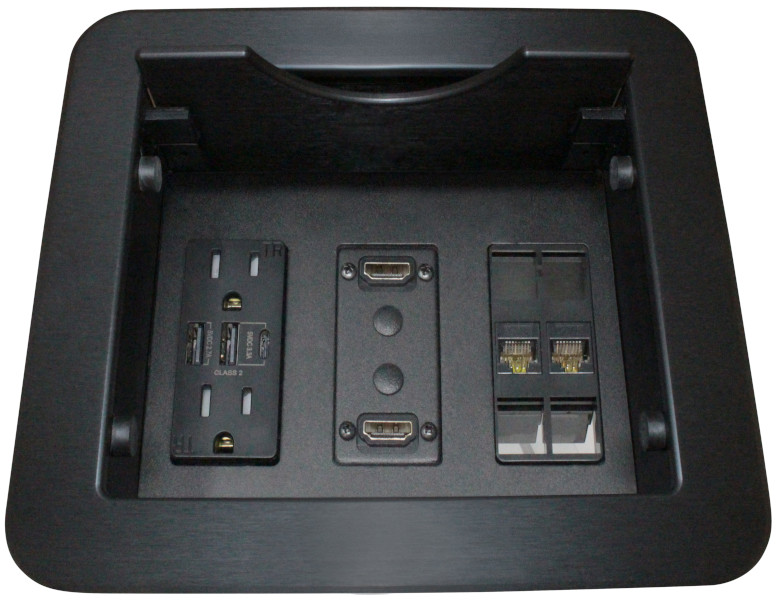

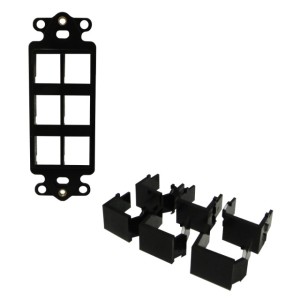

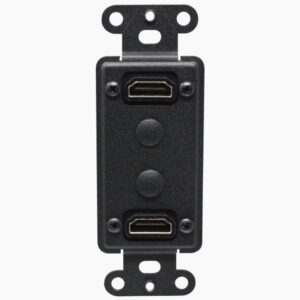

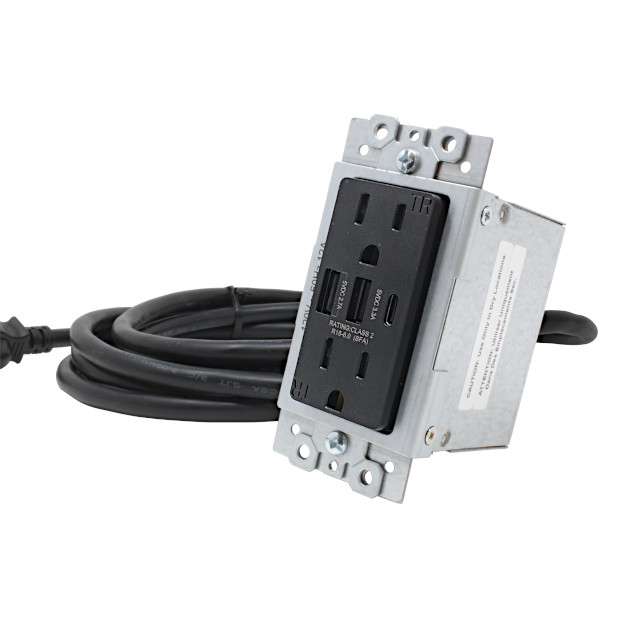

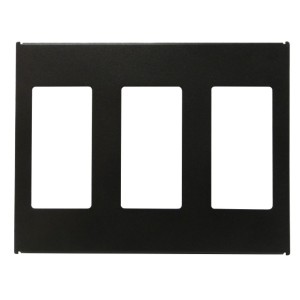

This product includes the CNK202 Cable-Nook Modular Tabletop Interconnect Box with folding cover, and the SP3504SC faceplate. The faceplate is pre‑configured with one CNK-IP-200 power module, the six snap-in port CNK‑IP‑211 plate, and the CNK-IP-214 Dual HDMI & blanked Audio Plate. The CNK-IP-200 modules each have dual AC power and triple USB charging ports (2 USB-A, 1 USB-C). The CNK‑IP‑211 snap-in plate comes with two RJ45 snap-ins and four blank snap‑in ports that can be customized by Altinex or you can use your own snap‑in assemblies.

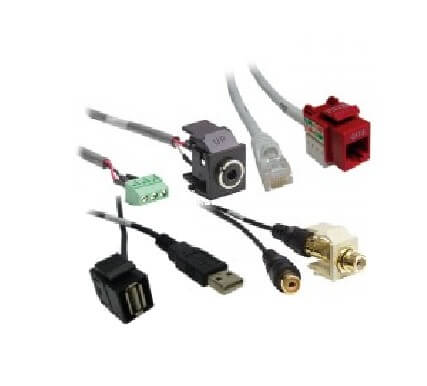

The assembled unit provides 2 AC power receptacles, 3 USB charging ports (2 USB-A, 1 USB-C), 2 connectors for digital video, two blanked audio, and six snap‑in ports. Two of the six snap‑in ports are pre‑populated with black RJ45 F/F connectors (SN1318-RJ45-B). The remaining four are populated with blank covers (CM11301). The blank covers as well as a wide variety of snap‑ins may be purchased from Altinex.
The HDMI and snap-in connectors are bulkhead style connectors. The bottom (or inside) connectors can connect to off‑the‑shelf cables which connect permanently to the presentation system.
Technical Specifications
|
Mechanical |
CNK220 |
| Hole Sets | 23 |
| Minimum Table Thickness | 0.5 in (13 mm) |
| Maximum Table Thickness | 3.5 in (89 mm) |
Housing Dimensions |
|
| Height | 4.7 in (119 mm) |
| Width | 6.2 in (157 mm) |
| Depth | 5.4 in (137 mm) |
Bezel Dimensions (surface) |
|
| Width | 7.9 in (200 mm) |
| Depth | 7.1 in (179 mm) |
| Color: CNK202 | Black Brushed Aluminum |
| Material | Aluminum |
| T° Operating | 10°C-35°C |
| T° Maximum | 50°C |
| Humidity | 90% non-condensing |
| MTBF (calculations) | 40,000 hrs (min.) |
