CNK212S

COMPLETE CNK200S CABLE NOOK, CNK-IP-210, 2X CNK-IP-200, 1X CNK-IP-217, 2X SN1318-RJ45-B, CLEAR BRUSHED ALUMINUM FINISH

  • Installs into tabletop
  • Convenient access to cable ends or fixed connectors
  • Modular configuration: more room for additional connectors
  • Clear brushed aluminum finish
  • Simple, cost-effective interconnect solution
  • UL/cUL Listed CNK-IP-200 power module:
  • 12 Amp AC capacity
  • Six (6) USB ports: Four (4) type A 2.0 and two (2) type C (3.3 A)
  • Comes with 9.5 ft. (2.9 m) power cable terminated with a single male plug
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • Ten year warranty available
SKU: CNK212S Categories: , ,

  CNK212S Overview

The CNK212S provides a simple, effective way of hiding/storing multimedia cables and connectors and is designed for boardrooms and conference rooms. The cables remain connected to a presentation system, enabling the user to access connections to AC power, USB charging, HDMI, network, and other media sources.

  Summary

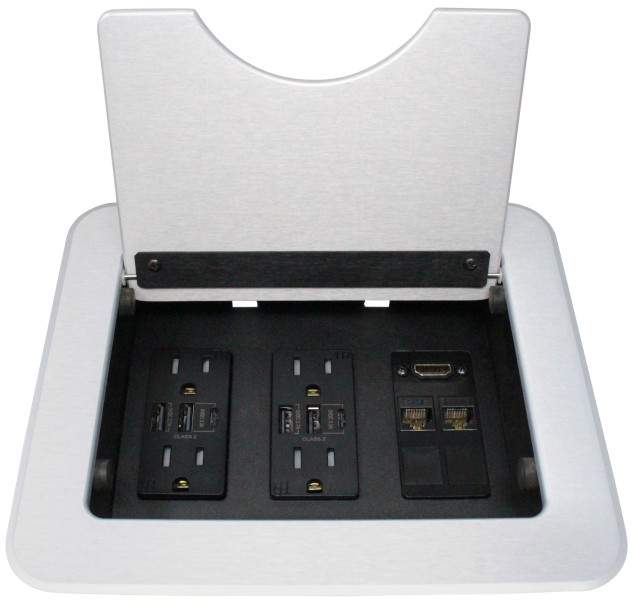

The CNK212S includes the CNK200S Cable Nook Modular Tabletop Interconnect Box and the CNK‑IP‑210 face plate. The faceplate is pre‑configured with two CNK-IP-200 modules and one CNK‑IP‑217 HDMI module. The CNK-IP-200 modules each have dual AC power, dual USB type A 2.0, and a USB type C (3.3 A) charging ports. The CNK‑IP‑217 HDMI plus snap in plate has one HDMI pass‑through connector and four blank snap‑in ports that can be customized by Altinex or you can use your own snap‑in assemblies.

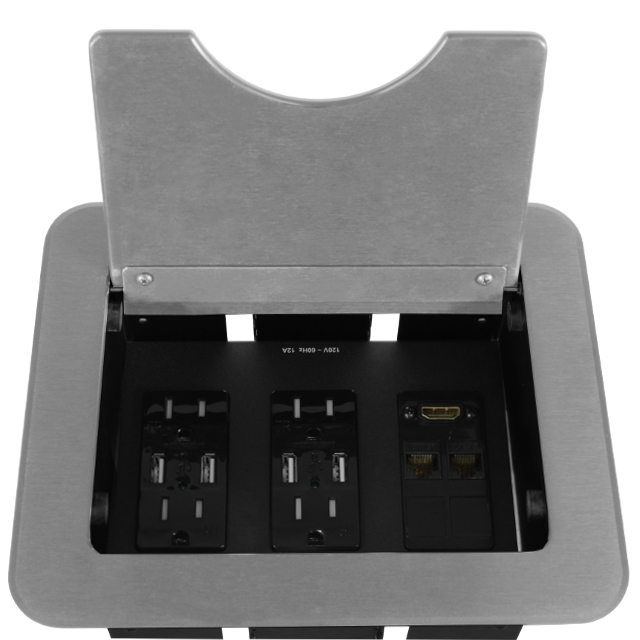

The assembled unit provides 4 AC power receptacles, 6 USB charging ports, one connector for digital video, and four snap‑in ports. Two of the four snap‑in ports are pre‑populated with black RJ45 F/F connectors (SN1318-RJ45-B). The remaining two are populated with blank covers (CM11301). The blank covers as well as a wide variety of snap‑ins may be purchased from Altinex.

The HDMI and snap-in connectors are bulkhead style connectors. The bottom (or inside) connectors can connect to off‑the‑shelf cables which connect permanently to the presentation system.



  Technical Specifications

Table 1: CNK212S General

Features/Description

CNK212S

Pass -Through

Video, DigitalHDMI Type A F-F (1)
bulkhead
Network (CAT-6)Snap-in RJ-45 F-F (2)
bulkhead F-F
Snap-In ConnectorsBlank covers installed (2)

Pass-Through AC power 9ft (3.0 m)

120 VAC, 60 Hz, 12ANEMA 5-15R (4)
Plug TypeNEMA 5-15P (2)
USB PowerUSB 2.0 Type A F (4)

Agency approval

UL/C-UL Listed AC modulesFile E254082

Compatible

Snap-In ConnectorsAll Altinex Snap-In
Connectors

Accessories Included

Mounting HardwareThumb Screws (2),
Wing Nuts (2)
Mounting Brackets (2)

Table 2: CNK212S Mechanical

Mechanical

CNK212S

Minimum Table Thickness0.5 in (13 mm)
Maximum Table Thickness3.5 in (89 mm)

Housing Dimensions

Height4.7 in (119 mm)
Width6.0 in (153 mm)
Depth4.7 in (119 mm)

Bezel Dimensions (surface)

Width7.9 in (200 mm)
Depth6.5 in (166 mm)
Color:

CNK212
CNK212S


Black
Brushed Aluminum
MaterialAluminum
T° Operating10°C-35°C
T° Maximum50°C
Humidity90% non-condensing
MTBF (calculations)40,000 hrs (min.)

Table 3: CNK212S Electrical

Electrical

CNK212S

USB Charging12.5 W per port,
(2.5A at 5VDC)
Power Rating
(pass through AC power)
120 VAC, 60 Hz
12 A Total Current
(per dual outlet module)

  Application Diagram

  Dimensions

  Included Accessories & Finish Options

CNK200S

Identical to the CNK200 but with a clear brushed (“Silver”) finish for the bezel.

The CNK200S can also be used to build custom configurations tailored to your needs. Have different setup in mind? The CNK200S makes it easy to adapt to your design.

CNK-IP-210

3-position face plate for CNK200 for Decora style inserts. Use with all CNK-IP-2xx components.

SP1104SC

Preconfigured  CNK-IP-210 face plate with CNK-IP-200 AC power and three (3) USB module.

CNK-IP-200

Single gang Decora style power module with dual AC & dual charging (3 amp total) USB ports. UL/cUL listed.

CNK-IP-217

Decora style plate with panel mounted HDMI pass through and 4 Keystone snap in ports for use with our Snap-In Connector Assemblies.

SN1318-RJ45-B

Black RJ-45 Keystone snap-in pass-through connector



Snap-In Connector Assemblies

Need to add or swap snap-in connectors? A wide range of Snap-In Connector Assemblies is available to configure your connections, exactly as you need them



Do you prefer a black finish? Check out the CNK212:

CNK212

Complete CNK200 Cable Nook, Black Brushed Aluminum Finish with CNK-IP-210, 2X CNK-IP-200, 1X CNK-IP-217, 2X SN1318-RJ45-B
