CNK212
COMPLETE CNK200 CABLE NOOK, BLACK BRUSHED ALUMINUM FINISH WITH CNK-IP-210, 2X CNK-IP-200, 1X CNK-IP-217, 2X SN1318-RJ45-B
- Installs into tabletop
- Convenient access to cable ends or fixed connectors
- Modular configuration: more room for additional connectors
- Black brushed aluminum finish
- Simple, cost-effective interconnect solution
- UL/cUL Listed CNK-IP-200 power module:
- 12 Amp AC capacity
- Six (6) USB ports: Four (4) type A 2.0 and two (2) type C (3.3 A)
- Comes with 9.5 ft. (2.9 m) power cable terminated with a single male plug
- As seen in the Altinex Table Top Interconnect Guide
- Downloadable cutout template available
- Ten year warranty available
CNK212 Overview
The CNK212 provides a simple, effective way of hiding/storing multimedia cables and connectors and is designed for boardrooms and conference rooms. The cables remain connected to a presentation system, enabling the user to access connections to AC power, USB charging, HDMI, network, and other media sources.
Summary

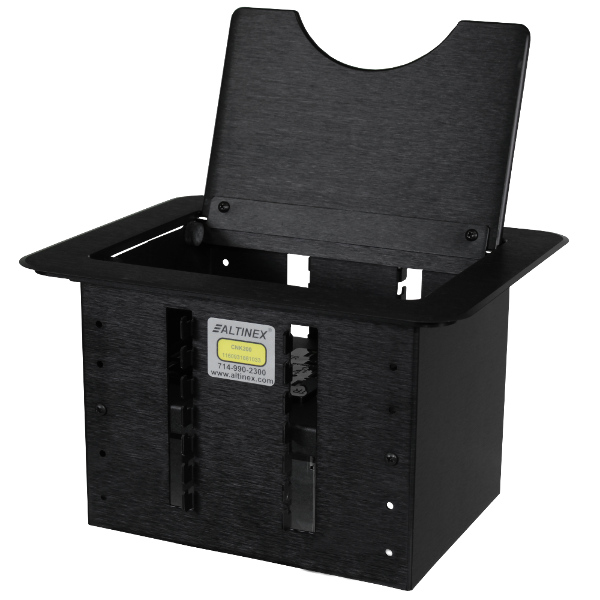

The CNK212 includes the CNK200 CableNook Modular Tabletop Interconnect Box and the CNK‑IP‑210 face plate. The faceplate is pre‑configured with two CNK-IP-200 modules and one CNK‑IP‑217 HDMI module. The CNK-IP-200 modules each have dual AC power, dual USB type A 2.0, and a USB type C (3.3 A) charging ports. The CNK‑IP‑217 HDMI plus snap in plate has one HDMI pass‑through connector and four blank snap‑in ports that can be customized by Altinex or you can use your own snap‑in assemblies.

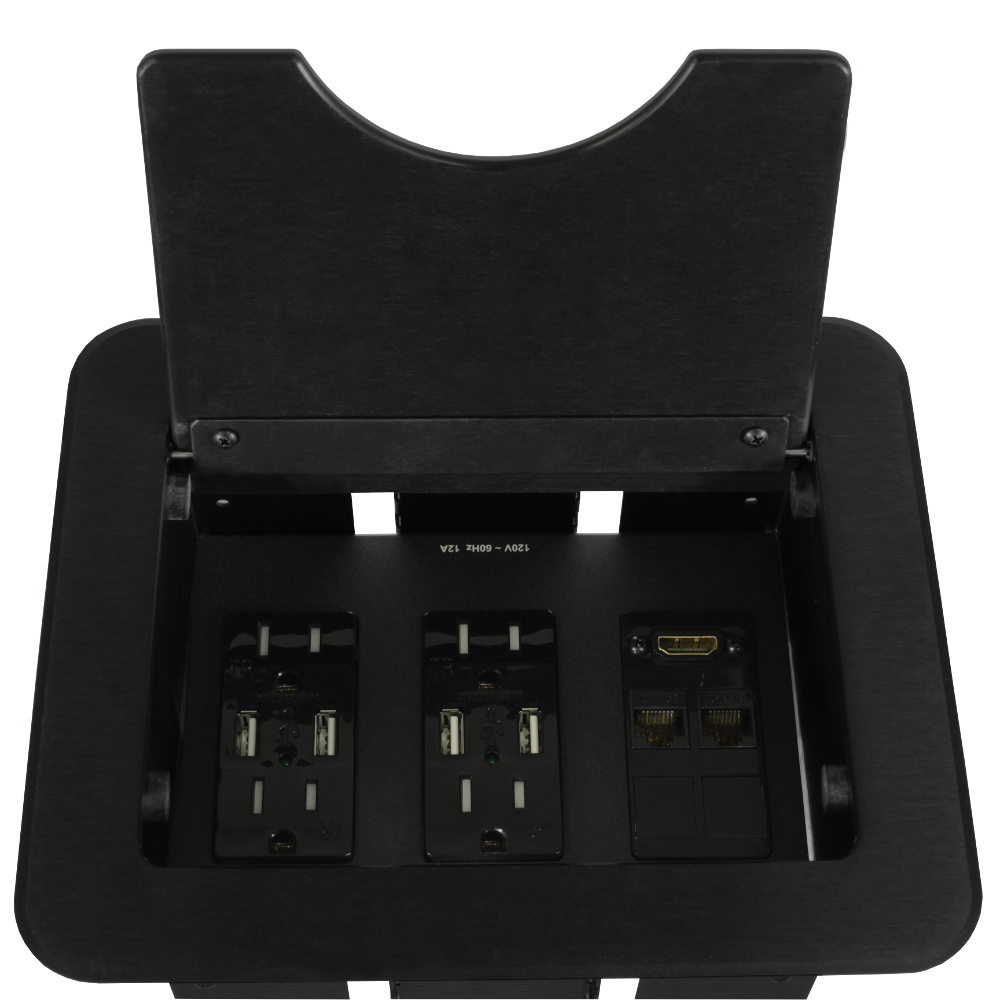

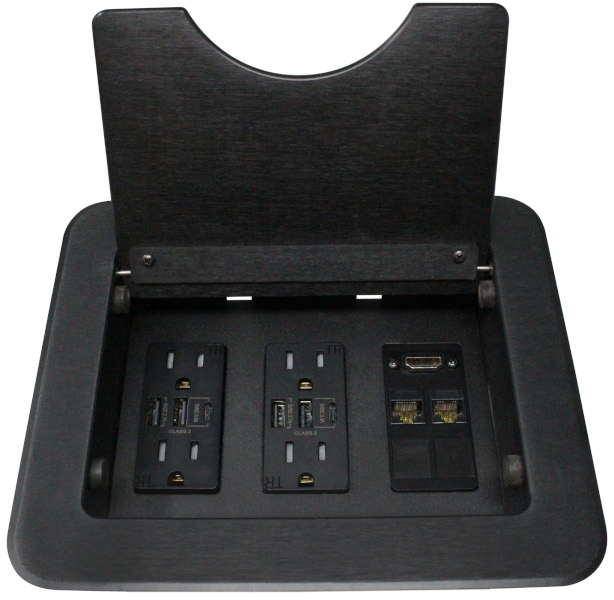

The assembled unit provides 4 AC power receptacles, 6 USB charging ports, one connector for digital video, and four snap‑in ports. Two of the four snap‑in ports are pre‑populated with black RJ45 F/F connectors (SN1318-RJ45-B). The remaining two are populated with blank covers (CM11301). The blank covers as well as a wide variety of snap‑ins may be purchased from Altinex.
The HDMI and snap-in connectors are bulkhead style connectors. The bottom (or inside) connectors can connect to off‑the‑shelf cables which connect permanently to the presentation system.
Technical Specifications
Table 1: CNK212 General
|
Features/Description |
CNK212 |
Pass -Through |
|
| Video, Digital | HDMI Type A F-F (1) bulkhead |
| Network (CAT-6) | Snap-in RJ-45 F-F (2) bulkhead F-F |
| Snap-In Connectors | Blank covers installed (2) |
Pass-Through AC power 9ft (3.0 m) |
|
| 120 VAC, 60 Hz, 12A | NEMA 5-15R (4) |
| Plug Type | NEMA 5-15P (2) |
| USB Power | USB 2.0 Type A F (4) |
Agency approval |
|
| UL/C-UL Listed AC modules | File E254082 |
Compatible |
|
| Snap-In Connectors | All Altinex Snap-In Connectors |
Accessories Included |
|
| Mounting Hardware | Thumb Screws (2), Wing Nuts (2) Mounting Brackets (2) |
Table 2: CNK212 Mechanical
|
Mechanical |
CNK212 |
| Minimum Table Thickness | 0.5 in (13 mm) |
| Maximum Table Thickness | 3.5 in (89 mm) |
Housing Dimensions |
|
| Height | 4.7 in (119 mm) |
| Width | 6.0 in (153 mm) |
| Depth | 4.7 in (119 mm) |
Bezel Dimensions (surface) |
|
| Width | 7.9 in (200 mm) |
| Depth | 6.5 in (166 mm) |
| Color: CNK212 | Black Brushed Aluminum |
| Material | Aluminum |
| T° Operating | 10°C-35°C |
| T° Maximum | 50°C |
| Humidity | 90% non-condensing |
| MTBF (calculations) | 40,000 hrs (min.) |
Table 3: CNK212 Electrical
|
Electrical |
CNK212 |
| USB Charging | 12.5 W per port, (2.5A at 5VDC) |
| Power Rating (pass through AC power) | 120 VAC, 60 Hz 12 A Total Current (per dual outlet module) |
