CNK202

CABLE-NOOK® MODULAR TABLETOP INTERCONNECT BOX WITH FOLDING COVER (BLACK)

  • Installs directly into tabletop
  • Convenient access to cable ends or fixed connectors
  • Modular configuration: more room for additional connectors
  • Black brushed aluminum finish
  • Simple, cost-effective interconnect solution
  • Sold as an empty unit (pre-configured units such as CNK220 and CNK222 are also available)
  • 23 Slots available for Power, grommets, retaining brackets or Altinex CNK-IP Insert Plates. See “Related Items” tab below.
  • UL/cUL listed CN5008US power module available
SKU: CNK202 Categories: , ,

  CNK202 Overview

The CNK202 Cable Nook provides a simple yet effective way of hiding and storing multimedia cables and fixed connectors. The cables remain connected to a presentation system, providing the user easy access to them for connection to video, audio, and other required media sources.

  Summary

Designed for boardrooms and conference rooms, the Modular Cable Nook provides a simple, effective way of hiding or storing multimedia cables and connectors. The cables remain connected to a presentation system, providing the user easy access to connections for video, audio, and other media sources.

The Modular Cable Nook uses a trapdoor type, half-moon lid that remains flush with the table when not in use. To access the cables or connectors, simply lift the lid and pull the ends out, or plug cables into any installed fixed connectors. The lid closes easily even with several cables in use. After the presentation, the cable ends are returned to the Cable Nook for safe storage.

Cables feed through the Cable Nook to the underside of the table, enabling connection to the presentation system. The weight of the cables helps to feed the slack through the unit and the cable ends are kept from falling by a special adjustable retaining bracket. The bracket uses rounded edges to prevent kinking and is adjustable to both height and depth.

A variety of accessories is available for the Modular Cable Nook, including power outlets, fixed connectors, and snap-in port panels.

  Technical Specifications

Table 1: CNK202 General

Features/Description

CNK202

Inputs

Video/AudioN/A

Outputs

Video/AudioN/A

Compatibility

Cable Nook Standard and
Customizable Plates
CN5000 Series,
CNK-IP-200 Series
Snap-In ConnectorsAll ALTINEX Snap-In
Connectors

Accessories Included

Mounting HardwareScrews (4),
Mounting Brackets (4)
(attached to the unit)
Arm Hex L-Key

Table 2: CNK202 Mechanical

Mechanical

CNK202

Hole Sets23
Minimum Table Thickness0.5 in (13 mm)
Maximum Table Thickness3.5 in (89 mm)

Housing Dimensions

Height4.7 in (119 mm)
Width6.2 in (157 mm)
Depth5.4 in (137 mm)

Bezel Dimensions (surface)

Width7.9 in (200 mm)
Depth7.1 in (179 mm)
Color:

CNK202
CNK202S


Black
Brushed Aluminum
MaterialAluminum
T° Operating10°C-35°C
T° Maximum50°C
Humidity90% non-condensing
MTBF (calculations)40,000 hrs (min.)

  Application Diagram

  Dimensions

  Related Products

CNK Optional Accessories

The Cable-Nook has 23 slots in the installed bracket/plate shelf. Order up to the number of accessories as can be accommodated by the 23-slot shelf.

Each accessory comes with its own retaining screws.

(Note: These accessories are not compatible with Decora style)

CN5008US

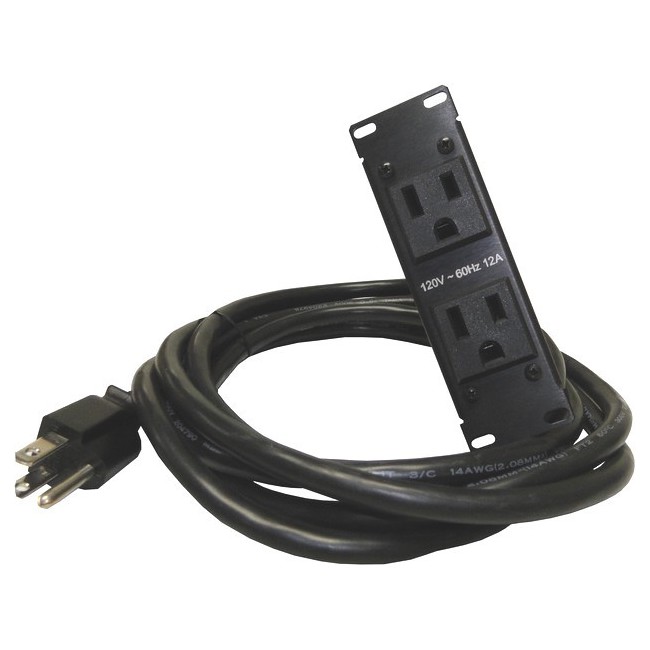

Two standard AC power outlets for U.S. , Canada , Mexico , and Japan . Comes with 6 ft/1.8 m cable terminated with a single male plug. Covers 6 slots.

CN5003UK

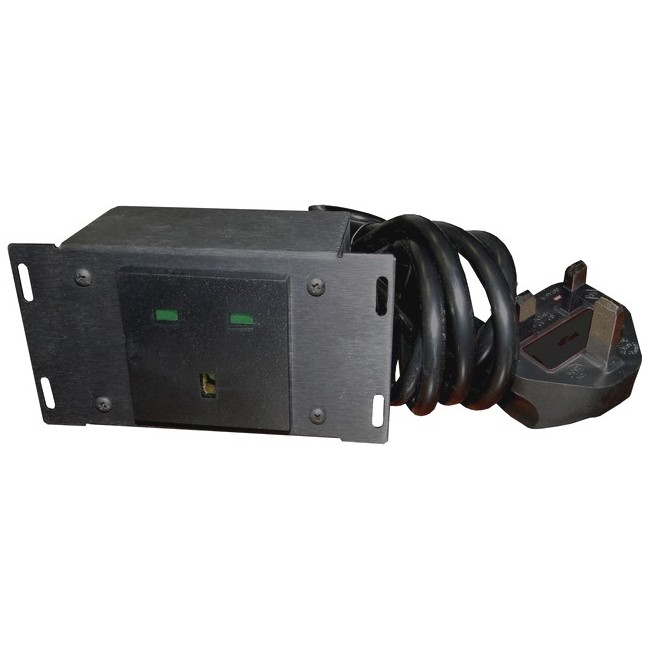

One AC power outlet for usage in U.K, Singapore , and Hong Kong . Comes with 6 ft/1.8 m cable terminated with a male plug. Covers 11 slots..

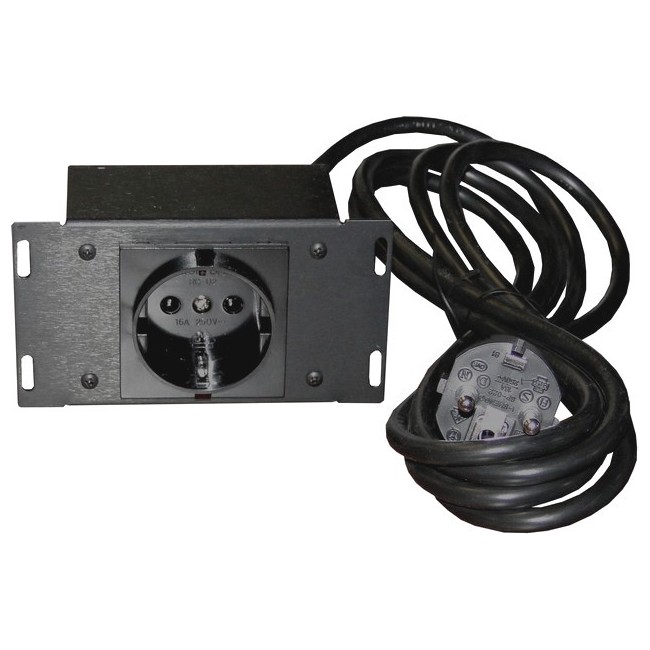

CN5005EU

One AC power outlet for usage in Continental Europe, including Germany, France, Italy, Spain, et al. Comes with 6 ft/1.8 m cable terminated with a male plug. Covers 11 slots.

CN5006IN

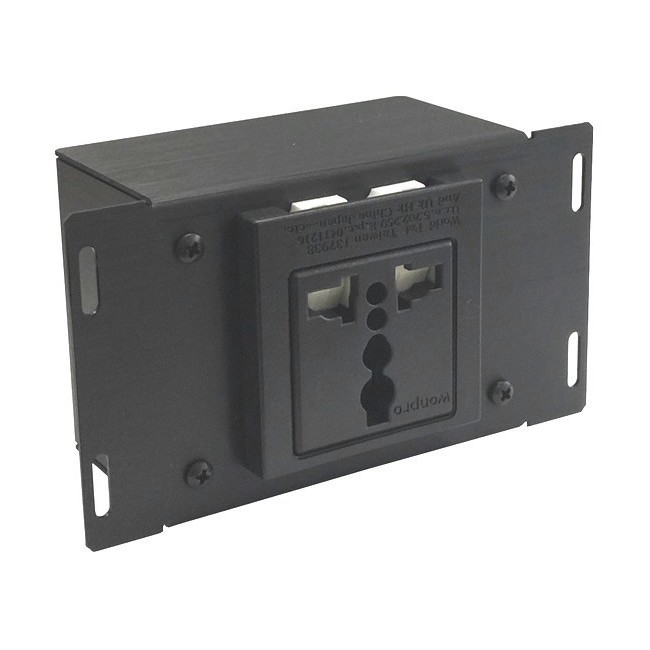

One AC power outlet for usage in India. Comes with 8 ft./2.5 m power cord.

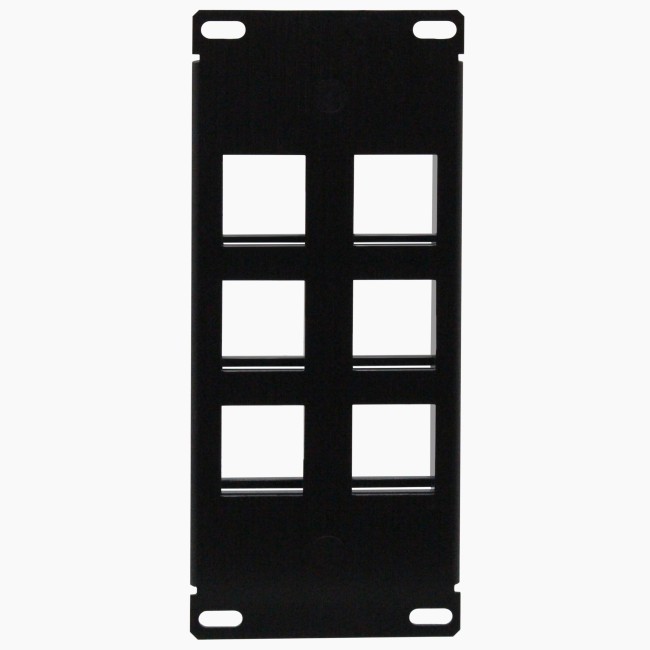

CNK-IP-101

Insert plate with 6 empty ports for Snap-in Connectors . Covers 8 slots. See Snap-In Cables page.

CN5013EP_full_small

CN5013EP

Insert plate with three empty snap-in ports. Covers 4 slots. See Snap-In Cables page.

CN5014AV

Insert plate with 15-pin HD female and 3.5 mm female connectors. Includes 6 ft/1.8 m cable with male ends. Covers 4 slots.

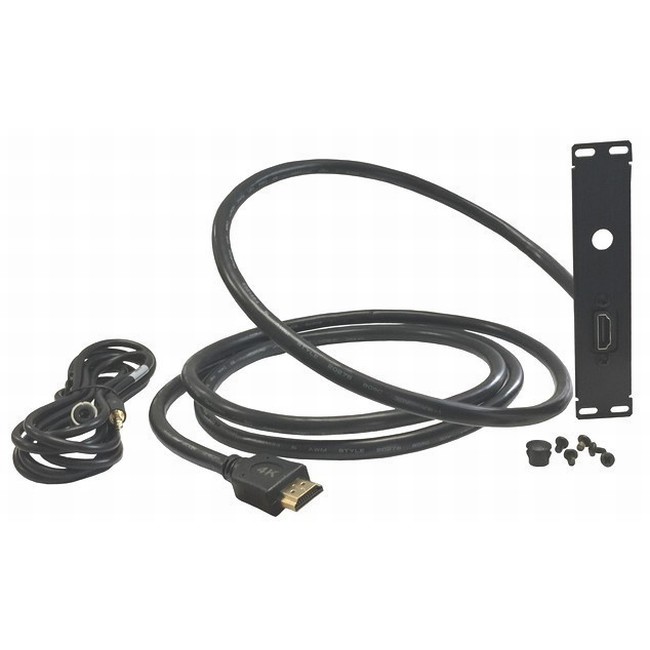

CN5015AV

Insert plate with Digital video (HDMI F) and 3.5 mm female connectors. Includes 6 ft/1.8 m cable with male ends. Covers 4 slots.

CN5016AV

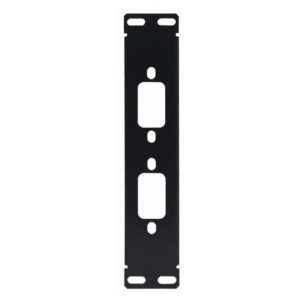

Insert plate with 2 empty port for D-Sub connectors.

CN5010RB

These brackets can be added to the Cable-Nook, and adjusted to catch cable ends of varying widths. The shelf itself can be adjusted to different depths inside the box. Comes with 5 brackets and 10 retaining screws. Each bracket covers 1 slot.

CN5020RG

These grommet plates are designed to provide easy cable retention within the Cable Nook. Contains 4 plates with retaining bushings and caps for 6 openings, along with screws for installation into the Cable Nook unit.

CN5021RG

These grommets are designed for use with dual (2) International Power Supplies and provide easy cable retention within the Cable Nook. Contains 2 plates with retaining bushings for 3 openings, and screws for connection into the Cable Nook unit.

CNK Optional Accessories – Decora style inserts

Decora style inserts are also offered for the Cable-Nook. To customize your CNK unit with Decora inserts, choose between the CNK-IP-210 or SP1104SC face plates (shown below) and insert any of the CNK-IP-2xx Decora inserts in the face plate openings.

Each accessory comes with its own retaining screws.

CNK-IP-210

3-position face plate for CNK200 for Decora style inserts. Use with all CNK-IP-2xx components

SP1104SC

Preconfigured face plate with CNK-IP-200 AC power and charging USB module.

SP3504SC

Standard Configuration Plate for CNK210 and CNK210S. CNK-IP-200 power module with UL/cUL dual AC & dual charging (3 amp total) USB ports, CNK-IP-212 module with panel mounted HDMI, VGA & dual 3.5mm audio jacks and CNK-IP-211 6-port Keystone snap in module preconfigured with 2x black RJ45 barrel connectors and 4 blank covers

CNK-IP-200

Single gang Decora style power module with dual AC & dual charging (3 amp total) USB ports. UL/cUL listed.

CNK-IP-211

6-port Keystone snap in module with 6 blank covers. Use with our Snap-In Connector Assemblies.

CNK-IP-212

Hybrid Decora style plate with HDMI/VGA & audio. Pass through style.

CNK-IP-213

Analog Decora style plate with dual VGA & audio. Pass through style.

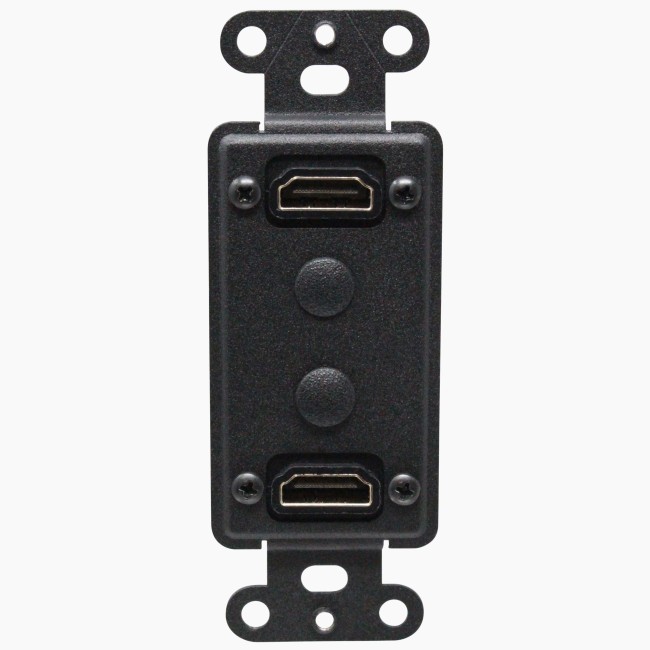

CNK-IP-214

Digital Decora style plate with dual HDMI & audio. Pass through style.

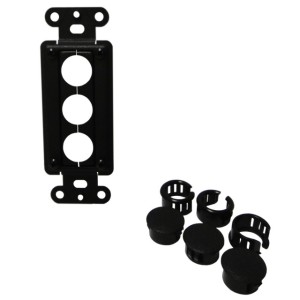

CNK-IP-215

Decora style plate with 3x 0.625in (15.88mm) grommet holes. Split design for simple cable insertion.

CNK-IP-216

Decora style plate with panel mounted VGA pass through and 4 Keystone snap in ports for use with our Snap-In Connector Assemblies.

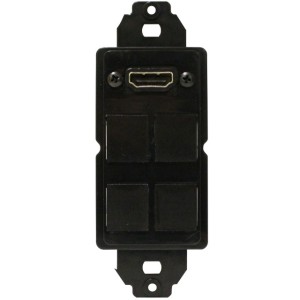

CNK-IP-217

Decora style plate with panel mounted HDMI pass through and 4 Keystone snap in ports for use with our Snap-In Connector Assemblies.

Snap-In Connector Assemblies

A wide range of Snap-In Connector Assemblies is available to configure your connections, exactly as you need them

CNK Pre-configured units

Pre-configured CNK202 Cable Nooks offer a wide variety of AV and network connections and require minimal assembly.

CNK220

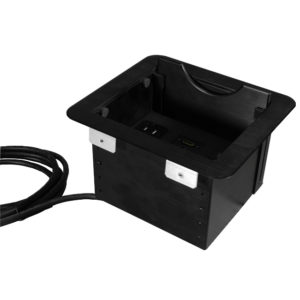

Complete CNK202 Cable Nook with SP3504SC

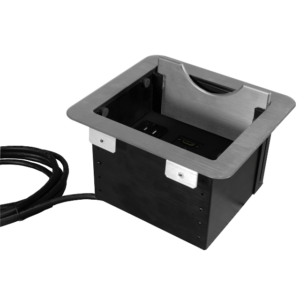

CNK220S

Identical to the CNK202 but with a clear brushed (“Silver”) finish for the bezel.

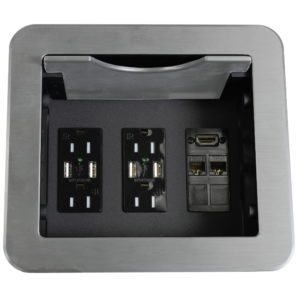

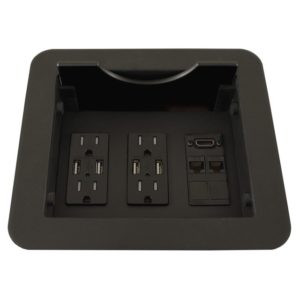

CNK222

Complete CNK202 Cable Nook®, Black Brushed Aluminum finish with CNK-IP-210, 2X CNK-IP-200, 1X CNK-IP-217, 2X SN1318-RJ45-B



CNK222S

Ccomplete CNK202S Cable Nook®, Clear Brushed Aluminum finish with CNK-IP-210, 2X CNK-IP-200, 1X CNK-IP-217, 2X SN1318-RJ45-B
