CN5008US

DUAL AC POWER MODULE FOR CABLE-NOOK – USA/CANADA

UL/cUL listed
Two AC power connections
12 amp current rating
Designed for CNK series table top units
9 ft (2.75 m) power cord
RoHS compliant

SKU: CN5008US Category: Accessories

CN5008US Overview

The CN5008US is an AC power outlet designed for use in the U.S., Canada, Mexico, and Japan. It comes with a 9 ft/1.8 m attached power cable terminated with a single male plug, and covers 6-screw hole sets.

Technical Specifications

Table 1: CN5008US General

Features/Description	CN5008US
Pass-Through AC Power	9-10 ft (2.7 to 3.0 m)
120 VAC, 60 Hz, 12 A	NEMA F (2) NEMA M (1)
Compatibility
Cable-Nook Series	Requires 6 hole sets *
Agency Approvals
UL Listed	File E254082
Safety	UL, CUL
Accessories Included
Hardware	Mounting screws

Table 2: CN5008US Mechanical

Mechanical	CN5008US
Material/Color	0.05 in Al, Black
Height (face plate)	4.49 in (114.1 mm)
Height (body only)	3.54 in (89.9 mm)
Width	1.36 in (34.5 mm)
Depth	1.75 in (44.5 mm)
Net Weights	1.3 lb (0.59 kg)
Shipping Weights (approximate)	2.0 lb (0.9 kg)
T° Operating	10°C-35°C
T° Maximum	50°C
Humidity	90% non-condensing

Table 3: CN5008US Electrical

Electrical

CN5008US

Pass-Through AC
(total through both receptacles)

1440 W max.

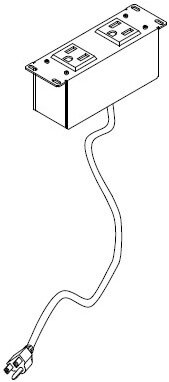

Dimensions

Documents

CN5008US Full Size Image

1 file(s) 4.87 MB

Download

CN5008US User Guide

1 file(s) 0.00 KB

Download
