PNP400

POP-N-PLUG DUAL-SIDED INTERCONNECT BOX

  • Dual-sided connectivity
  • Gas-spring for smooth operation
  • Ultra-flat surface when closed
  • 6 ft pre-terminated cables for quick installations
  • Customizable connectors and finish
  • Many custom snap-in assemblies
  • Compatible with SP3500SC
  • NOT AVAILABLE FOR SALE IN CANADA
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • Ten year warranty
SKU: PNP400 Category:

  PNP400 Overview

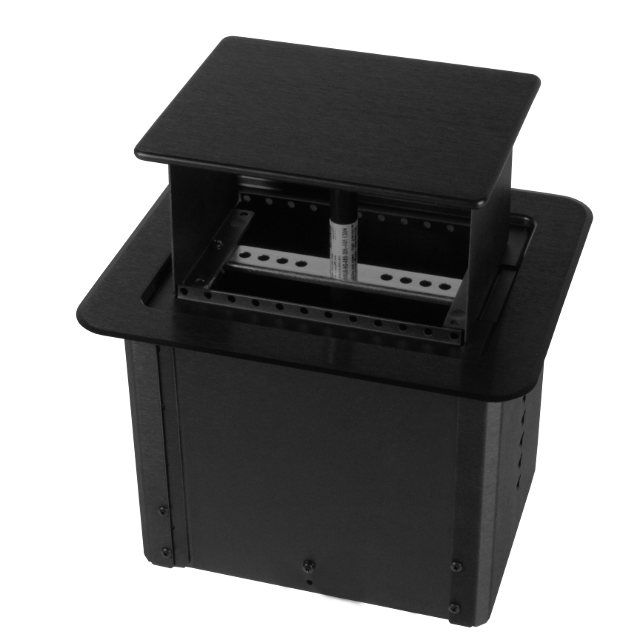

The PNP400 is an empty dual-sided interconnect box that is configurable with sectional plates to meet your A/V requirements.

  Summary

The PNP400 Interconnect Tabletop Solutions is designed for installation into a conference room table. The PNP400 provides a means of connecting audiovisual, network, and power sources into a presentation system. It is ideal for use with ALTINEX computer video interfaces like the VA6804FC. The PNP400 can “pop-up” into a raised position to provide access to connectors, or it can be lowered into a table when not in use. The PNP400 uses a tower-type construction with a gas spring to raise the interface into position above the tabletop.

The PNP400 Interconnect has two openings on either side of the unit, servicing both sides of a table. Several optional sectional plates are available for the following: AC power, computer video (15-pin HD), composite video (RCA), audio (RCA), computer audio (3.5 mm stereo), phone/modem (RJ-11), RS-232 (DB9), network (RJ45), etc. Contact the ALTINEX sales Department for additional information regarding optional connectors.

The PNP400 Interconnect is designed for use with tables ranging from 0.25-4.0 in (6-102 mm) thick. The PNP400 comes in a standard matte black finish, Custom finishes for the top of the PNP400 allow the unit to accent any tabletop and are available on a custom order basis for an additional charge.

ALTINEX products are protected by the following patents:

D534495, D475016, D580357, D446188, D442143



  Related Products

PNP400 Accessories

The PNP400 is an empty enclosure. 6 slots are available for sectional plates on each side. Sectional plates are sold separately.

See a list of the sectional plates and related product below.

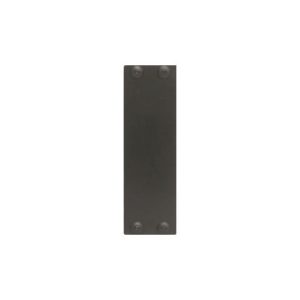

SP1001BL

1 SLOT BLANK SECTIONAL COVER PLATE

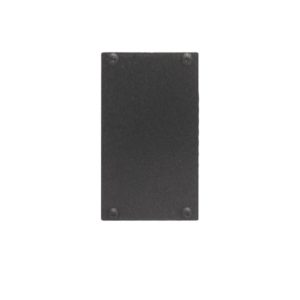

SP1002BL

2 SLOT BLANK SECTIONAL COVER PLATE

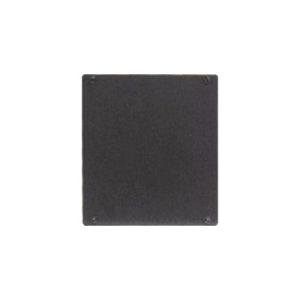

SP1003BL

3 SLOT BLANK SECTIONAL COVER PLATE

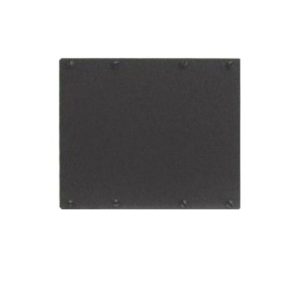

SP1004BL

4 SLOT BLANK SECTIONAL COVER PLATE

SP1100SC

EMPTY STANDARD CONFIGURATION PLATE

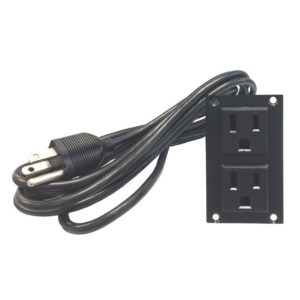

SP2102US

DUAL AC POWER OUTLET FOR U.S. & CANADA

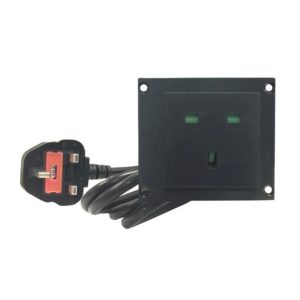

SP2201UK

AC POWER OUTLET, U.K./SINGAPORE/HONG KONG (3 SLOTS)

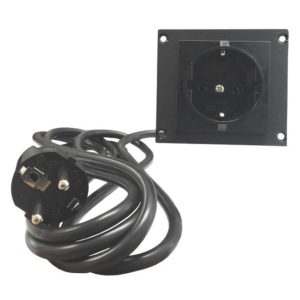

SP2301CE

AC POWER OUTLET FOR CONTINENTAL EUROPE (3 SLOTS)

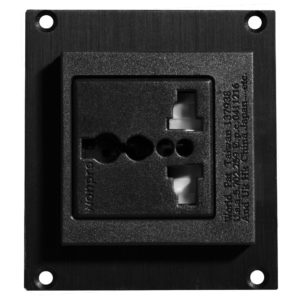

SP2601UN

AC POWER OUTLET, UNIVERSAL (3 SLOTS)

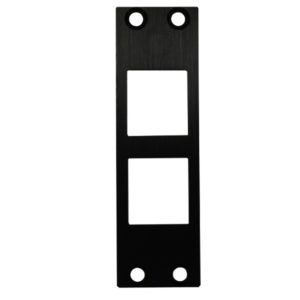

SP3102EP

DUAL EMPTY KEYSTONE SNAP-IN PORT

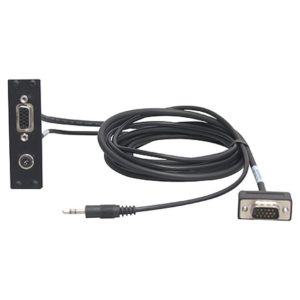

SP3201AV

VGA F + 3.5MM STEREO TO VGA M + 3.5MM MALE 6FT (1 SLOT)

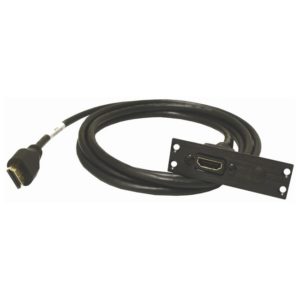

SP3210AV

HDMI F TO M 6 FT, SECTIONAL PLATE (1 SLOT)

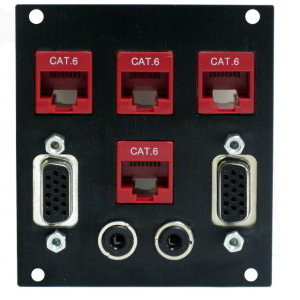

SP3212AV

4 KEYSTONE, 2 VGA, 2 3.5MM SECTIONAL PLATE

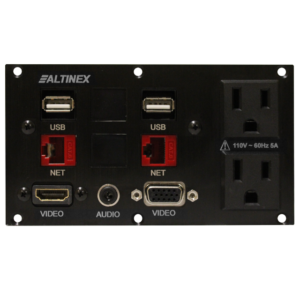

SP3502SC

STANDARD CONFIGURATION PLATE

Snap-In Connector Assemblies

Related Product:

PNP400C

POP-N-PLUG DUAL-SIDED INTERCONNECT BOX (CUSTOM)

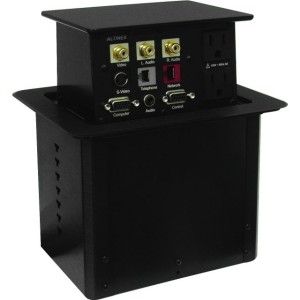

PNP402C

CUSTOMIZABLE POP-N-PLUG DUAL-SIDED INTERCONNECT BOX
