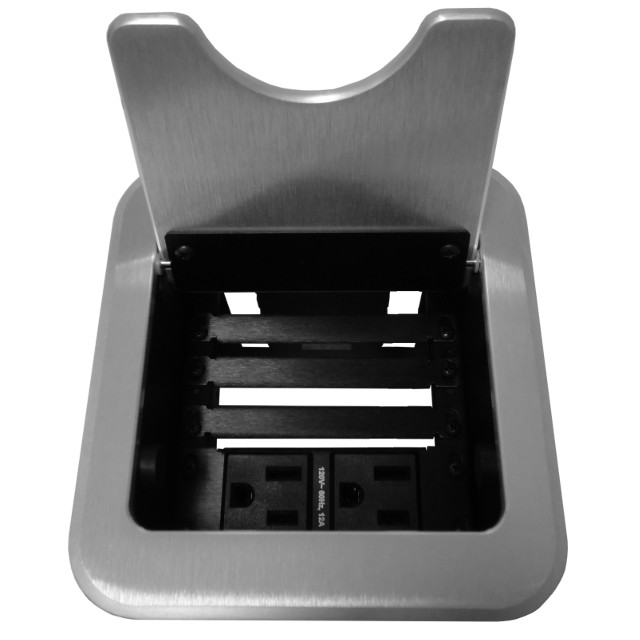

CNK241S
CABLE-NOOK JR. WITH US POWER OUTLET & RETAINING BRACKETS (SILVER)
- Compact enclosure installs into tabletop
- Convenient access to cable ends or fixed connectors
- Clear brushed aluminum finish (“Silver”)
- Optional retaining bracket adjusts for range of cable types
- Modular configuration: more room for additional connectors
- Simple, cost-effective interconnect solution
- CN5102US is UL and cUL listed
- As seen in the Altinex Table Top Interconnect Guide
- Downloadable cutout template available
- Ten year warranty
CNK241S Overview
The CNK241S Cable-Nook Jr. provides a simple yet effective way of hiding and storing multimedia cables and fixed connectors. The cables remain connected to a presentation system, enabling the user easy access to them and for connection to video, audio, and other media sources needed.
Summary
This package covers the basic usage needs of many Cable-Nook Jr. users as it supplies power receptacles and retaining brackets to hold cable ends. Brackets may also be removed to accommodate bulkier cable. Some assembly required.
Includes the CNK221S Cable-Nook Jr., the CN5102US dual AC power insert plate, and CN5110RB set of five retaining brackets.
Also available with a black brushed aluminum finish as the CNK241:
Also available is our full range of retractable cables designed specifically for the Cable-Nook® and Cable-Nook Jr.®
ALTINEX products are protected by the following patents: D465201
Technical Specifications
CNK241S |
|
| Interior Brackets | 4-40, 0.25" spacing (x13) |
| Retaining Rails | 3.5" x 0.4" (x5) |
| Pass-through AC 9-10 ft. (2.7-3.0 m) | NEMA F (2) to M (1) |
Mechanical |
CNK Jr. |
All CNK Jr.'s |
|
| Maximum Table Thickness | 3.0 in (76 mm) |
| Height (above surface) | 2.7 in (67 mm) |
| Height (below surface) | 4.8 in (121 mm) |
Standard CNK Jr.'s |
|
| Bezel Width CNK221/241/261 | 4.6 in (117 mm) 5.4 in (137 mm) |
| Bezel Depth | 4.9 in (124 mm) |
Custom Round Bezel |
|
| Bezel Diameter | 5.8 in (146 mm) |
Stackable Option |
|
| Stackable Bezel Depth | 4.40 in (112 mm) |
| Stackable Bezel Width | 4.10 in (104 mm) |
| Frame Depth | 5.12 in (130 mm) |
| Frame Width, 2-Up | 9.18 in (233 mm) |
| Frame Width, 3-Up | 13.55 in (344 mm) |
| Frame Width, 4-Up | 17.91 in (455 mm) |
All CNK Jr.'s |
|
| Standard Finish | Matte Black |
| Alternative Finish | Brushed Aluminum |
| T° Operating | 10°C-35°C |
| T° Maximum | 50°C |
| Humidity | 90% non-condensing |
Electrical |
CNK241/261 |
| Power Rating (pass-through AC power) | 120VAC, 60Hz, 12A Total Current |
Application Diagram
Dimensions
Related Products
|
CNK Optional Accessories The Cable Nook Jr. has 13 slots available for power, retaining brackets, grommets or Altinex CNK-IP Plates. Each module comes with retaining screws. For more space, the larger CNK200 has 23 slots available. |
||||||||||||||||||||||||||||
|
