CNK200S

CABLE-NOOK® MODULAR TABLETOP INTERCONNECT BOX (SILVER)

Installs into tabletop
Convenient access to cable ends or fixed connectors
Modular configuration: more room for additional connectors
Clear brushed aluminum finish (“Silver”)
Simple, cost-effective interconnect solution
Sold as an empty unit (pre-configured units such as CNK240S, CNK260S are also available)
23 Slots available for Power, grommets, retaining brackets or Altinex CNK-IP Insert Plates
UL/cUL listed CN5008US power module available
As seen in the Altinex Table Top Interconnect Guide
Downloadable cutout template available
Ten year warranty

SKU: CNK200S Categories: Cable Nooks, Furniture

CNK200S Overview

The CNK200S Cable Nook provides a simple yet effective way of hiding and storing multimedia cables and fixed connectors. The cables remain connected to a presentation system, enabling the user to gain easy access to them and for connection to video, audio, and other media sources needed.

Summary

Designed for boardrooms and conference rooms, the Modular Cable Nook provides a simple, effective way of hiding and/or storing multimedia cables and connectors. The cables remain connected to a presentation system, enabling the user to access connections to video, audio, and other media sources.

The Modular Cable Nook uses a trapdoor type half-moon lid that remains flush with the table when not in use. To access the cables or connectors, simply lift the lid and pull the ends out, or plug cables into any installed fixed connectors. The lid closes easily even with several cables in use. After the presentation, the cable ends are returned to the Cable Nook for safe storage.

Cables feed through the Cable Nook to the underside of the table, enabling connection to the presentation system. The weight of the cables helps to feed the slack through the unit and the cable ends are kept from falling by a special adjustable retaining bracket. The bracket uses rounded edges to prevent kinking and is adjustable to both height and depth.

A variety of accessories is available for the Modular Cable Nook, including power outlets, fixed connectors, and snap-in port panels.

Also available with a Black brushed aluminum finish as the CNK200.

For a smaller, compact version check out the Cable-Nook Jr.® CNK221. Available in black and silver.

Also available is our full range of retractable cables designed specifically for the Cable-Nook® and Cable-Nook Jr.®

Important: The CNK200S comes as an empty box; accessories must be ordered separately to provide a complete solution. 23 slots are available for accessories.

This product is protected by D465201 patent.

Technical Specifications

GENERAL	MECHANICAL
Compatibility	Hole Sets: 23
Cable-Nook Standard and Customizable Plates: CN5000 Series, CNK-IP-100 Series	Minimum Table Thickness: 0.5in (13mm)
Snap-In Connectors: All ALTINEX Snap-In Connectors	Maximum Table Thickness: 3.5in (89mm)
	Housing Dimensions
	Height: 4.7in (119mm)
	Width: 6.0in (153mm)
	Depth: 4.7in (119mm)
	Bezel Dimensions (surface)
	Width: 7.8in (200mm)
	Depth: 6.5in (166mm)
	Color: Clear Brushed Aluminum
	Material: Aluminum
	T° Operating: 10°C-35°C
	T° Maximum: 50°C
	Humidity: 90% non-condensing
	MTBF (calculations): 40,000hrs (min.)
ACCESSORIES INCLUDED
Mounting Hardware: (2) thumb screws, (2) mounting brackets

Application Diagram

Dimensions

Related Products

CNK Optional Accessories

The Cable-Nook has 23 slots in the installed bracket/plate shelf. Order up to the number of accessories as can be accommodated by the 23-slot shelf.

Each accessory comes with its own retaining screws.

(Note: These accessories are not compatible with Decora style)

CN5008US

Two standard AC power outlets for U.S. , Canada , Mexico , and Japan . Comes with 6 ft/1.8 m cable terminated with a single male plug. Covers 6 slots.

CN5003UK

One AC power outlet for usage in U.K, Singapore , and Hong Kong . Comes with 6 ft/1.8 m cable terminated with a male plug. Covers 11 slots..

CN5005EU

One AC power outlet for usage in Continental Europe, including Germany, France, Italy, Spain, et al. Comes with 6 ft/1.8 m cable terminated with a male plug. Covers 11 slots.

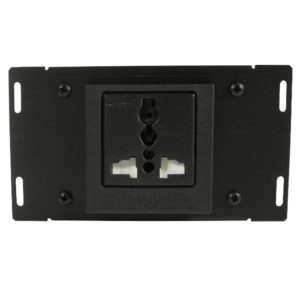

CN5006IN

One AC power outlet for usage in India. Comes with 8 ft./2.5 m power cord.

CNK-IP-101

Insert plate with 6 empty ports for Snap-in Connectors . Covers 8 slots. See Snap-In Cables page.

CN5013EP_full_small

CN5013EP

Insert plate with three empty snap-in ports. Covers 4 slots. See Snap-In Cables page.

CN5014AV

Insert plate with 15-pin HD female and 3.5 mm female connectors. Includes 6 ft/1.8 m cable with male ends. Covers 4 slots.

CN5015AV

Insert plate with Digital video (HDMI F) and 3.5 mm female connectors. Includes 6 ft/1.8 m cable with male ends. Covers 4 slots.

CN5016AV

Insert plate with 2 empty port for D-Sub connectors.

CN5010RB

These brackets can be added to the Cable-Nook, and adjusted to catch cable ends of varying widths. The shelf itself can be adjusted to different depths inside the box. Comes with 5 brackets and 10 retaining screws. Each bracket covers 1 slot.

CN5020RG

These grommet plates are designed to provide easy cable retention within the Cable Nook. Contains 4 plates with retaining bushings and caps for 6 openings, along with screws for installation into the Cable Nook unit.

CN5021RG

These grommets are designed for use with dual (2) International Power Supplies and provide easy cable retention within the Cable Nook. Contains 2 plates with retaining bushings for 3 openings, and screws for connection into the Cable Nook unit.

CNK Optional Accessories – Decora style inserts

Decora style inserts are also offered for the Cable-Nook. To customize your CNK unit with Decora inserts, choose between the CNK-IP-210 or SP1104SC face plates (shown below) and insert any of the CNK-IP-2xx Decora inserts in the face plate openings.

Each accessory comes with its own retaining screws.

	CNK-IP-210 3-position face plate for CNK200 for Decora style inserts. Use with all CNK-IP-2xx components
	SP1104SC Preconfigured face plate with CNK-IP-200 AC power and charging USB module.
	SP3504SC Standard Configuration Plate for CNK210 and CNK210S. CNK-IP-200 power module with UL/cUL dual AC & dual charging (3 amp total) USB ports, CNK-IP-212 module with panel mounted HDMI, VGA & dual 3.5mm audio jacks and CNK-IP-211 6-port Keystone snap in module preconfigured with 2x black RJ45 barrel connectors and 4 blank covers
	CNK-IP-200 Single gang Decora style power module with dual AC & dual charging (3 amp total) USB ports. UL/cUL listed.
	CNK-IP-211 6-port Keystone snap in module with 6 blank covers. Use with our Snap-In Connector Assemblies.
	CNK-IP-212 Hybrid Decora style plate with HDMI/VGA & audio. Pass through style.
	CNK-IP-21 3 Analog Decora style plate with dual VGA & audio. Pass through style.
	CNK-IP-21 4 Digital Decora style plate with dual HDMI & audio. Pass through style.
	CNK-IP-21 5 Decora style plate with 3x 0.625in (15.88mm) grommet holes. Split design for simple cable insertion.
	CNK-IP-21 6 Decora style plate with panel mounted VGA pass through and 4 Keystone snap in ports for use with our Snap-In Connector Assemblies.
	CNK-IP-217 Decora style plate with panel mounted HDMI pass through and 4 Keystone snap in ports for use with our Snap-In Connector Assemblies.
	Snap-In Connector Assemblies A wide range of Snap-In Connector Assemblies is available to configure your connections, exactly as you need them

CNK Pre-configured units

Pre-configured CNK200 Cable Nooks offer a wide variety of AV and network connections and require minimal assembly.

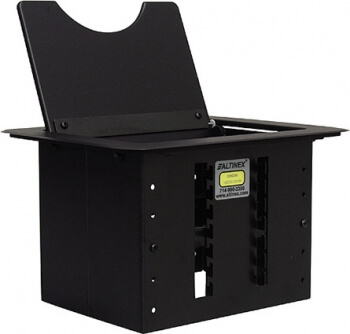

	CNK200 Empty Cable Nook enclosure with modular configuration. 23 slots available for power, grommets, retaining brackets, or Altinex CNK-IP insert plates.
	CNK210 Pre-configured CNK200 Cable-Nook with SP3504SC Decora Insert plate. Dual US AC power, Dual charging 5VDC USB Ports (3 Amps total), HDMI, VGA & Audio and 2 RJ45 Network port pass thru connectors with 4 empty snap-in ports to use any of our CM series snap-in assemblies.
	CNK210S Identical to the CNK210 but with a clear brushed (“Silver”) finish for the bezel.

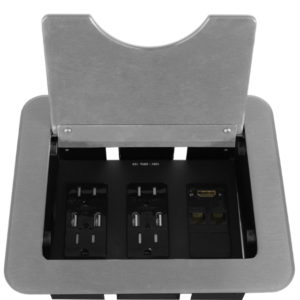

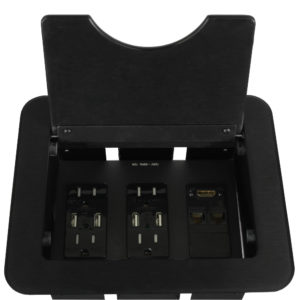

	CNK212 Complete CNK200 Cable Nook, Black Brushed Aluminum Finish with CNK-IP-210, 2X CNK-IP-200, 1X CNK-IP-217, 2X SN1318-RJ45-B
	CNK212S Identical to the CNK212 but with a clear brushed (“Silver”) finish for the bezel.
	CNK240 Pre-configured CNK200 Cable-Nook with US Power module (CN5008US) and Retaining Brackets (CN5010RB).
	CNK240S Pre-configured CNK200S Cable-Nook with US Power module (CN5008US) and Retaining Brackets (CN5010RB).
	CNK260 Pre-configured CNK200 Cable-Nook with US Power module (CN5008US) and Retaining Grommets (CN5020RG).
	CNK260S Pre-configured CNK200S Cable-Nook with US Power module (CN5008US) and Retaining Grommets (CN5020RG).
