CN5020RG

RETAINING GROMMET FOR CABLE NOOK

  • Used with CNK200
  • Openings for 4 cable retainers with International Power cords or 6 cable retainers with US Power cords
  • 0.45 inch opening for cable
  • Slide in Open/Closed bushing
  • Made out of black anodized aluminum
  • RoHS compliant
SKU: CN5020RG Category:

  CN5020RG Overview

The CN5020RG is designed to provide easy cable retention within CNK200 series table top units.

  Summary

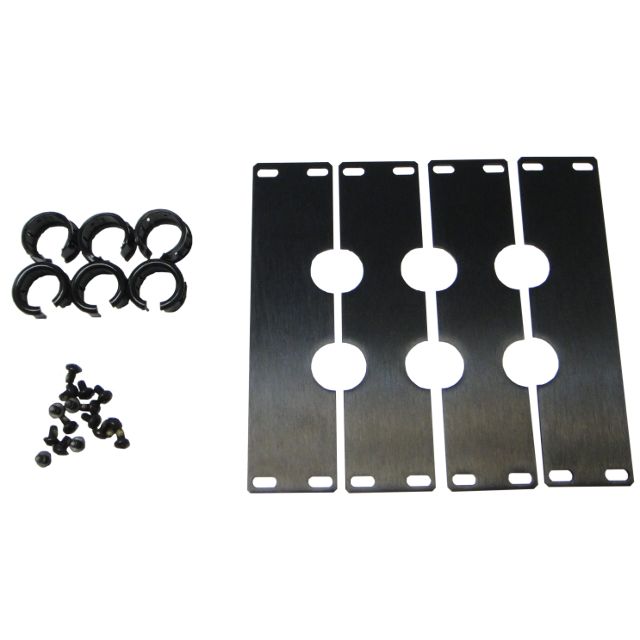

The CN5020RG is designed to provide easy cable retention within CNK200 series table top units. The CN5020RG contains 4 plates, 6 retaining bushings, 6 cover caps (in case opening is not used), and screws for connection into the CNK unit. CN5020RG is designed to be used with US and international power panels.

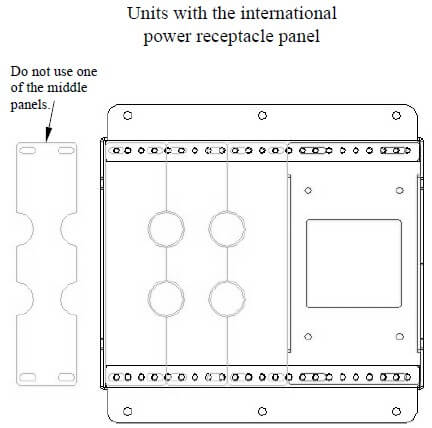

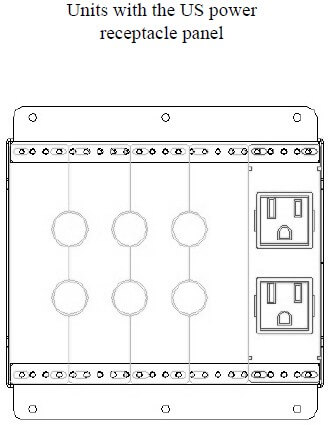

The US power plate configuration includes 4 panels (16 mounting screws) with 6 openings for cables. The international option includes 3 panels (12 mounting screws) with 4 openings for cables.

The cable retaining bushings slide into the openings after the plates are installed into the CNK. The bushing slides in and then snaps into place without the need for tools.

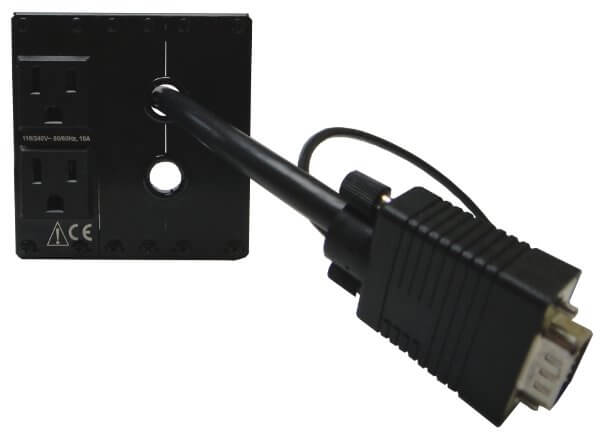

The sample image shown below includes partial of a CN5020RG with a cable and a CN5008US (Dual AC power module).

  Application Diagram
