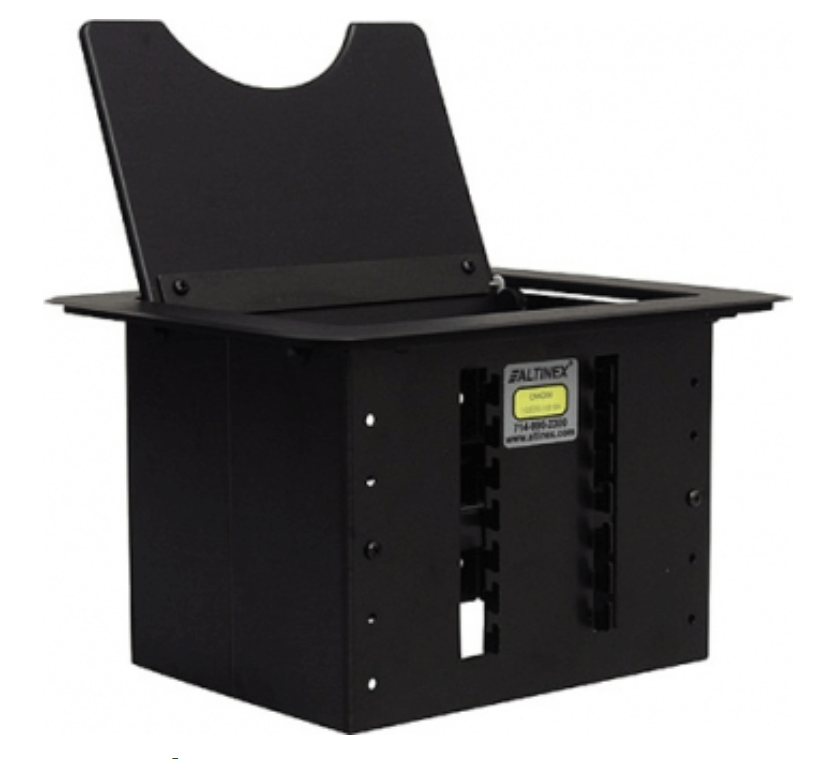

CNK200
CABLE-NOOK® MODULAR TABLETOP INTERCONNECT BOX (BLACK)
- Installs into tabletop
- Convenient access to cable ends or fixed connectors
- Modular configuration: more room for additional connectors
- Black brushed aluminum finish
- Simple, cost-effective interconnect solution
- Sold as an empty unit (pre-configured units such as CNK240, CNK260 are also available)
- 23 Slots available for Power, grommets, retaining brackets or Altinex CNK-IP Insert Plates
- UL/cUL listed CN5008US power module available
- As seen in the Altinex Table Top Interconnect Guide
- Downloadable cutout template available
- Ten year warranty
CNK200 Overview
The CNK200 Cable Nook provides a simple yet effective way of hiding and storing multimedia cables and fixed connectors. The cables remain connected to a presentation system, enabling the user easy access to them and for connection to video, audio, and other media sources needed.
Summary
Designed for boardrooms and conference rooms, the Modular Cable Nook provides a simple, effective way of hiding or storing multimedia cables and connectors. The cables remain connected to a presentation system, enabling the user to access connections to video, audio, and other media sources.
The Modular Cable Nook uses a trapdoor type, half-moon lid that remains flush with the table when not in use. To access the cables or connectors, simply lift the lid and pull the ends out, or plug cables into any installed fixed connectors. The lid closes easily even with several cables in use. After the presentation, the cable ends are returned to the Cable Nook for safe storage.
Cables feed through the Cable Nook to the underside of the table, enabling connection to the presentation system. The weight of the cables helps to feed the slack through the unit and the cable ends are kept from falling by a special adjustable retaining bracket. The bracket uses rounded edges to prevent kinking and is adjustable to both height and depth.
A variety of accessories is available for the Modular Cable Nook, including power outlets, fixed connectors, and snap-in port panels.
Also available with a clear brushed (“Silver”) aluminum finish as the CNK200S:
For a smaller, compact version check out the Cable-Nook Jr.® CNK221. Available in black and silver.
Also available is our full range of retractable cables designed specifically for the Cable-Nook® and Cable-Nook Jr.®
Important: The CNK200 comes as an empty box; accessories must be ordered separately to provide a complete solution. 23 slots are available for accessories.
This product is protected by the D465201 patent.
Technical Specifications
Table 1: CNK200 General
|
Features/Description |
CNK200 |
Inputs |
|
| Video/Audio | N/A |
Outputs |
|
| Video/Audio | N/A |
Compatibility |
|
| Cable Nook Standard and Customizable Plates | CN5000 Series, CNK-IP-200 Series |
| Snap-In Connectors | All ALTINEX Snap-In Connectors |
Accessories Included |
|
| Mounting Hardware | Thumb Screws (2), Mounting Brackets (2) |
Table 2: CNK200 Mechanical
|
Mechanical |
CNK200 |
| Hole Sets | 23 |
| Minimum Table Thickness | 0.5 in (13 mm) |
| Maximum Table Thickness | 3.5 in (89 mm) |
Housing Dimensions |
|
| Height | 4.7 in (119 mm) |
| Width | 6.0 in (153 mm) |
| Depth | 4.7 in (119 mm) |
Bezel Dimensions (surface) |
|
| Width | 7.9 in (200 mm) |
| Depth | 6.5 in (166 mm) |
| Color | Black |
| Material | Aluminum |
| T° Operating | 10°C-35°C |
| T° Maximum | 50°C |
| Humidity | 90% non-condensing |
| MTBF (calculations) | 40,000 hrs (min.) |
Application Diagram
Dimensions
